VSF Topology : Chain
VSF Status : Active
Uptime : 0d 3h 22m
VSF MAD : None
VSF Port Speed : 1G
Software Version : WC.16.03.0000x
Mbr
ID MAC Address Model Pri Status
--- ------------- -------------------------------------- --- ---------------
*1 b05ada-961100 Aruba JL253A 2930F-24G-4SFP+ Switch 200 Commander
2 b05ada-9721c0 Aruba JL260A 2930F-48G-4SFP Switch 150 Standby

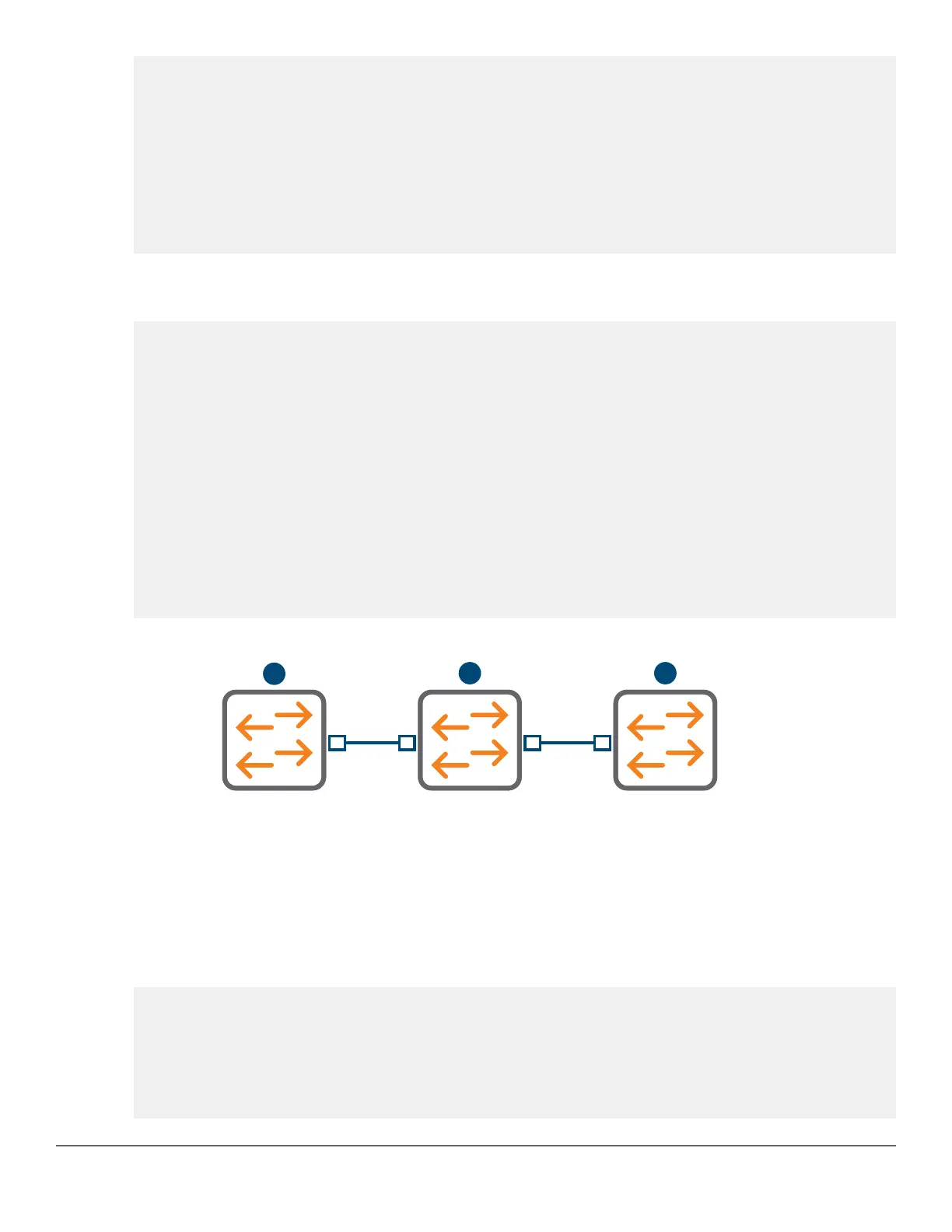

5. Configure link 2 of the newly joined member and connect switch 3 with default configuration, to the link 2 of
member 2 (Standby). The new member will automatically reboot and join the stack as member 3.
Switch# show vsf
VSF Domain ID : 3144
MAC Address : b05ada-961103
VSF Topology : Chain
VSF Status : Active
Uptime : 0d 3h 22m
VSF MAD : None
VSF Port Speed : 1G
Software Version : WC.16.03.0000x
Mbr
ID MAC Address Model Pri Status
--- ------------- -------------------------------------- --- ---------------
*1 b05ada-961100 Aruba JL253A 2930F-24G-4SFP+ Switch 200 Commander
2 b05ada-9721c0 Aruba JL260A 2930F-48G-4SFP Switch 150 Standby
3 b05ada-972200 Aruba JL254A 2930F-48G-4SFP+ Switch 128 Member
6. All switches can be now interconnected and powered on.
With provisioning:
1. Do not connect the ports initially. Since the ports are Ethernet ports, connecting them in a ring topology can
cause loops. Note down the J-number & MAC address of each switch. The J-number is available on the front
panel of the switch while the MAC address is available on the back panel of the switch.
2. Connect to the console of the member intended to be the commander (member 1 in this example). To enable
VSF on the member, execute the following commands:
Switch# configure
Switch(config)# vsf member 1 priority 200
Switch(config)# vsf member 1 link 1 22
All configuration on this port has been removed and port is placed in VSF mode.
Switch(config)# vsf member 1 link 2 23
All configuration on this port has been removed and port is placed in VSF mode.
Switch(config)# vsf enable domain 3144
To enable VSF, the REST interface will be disabled.
Chapter 20 Virtual Switching Framework (VSF) 697
