HP Integrity BL870c User Manual

Table 2-2 Console Serial Port Pinouts (continued)
Signal DescriptionPin Number
Requests to send7
Clears to send8
Not used9
MP LAN Port

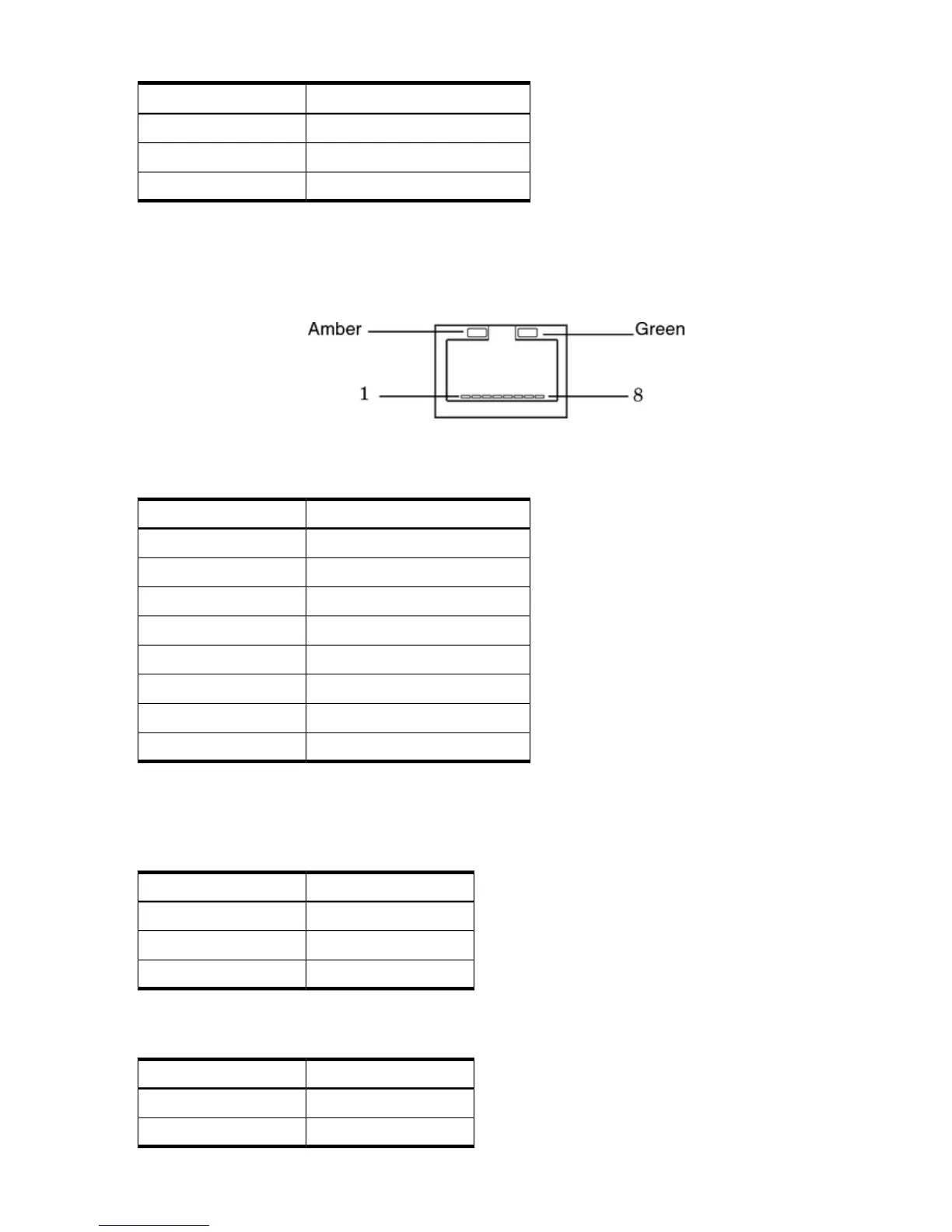

Figure 2-6 shows the MP LAN port connector pins and LEDs.
Figure 2-6 MP LAN Port
Table 2-3 maps the MP LAN port connector pin numbers to their signal descriptions.
Table 2-3 MP LAN Port Pinouts
Signal DescriptionPin Number
TXP1
TXN2
RXP3
Not used4
Not used5
RXN6
Not used7
Not used8
MP LAN LEDs
Table 2-4 lists the MP LAN link status LEDs and states.
Table 2-4 MP LAN Link Status LEDs
LED StateLink State
Blinking greenActivity
Solid greenLink with no activity
OffNo link
Table 2-5 lists the MP LAN link speed LEDs and states.
Table 2-5 MP LAN Link Speed LEDs
LED StateLink Speed
Solid amber100 Mb/s
Off10 Mb/s
36 Ports and LEDs
