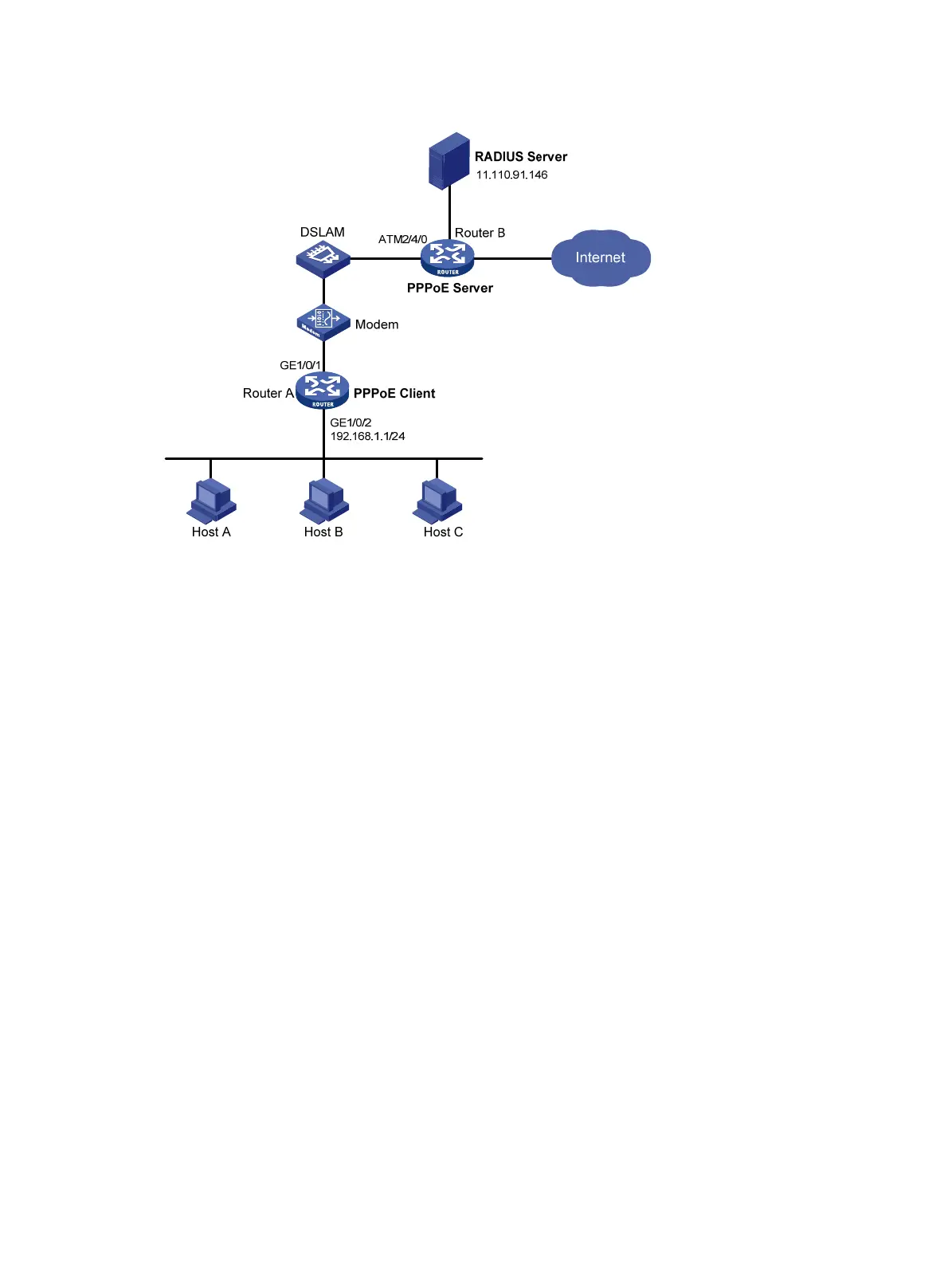

Figure 21 Network diagram

Configuration procedure

1. Configure Router A as a PPPoE client:

# Create dialer access group 1 and configure a dial access control rule for it.

<RouterA> system-view

[RouterA] dialer-group 1 rule ip permit

# Enable bundle DDR on interface Dialer 1.

[RouterA] interface dialer 1

[RouterA-Dialer1] dialer bundle enable

# Associate Dialer 1 with dialer access group 1.

[RouterA-Dialer1] dialer-group 1

# Configure Dialer 1 to obtain an IP address through PPP negotiation.

[RouterA-Dialer1] ip address ppp-negotiate

# Configure the PPPoE session to operate in permanent mode.

[RouterA-Dialer1] dialer timer idle 0

# Configure the PAP username and password.

[RouterA-Dialer1] ppp pap local-user user1 password simple 123456

[RouterA-Dialer1] quit

# Configure a PPPoE session.

[RouterA] interface gigabitethernet 1/0/1

[RouterA-GigabitEthernet1/0/1] pppoe-client dial-bundle-number 1

[RouterA-GigabitEthernet1/0/1] quit

# Configure an IP address for the LAN interface.

[RouterA] interface gigabitethernet 1/0/2

[RouterA-GigabitEthernet1/0/2] ip address 192.168.1.1 255.255.255.0

[RouterA-GigabitEthernet1/0/2] quit
