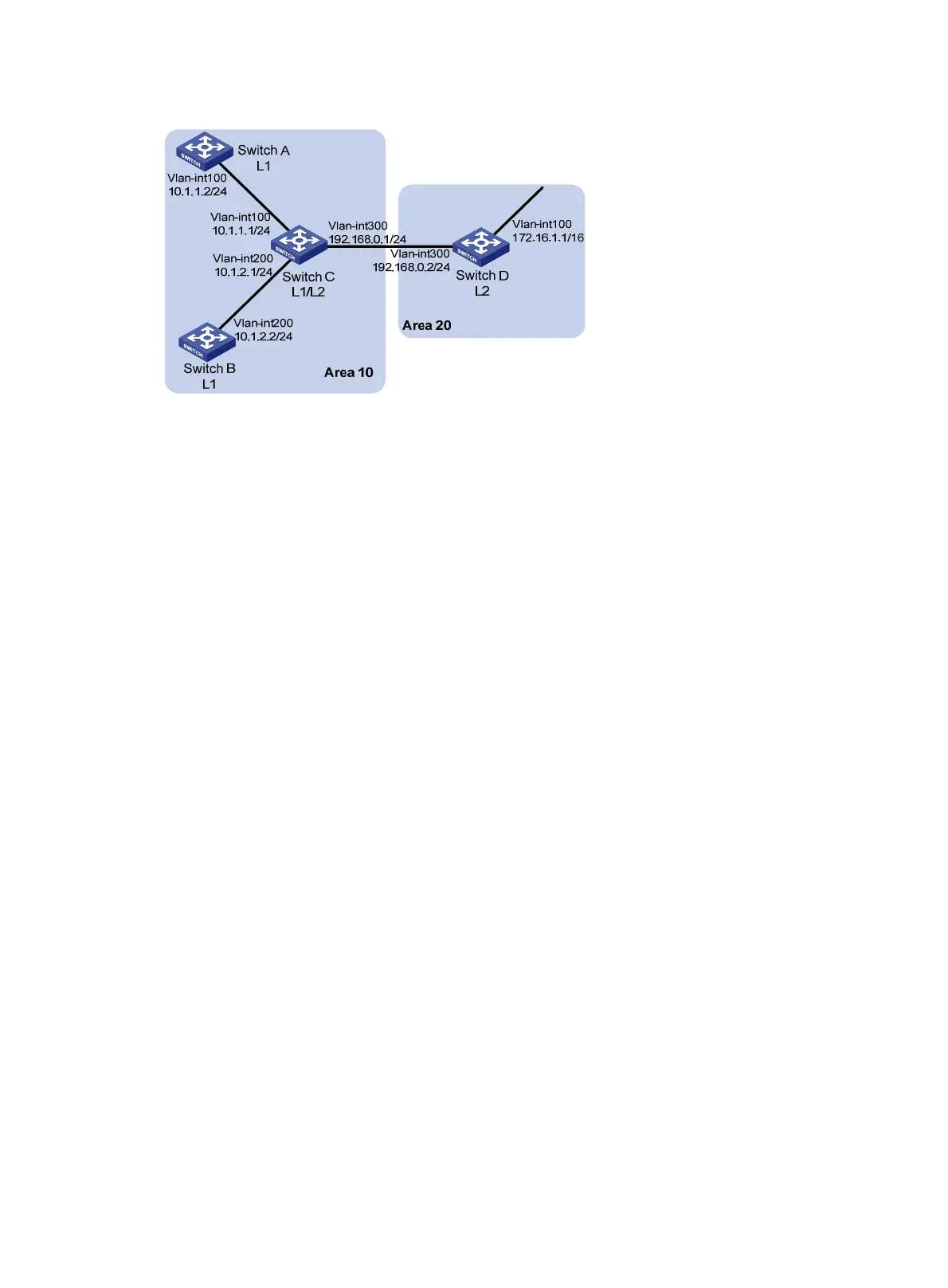

Figure 40 Network diagram

Configuration procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure IS-IS:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] isis 1

[SwitchA-isis-1] is-level level-1

[SwitchA-isis-1] network-entity 10.0000.0000.0001.00

[SwitchA-isis-1] quit

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] isis enable 1

[SwitchA-Vlan-interface100] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] isis 1

[SwitchB-isis-1] is-level level-1

[SwitchB-isis-1] network-entity 10.0000.0000.0002.00

[SwitchB-isis-1] quit

[SwitchB] interface vlan-interface 200

[SwitchB-Vlan-interface200] isis enable 1

[SwitchB-Vlan-interface200] quit

# Configure Switch C.

<SwitchC> system-view

[SwitchC] isis 1

[SwitchC-isis-1] network-entity 10.0000.0000.0003.00

[SwitchC-isis-1] quit

[SwitchC] interface vlan-interface 100

[SwitchC-Vlan-interface100] isis enable 1

[SwitchC-Vlan-interface100] quit

[SwitchC] interface vlan-interface 200

[SwitchC-Vlan-interface200] isis enable 1

[SwitchC-Vlan-interface200] quit

[SwitchC] interface vlan-interface 300
