411

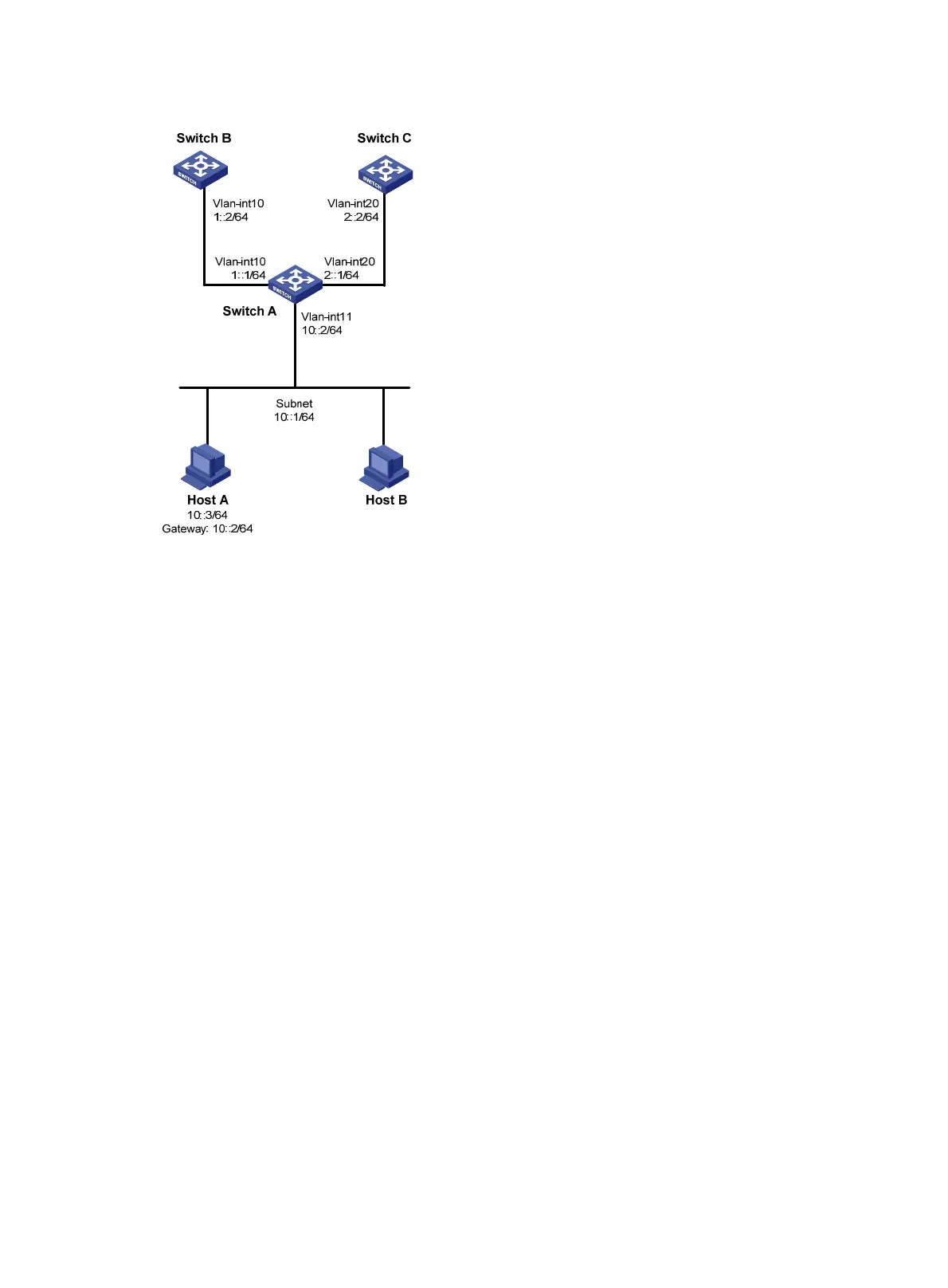

Figure 100 Network diagram

Configuration procedure

1. Configure Switch A:

# Create VLAN 10 and VLAN 20.

<SwitchA> system-view

[SwitchA] vlan 10

[SwitchA-vlan10] quit

[SwitchA] vlan 20

[SwitchA-vlan20] quit

# Configure RIPng.

[SwitchA] ripng 1

[SwitchA-ripng-1] quit

[SwitchA] interface vlan-interface 10

[SwitchA-Vlan-interface10] ipv6 address 1::1 64

[SwitchA-Vlan-interface10] ripng 1 enable

[SwitchA-Vlan-interface10] quit

[SwitchA] interface vlan-interface 20

[SwitchA-Vlan-interface20] ipv6 address 2::1 64

[SwitchA-Vlan-interface20] ripng 1 enable

[SwitchA-Vlan-interface20] quit

# Configure ACL 3001 to match TCP packets.

[SwitchA] acl ipv6 number 3001

[SwitchA-acl6-adv-3001] rule permit tcp

[SwitchA-acl6-adv-3001] quit

# Configure Node 5 for policy aaa to forward TCP packets to next hop 1::2.

[SwitchA] ipv6 policy-based-route aaa permit node 5

[SwitchA-pbr6-aaa-5] if-match acl 3001

[SwitchA-pbr6-aaa-5] apply next-hop 1::2
