EDGE Pro Ti CNC Instruction Manual 807660 101
Maintenance and Diagnostics
Diagnostic tests
Diagnostic tests
Note: A test kit (428057) is required to perform the following diagnostic tests.
Machine interface tests
If you are using an EDGE Pro Ti CNC, you can perform diagnostic tests with the following connectors and Phoenix
software to test the interface ports on the CNC:
LAN and Hypernet
Serial interface, for RS-422 only
•USB
•E-stop (
Blue, for dry mode contacts; yellow, for sourced mode contacts)
I/O (Green and red for dry mode contacts; orange and white for sourced mode contacts)
Lifter and plasma interfaces
To begin an interface test:
1. From the Main screen, select Setups > Diagnostics > Machine Interface.
2. Enter the Machine password.
3. On the Machine Interface screen, choose the connector you want to test on the image of the CNC.
4. Follow the instructions in the sections below and on the individual test screens.

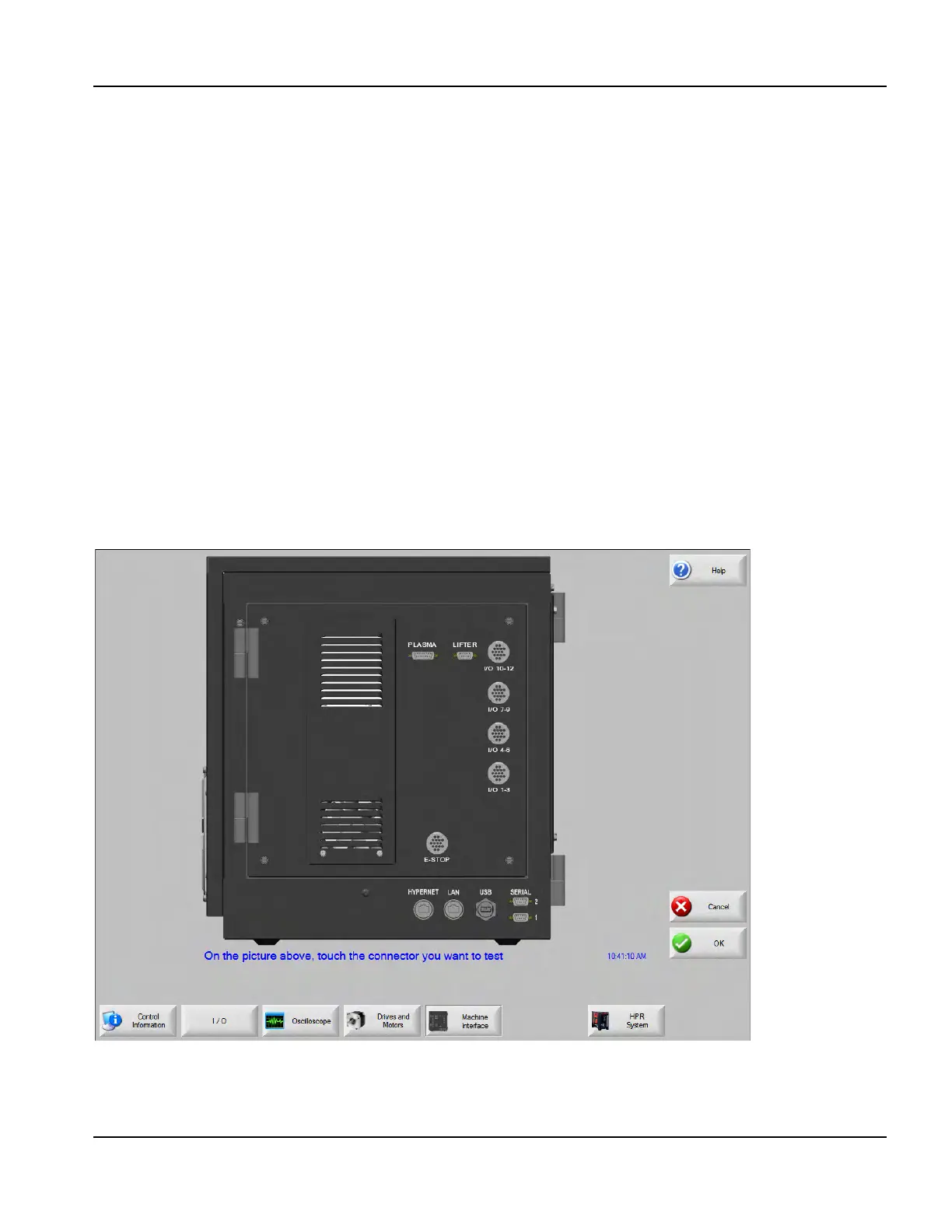

Figure 54 Machine interface test screen
