EDGE Pro Ti CNC Instruction Manual 807660 91
Installation
24 VDC auxiliary power connector
24 VDC auxiliary power connector
The cable for the 24 V auxiliary power cable must be assembled to suit the needs of the system. Use the following
information to order the connector for this cable then add the cable and cable shield.

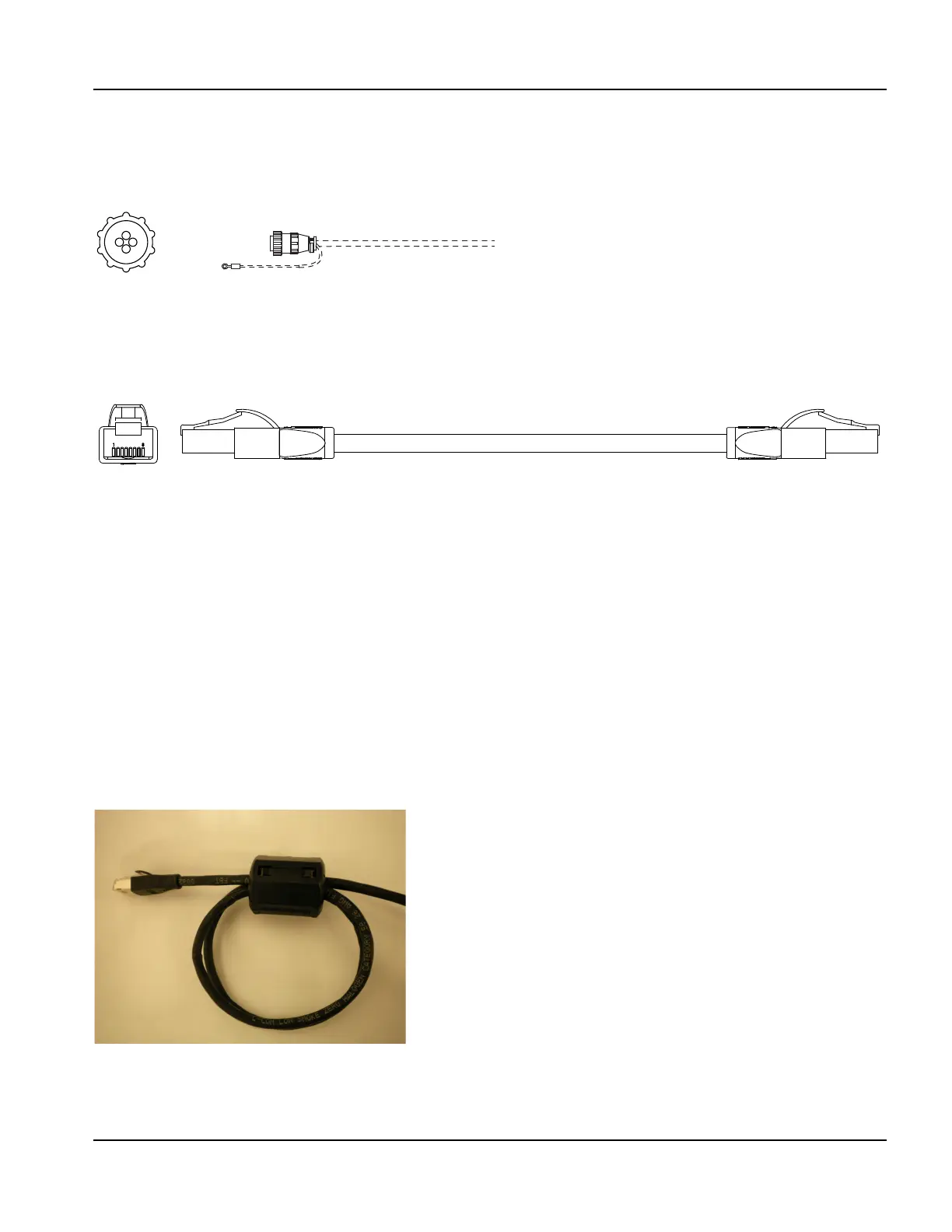

Figure 51 24 VDC auxiliary power connector and cable
Hypernet and LAN cable
Figure 52 Hypernet and LAN cable
Use the following information to order the Hypernet or LAN cable.
Note: In some cases, EMI noise can interfere with LAN communication. If this happens, install an EMI ferrite filter
on the LAN cable to suppress both differential and common-mode EMI. Use one of the following filters:
•
Hypertherm 209195
• Fair-Rite 0431164181
Figure 53 Ferrite filter installed on a Hypernet or LAN cable
Part Number Description
428047 24 VDC auxiliary power cable connector
Part Number Length Part Number Length
223381 0.3 m (1 ft) 223223 10.66 m (35 ft)
223382 0.6 m (2 ft) 223008 15.25 m (50 ft)
223380 1.5 m (5 ft) 223099 22.86 m (75 ft)
223212 3.2 m (10 ft) 223100 30.48 m (100 ft)
223222 6.08 m (20 ft) 223101 45.72 m (150 ft)
223119 7.62 m (25 ft) 223102 60.96 m (200 ft)
Connector
(428047)
Cable and cable shield provided and terminated by customer
1
4
23
