64 EDGE Pro Ti CNC Instruction Manual 807660
Installation
Motor connection
Axis configuration
The EDGE Pro Ti supports DC brush and brushless motors. Use the DIP switch on the Ti servo board (141281) to select
the type of motor for each axis. Verify that the axis number and type on the rear of the enclosure matches the number of
the axis on the DIP switch.

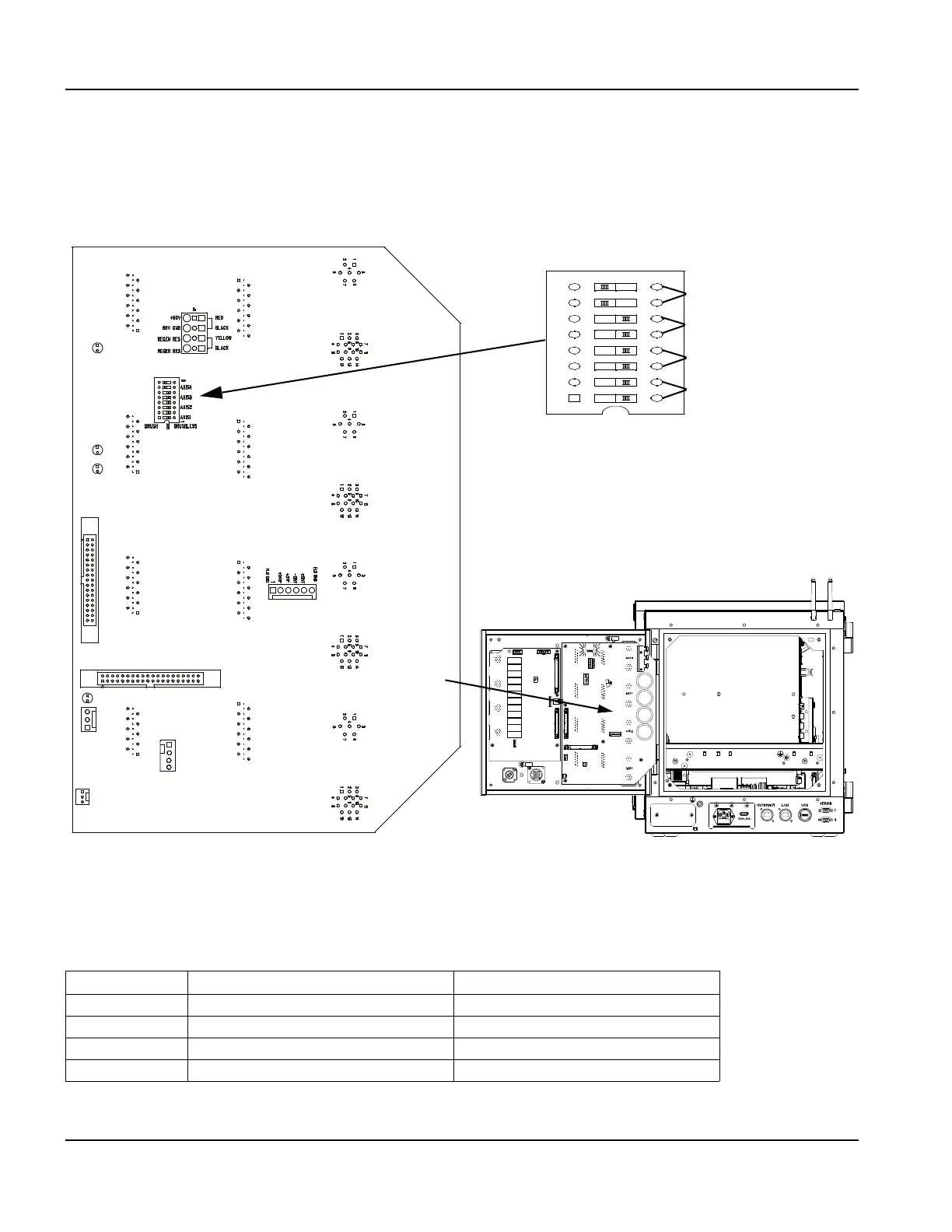

Figure 26 Axis configuration switch
In Phoenix software, the Drive Type parameter on the Axes Setup screen must be set to Current mode. For more
information, see the Phoenix Software Installation and Setup Guide (806410).
Table 8 Default axis assignments
Axes Axes Assignment Default motor type
1 Transverse or rail Brushless
2 Transverse or rail Brushless
3 Dual gantry Brushless
4THC Brush
Brushless
Brush
Axis 1
Axis 2
Axis 3
Axis 4 – lifter
Default settings on the DIP switch
