60 EDGE Pro Ti CNC Instruction Manual 807660
Installation
Emergency stop (E-stop) connection
E-stop test circuit

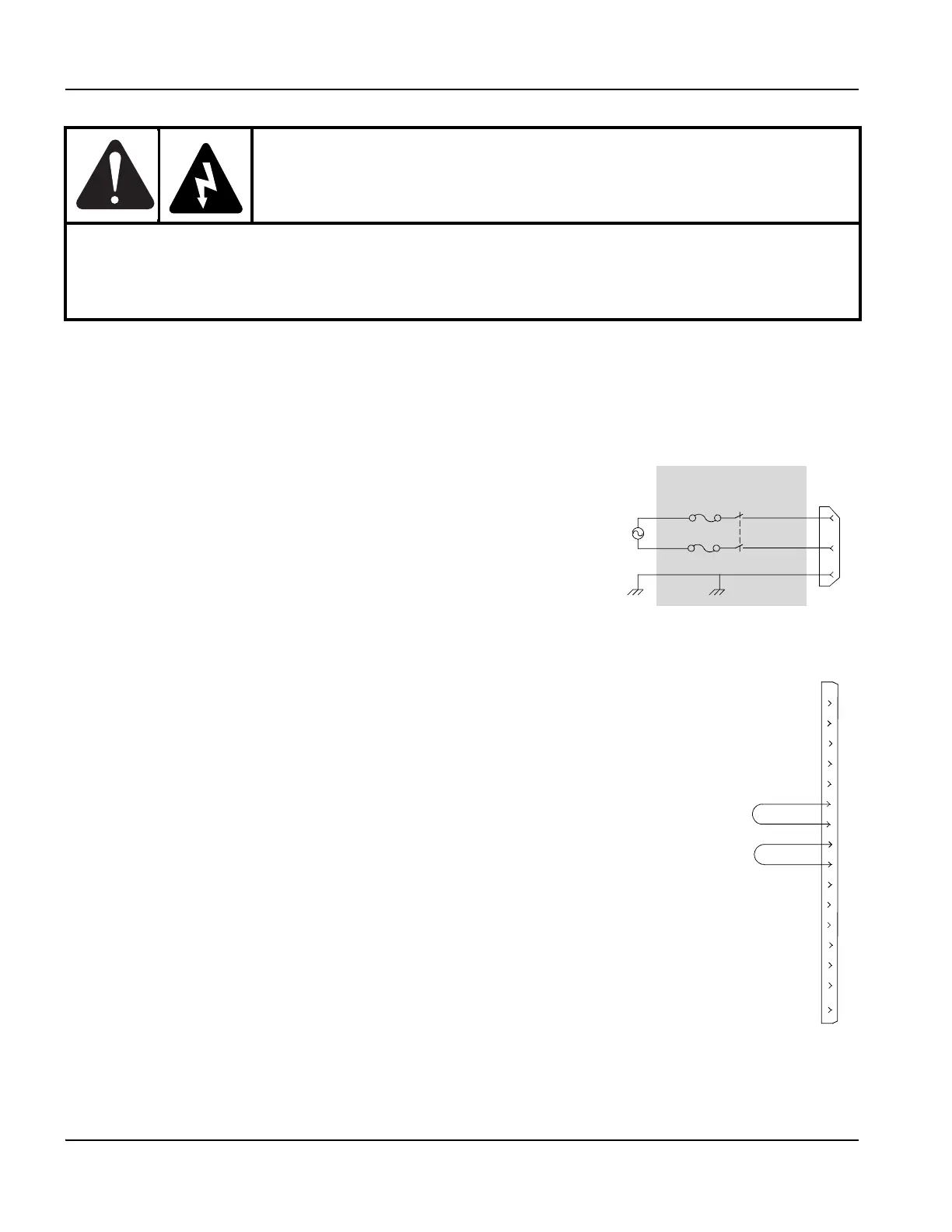

Figure 22 E-stop test circuit
WARNING!
This test circuit is designed for testing only and does not replace an approved E-stop implementation.
Use this test circuit with two jumpers to provide E-stop inputs that engage the motor drives.
Machinery is activated as soon as the jumpers are applied and can present a danger.
CPC
1
3
7
5
9
12
11
15
13
2
6
4
10
8
14
16
AC fused
disconnect
AC
Disconnect
16
This E-stop test circuit connects to the E-stop circuit within the EDGE
Pro Ti. The CPC for this test circuit connects to the E-stop connector on
the rear enclosure of the CNC.
