EDGE Pro Ti CNC Instruction Manual 807660 89
Installation
Lifter interface
Lifter interface cable
The lifter interface cable is a 9-pin D-sub cable that connects the lifter interface on the CNC to the Sensor Ti.

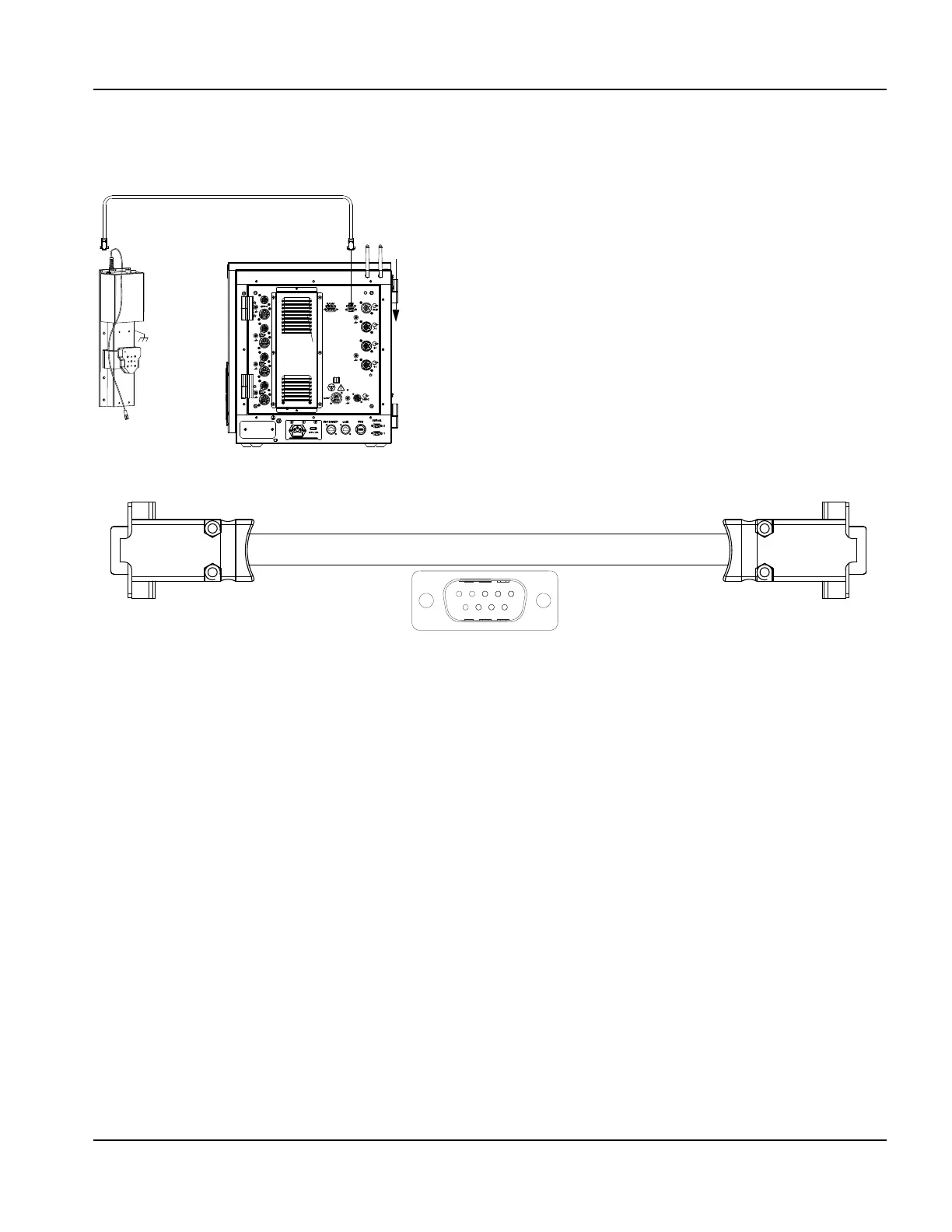

Figure 49 Lifter interface cable to the Sensor Ti
Figure 50 Lifter interface cable
Lifter cable
Sensor Ti
Diameter = 6.197 mm (0.244 in.)
Bend radius = 150 mm (6 in.)
1
9
5
6
