40 EDGE Pro Ti CNC Instruction Manual 807660
Installation
Mounting the CNC
Mounting hole patterns on the bottom of the CNC
The EDGE Pro Ti CNC has 10 mounting holes on the bottom of the enclosure for mounting the CNC to the cutting table.
Fasten the mounting screws through the holes that will provide the most stability for your CNC during the operation of
your table.

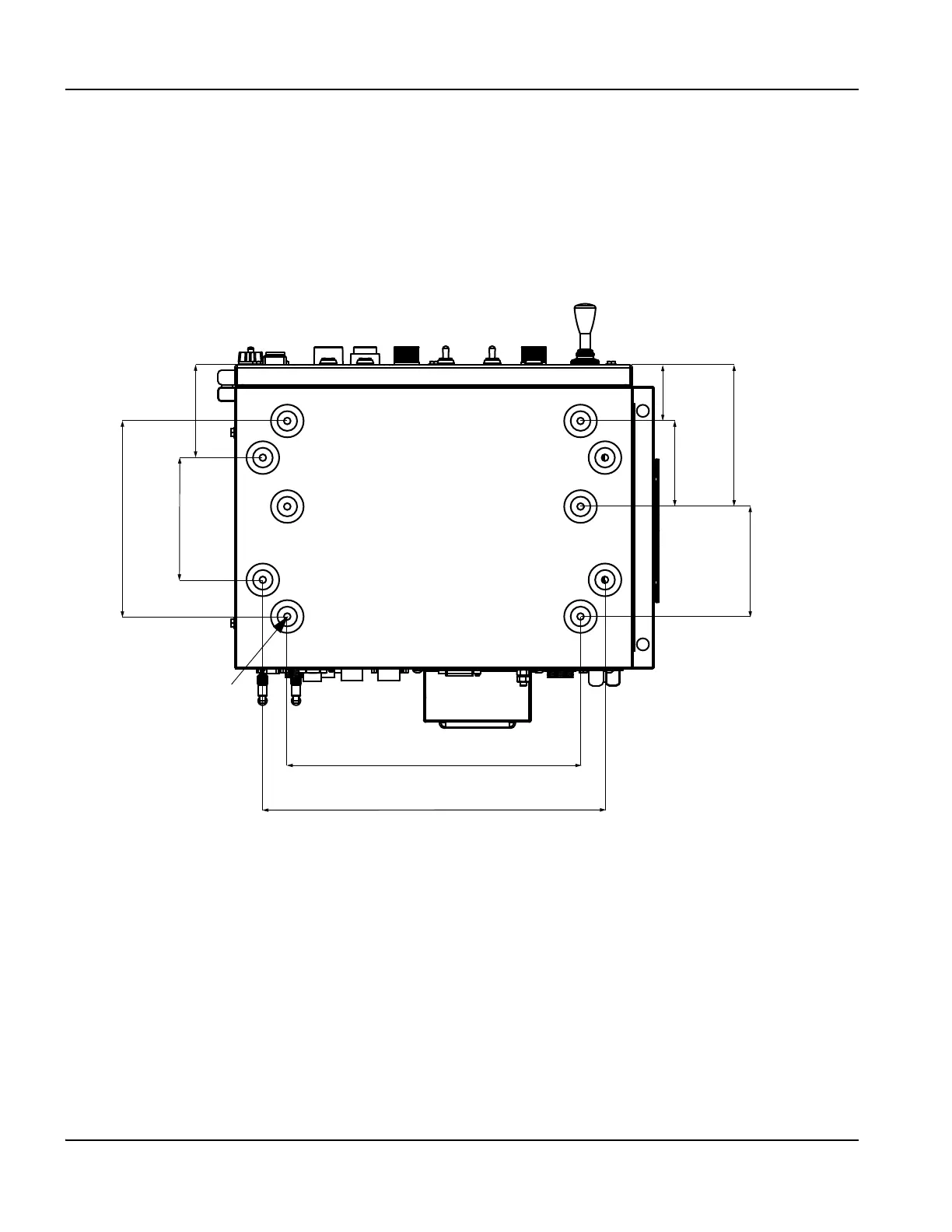

Figure 10 EDGE Pro Ti mounting hole pattern
Use M6 x 1 hardware.
(10 places)
Maximum length inside
enclosure must not exceed
7.8 mm (0.31 in.)
305 mm
(12 in.)
127 mm
(5 in.)
356 mm
(14 in.)
203 mm
(8 in.)
89 mm
3.5 in.
114 mm
3.7 in.
58 mm
2.29 in.
148 mm
5.8 in.
97 mm
(3.8 in.)
