EDGE Pro Ti CNC Instruction Manual 807660 35
Specifications
EDGE Pro Ti axis and I/O configuration
EDGE Pro Ti axis and I/O configuration
The EDGE Pro Ti interface offers 2 to 4 axes of motion control using internal motor drives with 12 inputs and 12 outputs.
This interface can be used to retrofit an existing system with the Edge Pro Ti interface.
The EDGE Pro Ti interface can be configured to supply encoder power at 5 VDC. For more information, See Ti I/O
circuits on page 75.
Table 2 EDGE Pro Ti part numbers

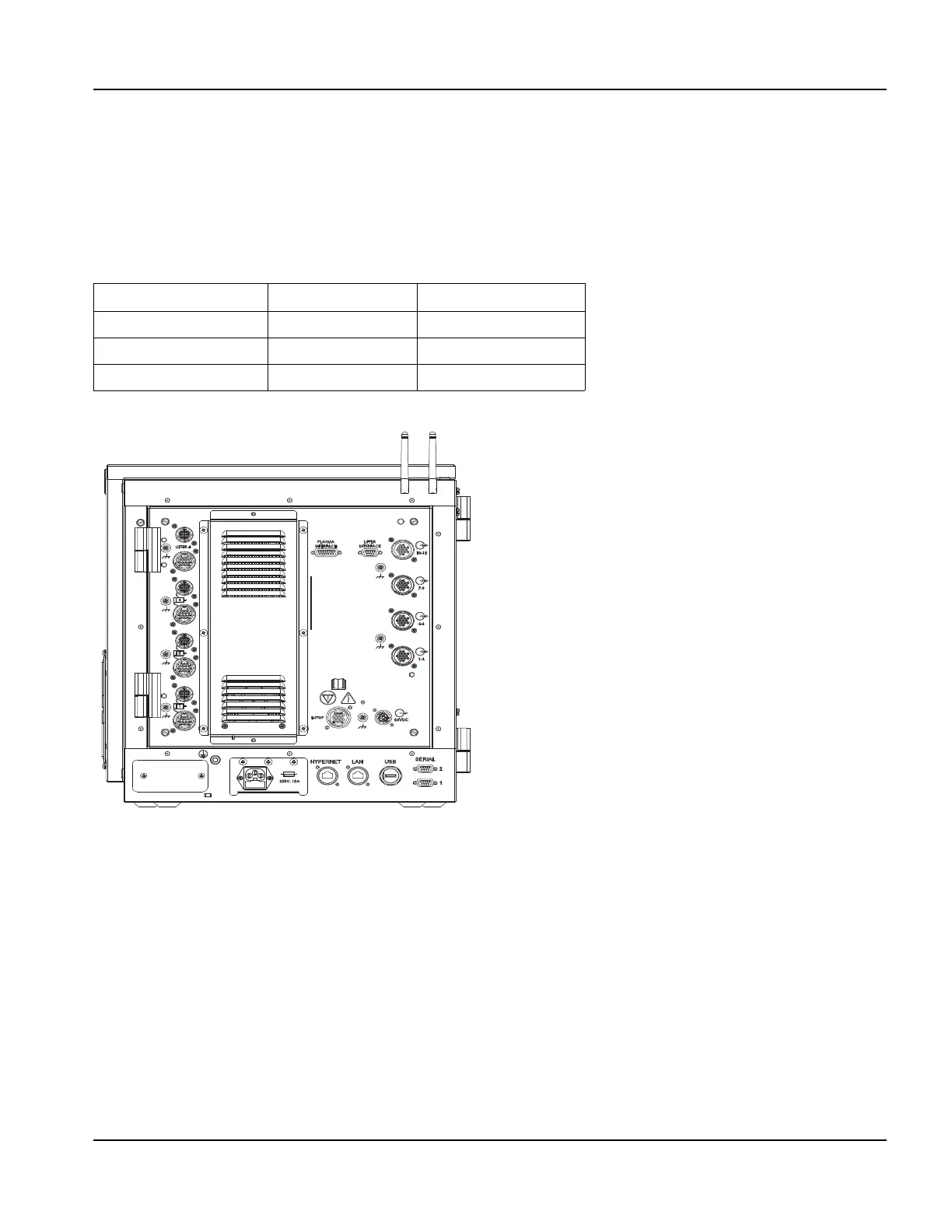

Figure 7 Rear panel of the EDGE Pro Ti CNC
Part Number Number of Axes Number of I/O
090136 2 12/12
090137 3 12/12
090138 4 12/12
