EDGE Pro Ti CNC Instruction Manual 807660 69
Installation
Encoder connection
Encoder cable

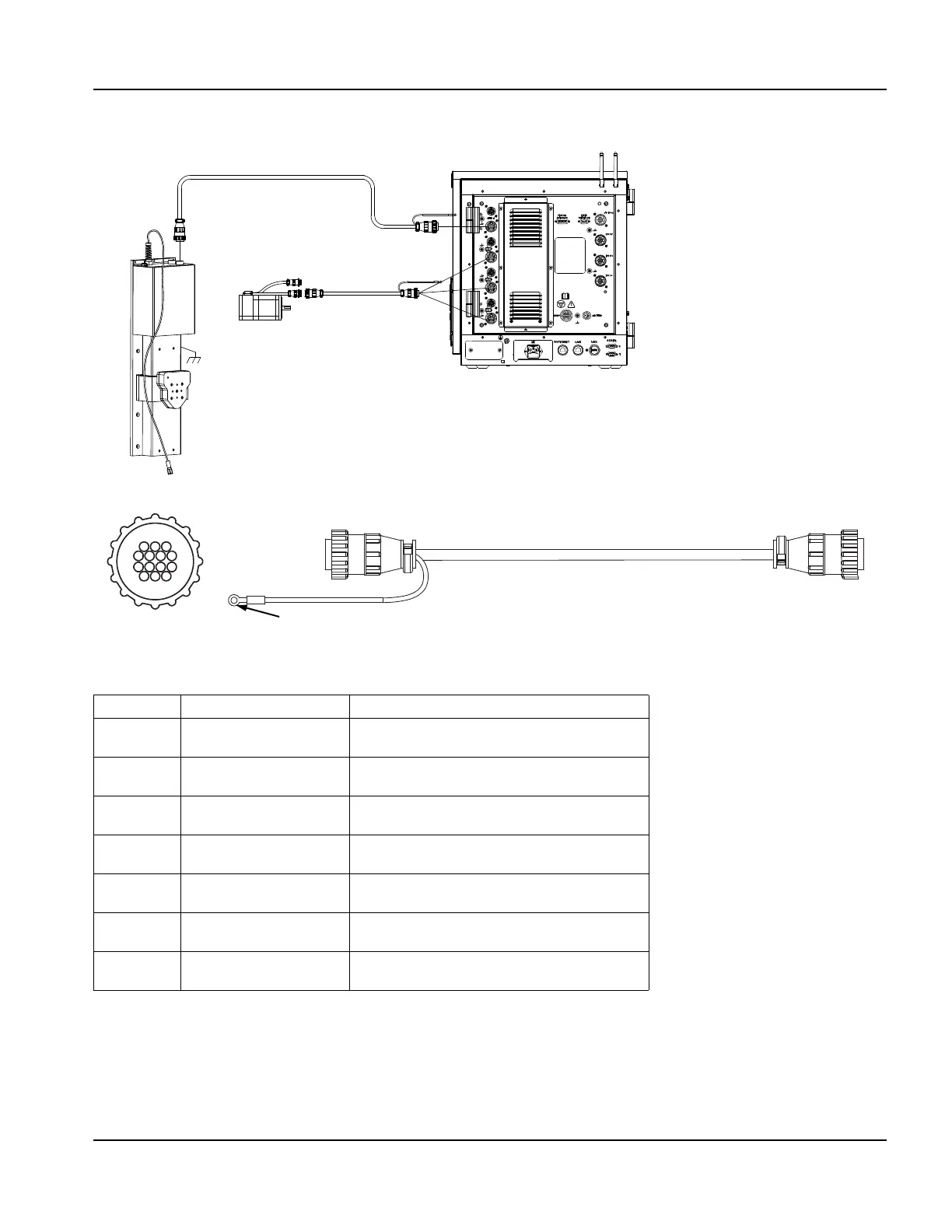

Figure 31 Encoder cable to axes
Figure 32 Encoder cable
Table 13 Pinouts for encoder cable
Pin no. Twisted pair colors Signal
1
2
Red
Black
Encoder +5 VDC
Encoder ground
3
4
White
Black
Channel A
Channel A-
5
6
Green
Black
Channel B
Channel B-
7
8
Blue
Black
Index
Index-
9
10
Yellow
Black
6 V Hall
Hall ground
11
12
Brown
Orange
Hall U
Hall V
13
14
White
Drain wire
Hall W
Shield
Encoder cable to
axes 1, 2, and 3
Encoder cable to
axis 4, lifter
Diameter = 9.753 mm (0.384 in.)
Bend radius = 150 mm (6.0 in.)
Connect to motor connector ground stud
1
14
