120 EDGE Pro Ti CNC Instruction Manual 807660
Maintenance and Diagnostics
Motherboard (141110)
Motherboard (141110)

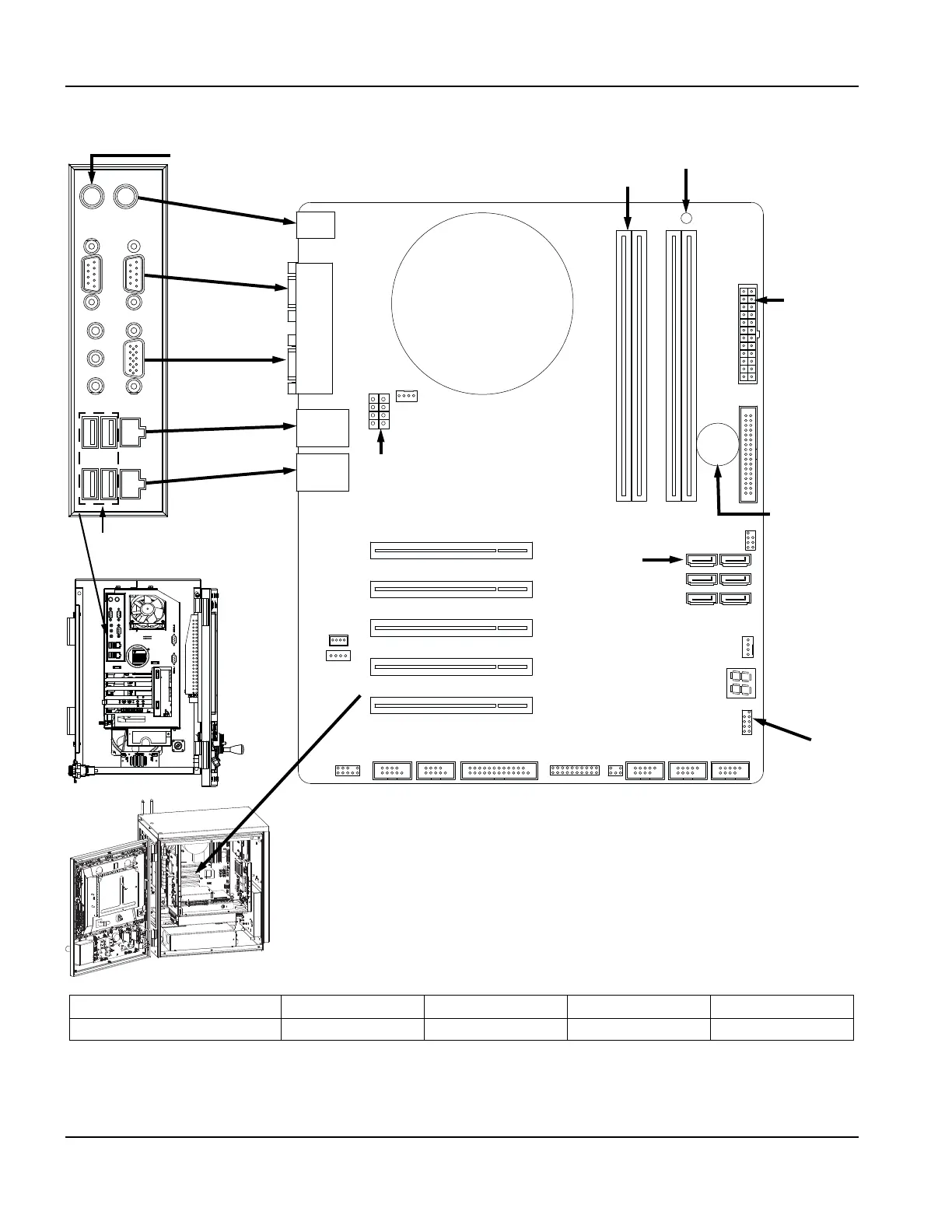

Figure 64 Motherboard
PCI slot 2 PCI slot 3 PCI slot 4 PCI slot 5
EDGE Pro Ti PCI boards Wireless None Utility/serial isolation MCC
PCI 3
PCI 4
PCI 5
PCI stack
Motherboard
ON/OFF
signals
POST display
(ready state is 00)
SATA
connector for
the hard drive
Battery for
CMOS
memory
ATX 12 V power connector
Chassis fan connector
CPU
DIMM1 – 1 GB RAM
ATX power
connector
PS/2 Keyboard
PS/2 Mouse
Serial ports
VGA port
LAN port
Hypernet port
USB ports
PCI 2
PCI 1
Power LED
