EDGE Pro Ti CNC Instruction Manual 807660 137
Maintenance and Diagnostics
4-axis DC servo board (141281)
4-axis DC servo board (141281)

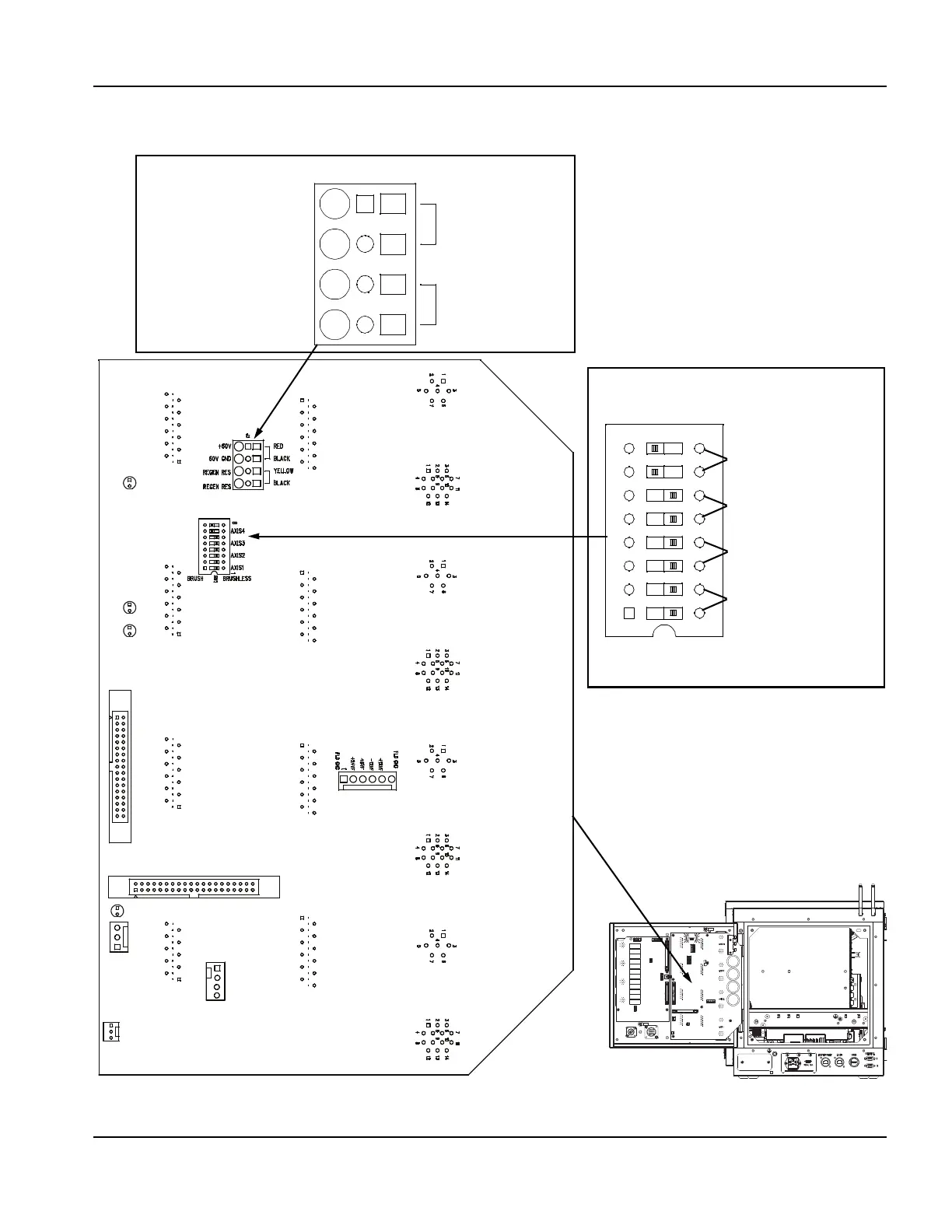

Figure 70 4-axis DC servo board
Axis 4 – Lifter
motor
connector
Axis 4 – Lifter
encoder
connector
Axis 3 motor
connector
Axis 3 encoder
connector
Axis 2 motor
connector
Axis 2 encoder
connector
Axis 1 motor
connector
Axis 1 encoder
connector
J5 To MCC board
J2 Power distribution
board
J6 To I/O board
J8 12 V field voltage for
external fan
Default settings for DIP switch
Axis 4 – Lifter
Axis 3
Axis 2
Axis 1
Brush
Brushless
1
8
Red
Black
Ye llo w
Black
+ 60 VDC
60 V ground
Regen resistor
Regen resistor
J3 Terminal block
Brake output
Axis 1, 2, 3 = dry contacts
Axis 4 – Lifter = 24 VDC
J7 Field
24 V out
J4 Clean 5 and 12
VDC in
