EDGE Pro Ti CNC Instruction Manual 807660 71
Installation
I/O connection
I/O connection
Install the I/O cables in the I/O connectors on the rear of the CNC.

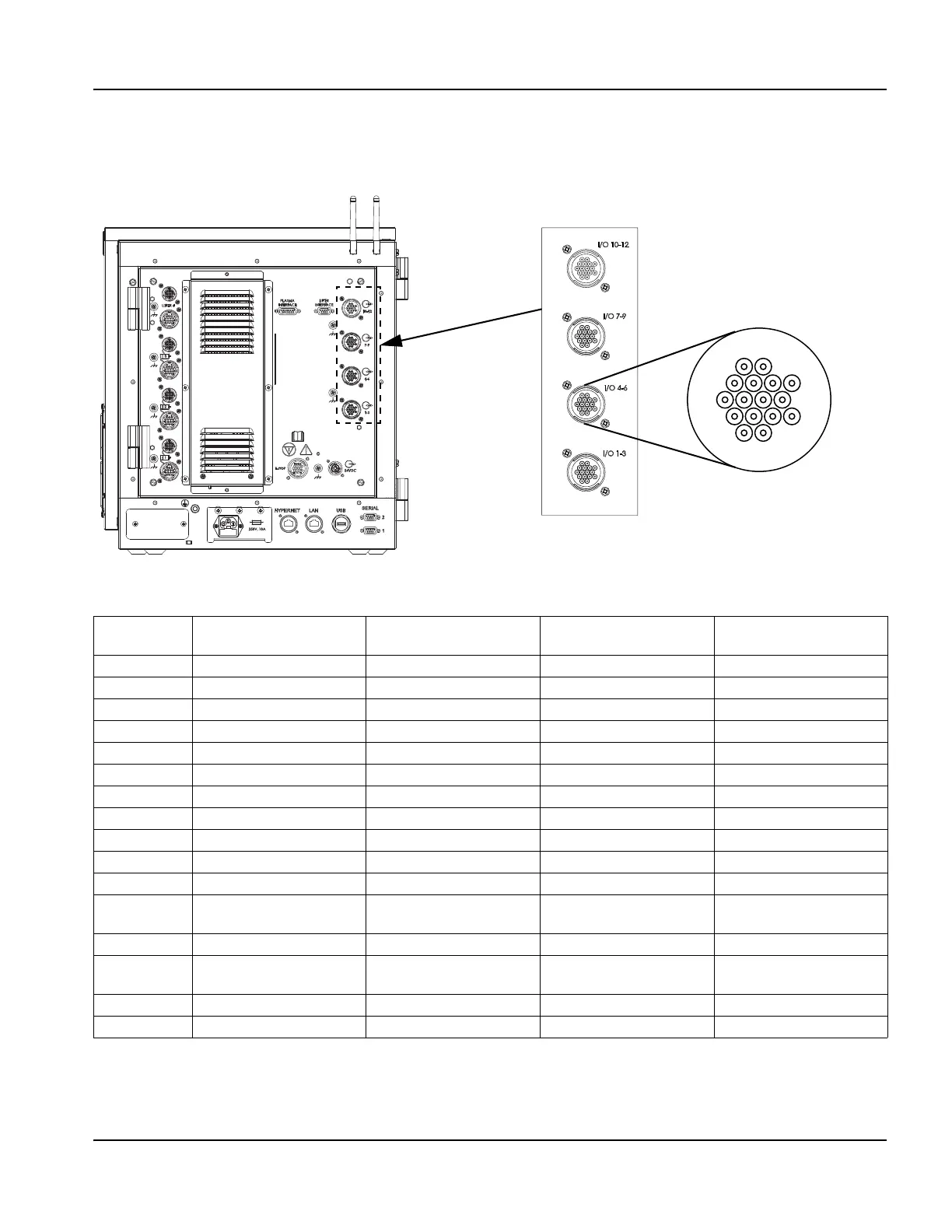

Figure 33 EDGE Pro Ti I/O interface
Table 14 Pinouts for I/O interface
Pin no.
Connector J9
I/O 1 – 3
Connector J10
I/O 4 – 6
Connector J11
I/O 7 – 9
Connector J12
I/O 10 – 12
1 Output 1 common Output 4 common Output 7 common Output 10 common
2 Output 1 normally closed Output 4 normally closed Output 7 normally closed Output 10 normally closed
3 Output 1 normally open Output 4 normally open Output 7 normally open Output 10 normally open
4 Output 2 common Output 5 common Output 8 common Output 11 common
5 Output 2 normally closed Output 5 normally closed Output 8 normally closed Output 11 normally closed
6 Output 2 normally open Output 5 normally open Output 8 normally open Output 11 normally open
7 Output 3 common Output 6 common Output 9 common Output 12 common
8 Output 3 normally closed Output 6 normally closed Output 9 normally closed Output 12 normally closed
9 Output 3 normally open Output 6 normally open Output 9 normally open Output 12 normally open
10 Input 1 Input 4 Input 7 Input 10
11 Input 1 common Input 4 common Input 7 common Input 10 common
12 Input 2 Input 5 Input 8 Input 11 (shared with lifter
Upper Limit input)
13 Input 2 common Input 5 common Input 8 common Input 11 common
14 Input 3 Input 6 Input 9 Input 12 (shared with lifter
Lower Limit input)
15 Input 3 common Input 6 common Input 9 common Input 12 common
16 Shield Shield Shield Shield
