EDGE Pro Ti CNC Instruction Manual 807660 123
Maintenance and Diagnostics
4-axis MCC board (141191)
4-axis MCC board (141191)

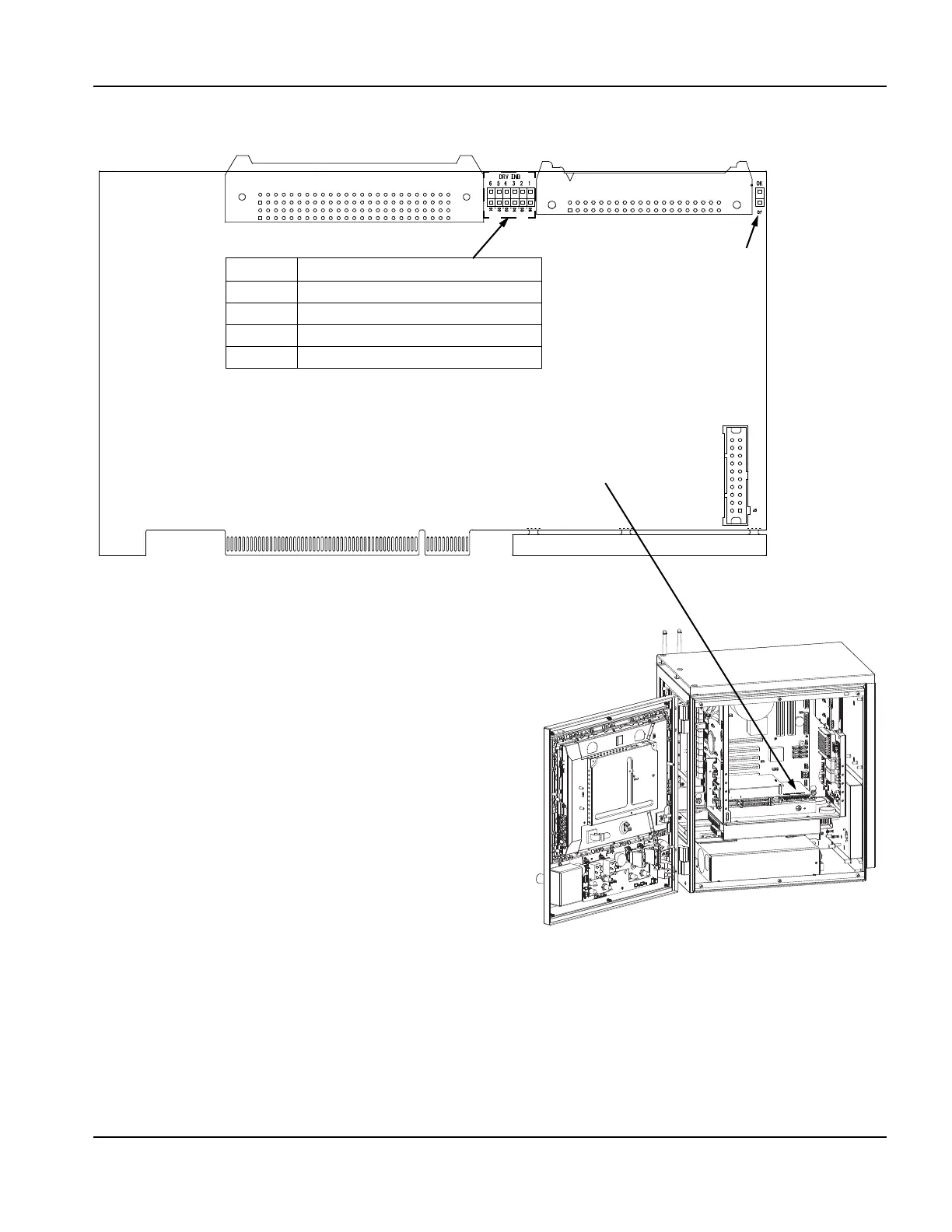

Figure 66 4-axis MCC board
LED Signal
D3 Axis 4 enabled
D4 Axis 3 enabled
D5 Axis 2 enabled
D6 Axis 1 enabled
D7
Watch dog LED
ON = enabled
J1
I/O 1 to 12
J2
Axis 1 – 4
Installed in PCI slot 5 on the motherboard
