EDGE Pro Ti CNC Instruction Manual 807660 121
Maintenance and Diagnostics
Power distribution board (141153)
Power distribution board (141153)

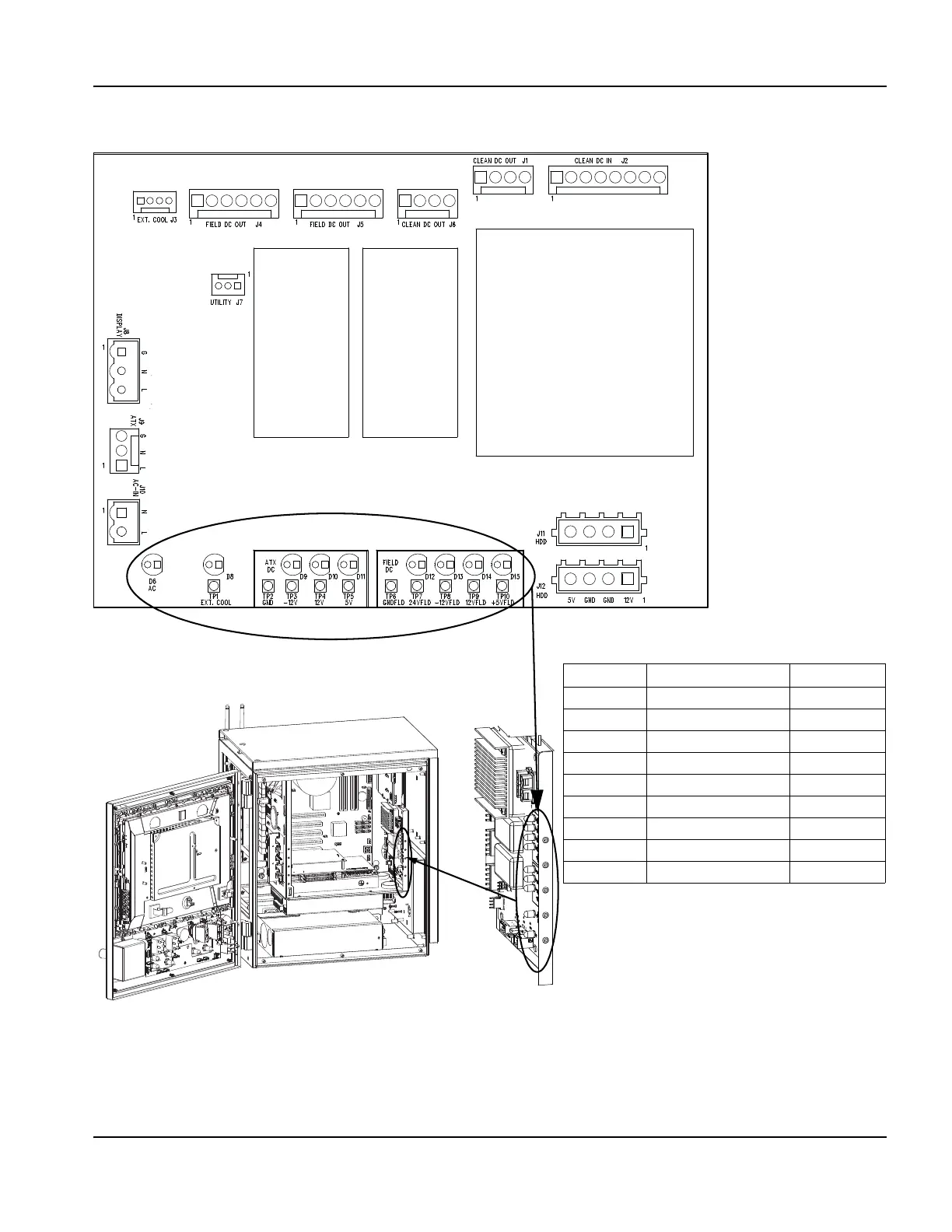

Figure 65 Power distribution board
LED Signal Color
D15 +5 V Field DC Green
D14 12 V Field DC Green
D13 -12 V Field DC Green
D12 24 V Field DC Green
D11 5 V ATX DC Green
D10 12 V ATX DC Green
D9 -12 V ATX DC Green
D8 External fan Green
D6 AC power Green
