126 EDGE Pro Ti CNC Instruction Manual 807660
Maintenance and Diagnostics
Utility and serial isolation board (141307)
Utility and serial isolation board (141307)

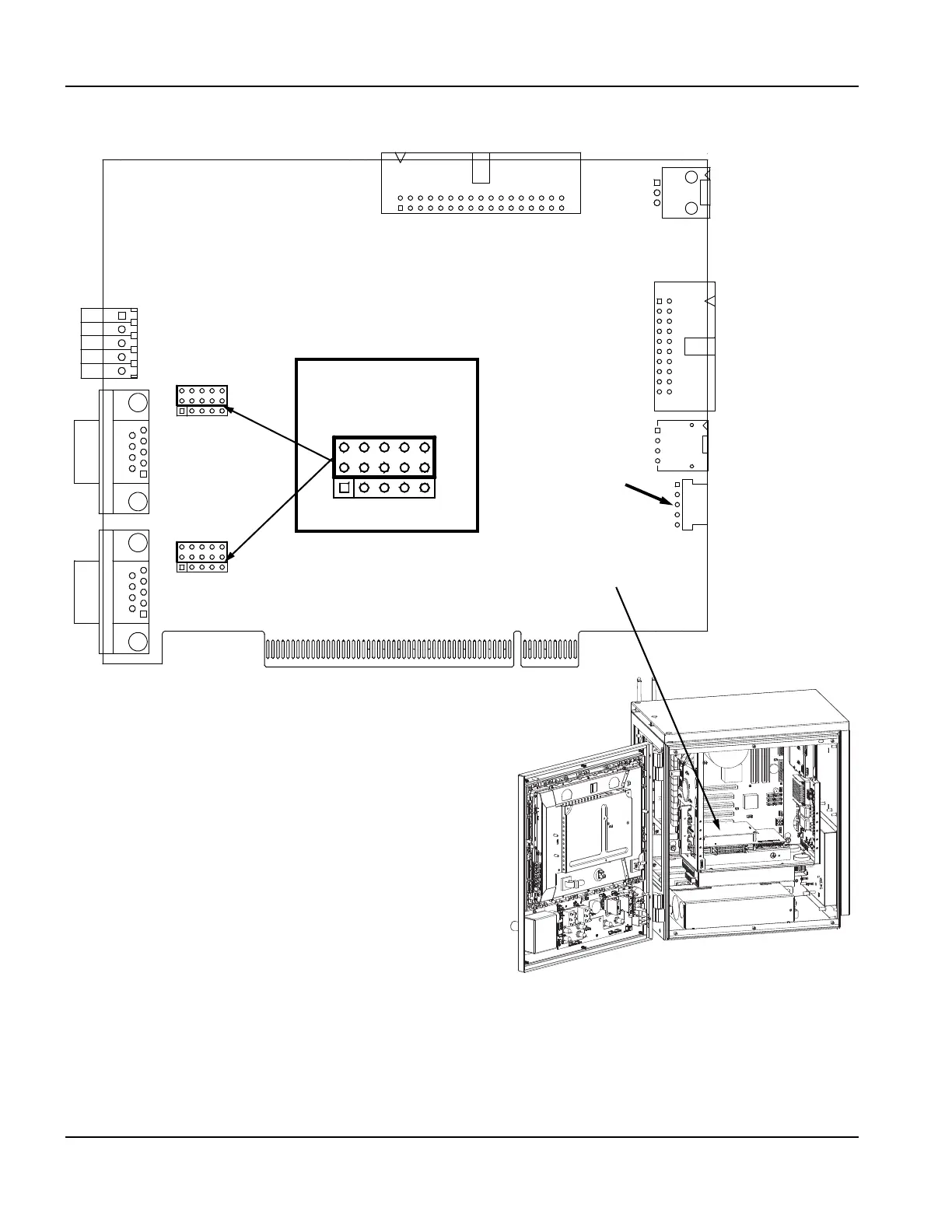

Figure 67 Utility and serial isolation board
J6 To motherboard
and power
distribution
J8 Port B Serial 2
J5 Port A Serial 1
2x5 Jumpers =
2 connectors
RS-422
RS-232
J4
J7
J1 To front panel
Installed in PCI slot 4 on the
motherboard
J11 Arc voltage
(isolated and scaled)
J3 To serial COM 3
and COM 4
