76 EDGE Pro Ti CNC Instruction Manual 807660
Installation
I/O connection
I/O Setup screen
The I/O setup screen in Phoenix software defines inputs, outputs, and their logic state.

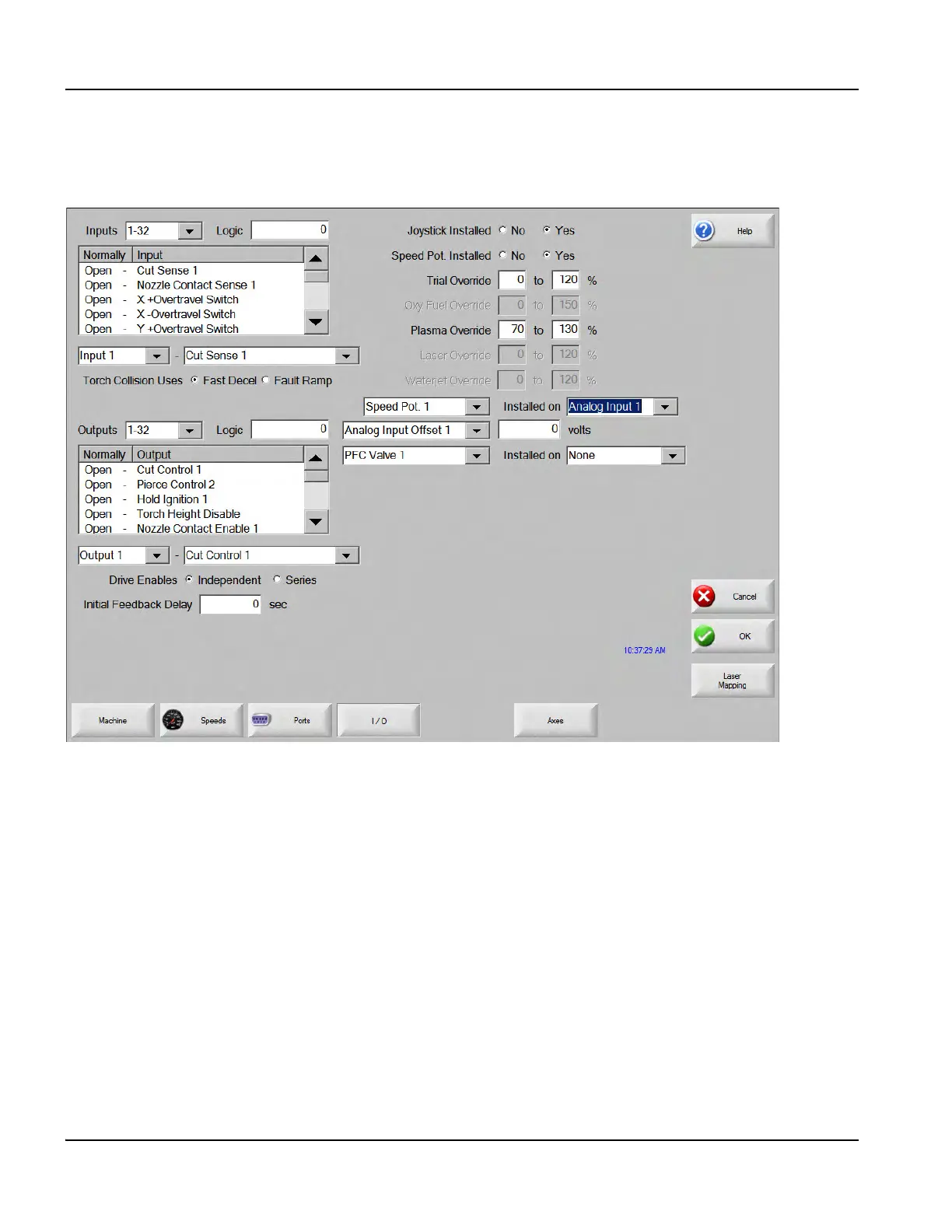

Figure 37 I/O setup screen in Phoenix software
