102 EDGE Pro Ti CNC Instruction Manual 807660
Maintenance and Diagnostics
Diagnostic tests
LAN and Hypernet tests

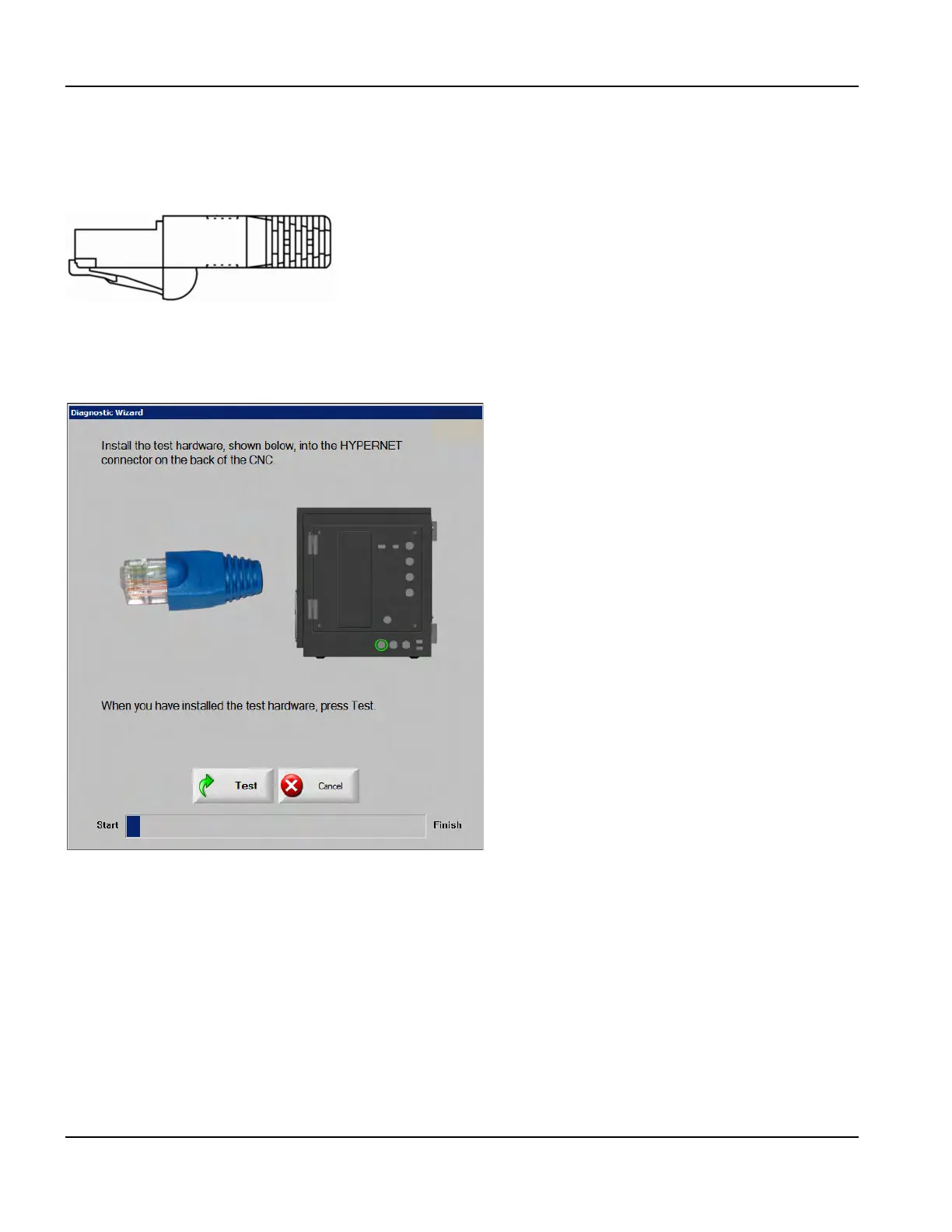

The LAN and Hypernet tests both use the same tester, shown in Figure 55.
Figure 55 LAN and Hypernet tester
Conduct this test if:
• The CNC is not communicating with the ArcGlide or plasma system.
• The CNC is not communicating with the local area network.
To test a LAN or Hypernet port:
1. On the Machine Interface screen, choose the LAN or Hypernet port.
2. Follow the instructions on the screen to plug in the tester.
3. Choose Test on the Hypernet or LAN test screen. A message informs you if the test is successful.
If either test fails, contact your table manufacturer to replace the motherboard (141110).
