Hypertherm EDGE Pro Ti User Manual

54 EDGE Pro Ti CNC Instruction Manual 807660
Installation
AC power
Chassis grounding
The CNC must be properly grounded according to national and local electrical codes for safe operation. Use a number
6 AWG (16 mm
2
) wire between the ground stud on the rear of the CNC and the star ground on the cutting table, as
shown in Figure 16.

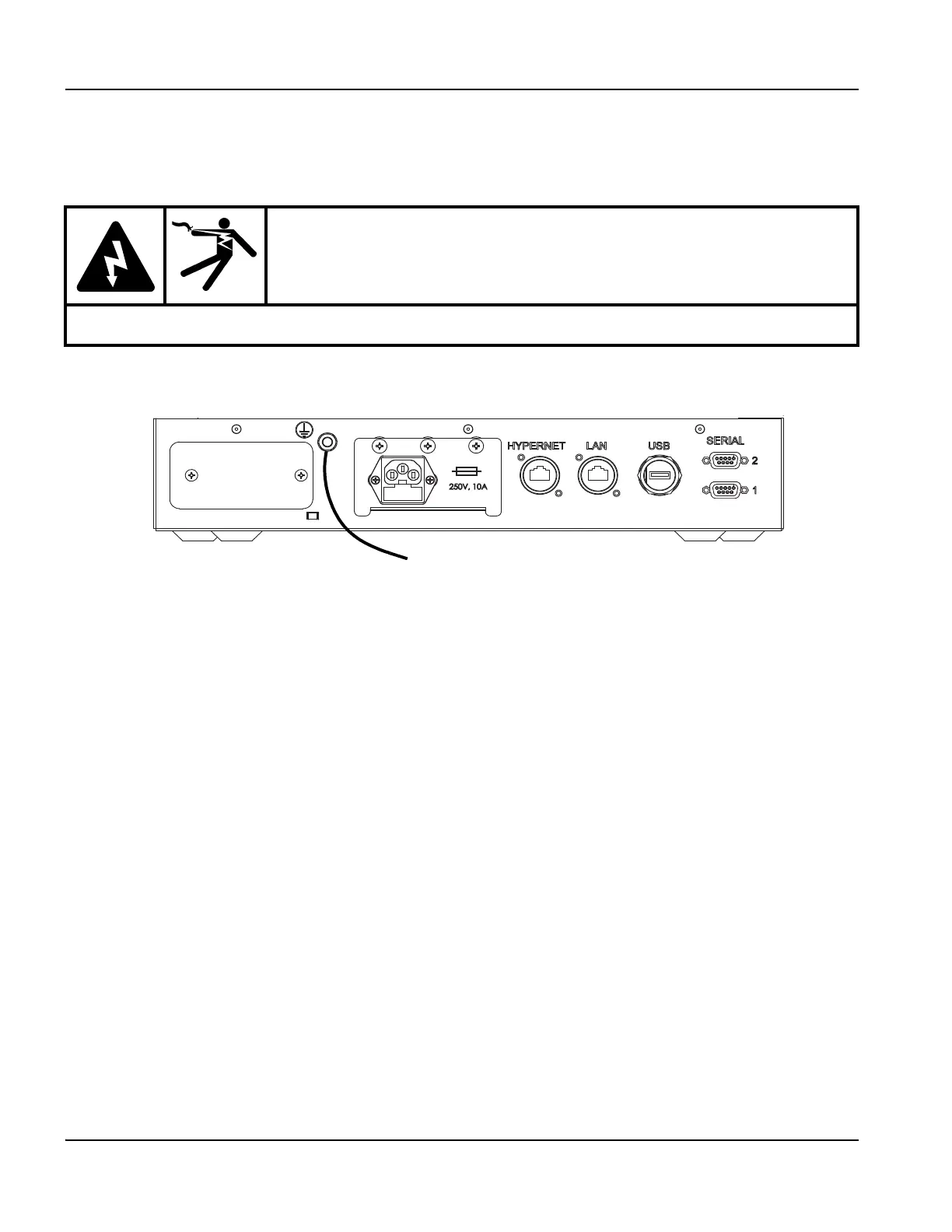

Figure 16 Ground cable on the CNC
WARNING!
ELECTRIC SHOCK CAN KILL
This ground connection must be wired for safe and reliable operation.
To the star ground on the cutting table
