104 EDGE Pro Ti CNC Instruction Manual 807660
Maintenance and Diagnostics
Diagnostic tests
USB test
Use this test to check the USB ports on the front and back of the CNC. The diagnostic software will test the first USB
memory stick that it finds so it is important to remove all USB memory devices before conducting this test.

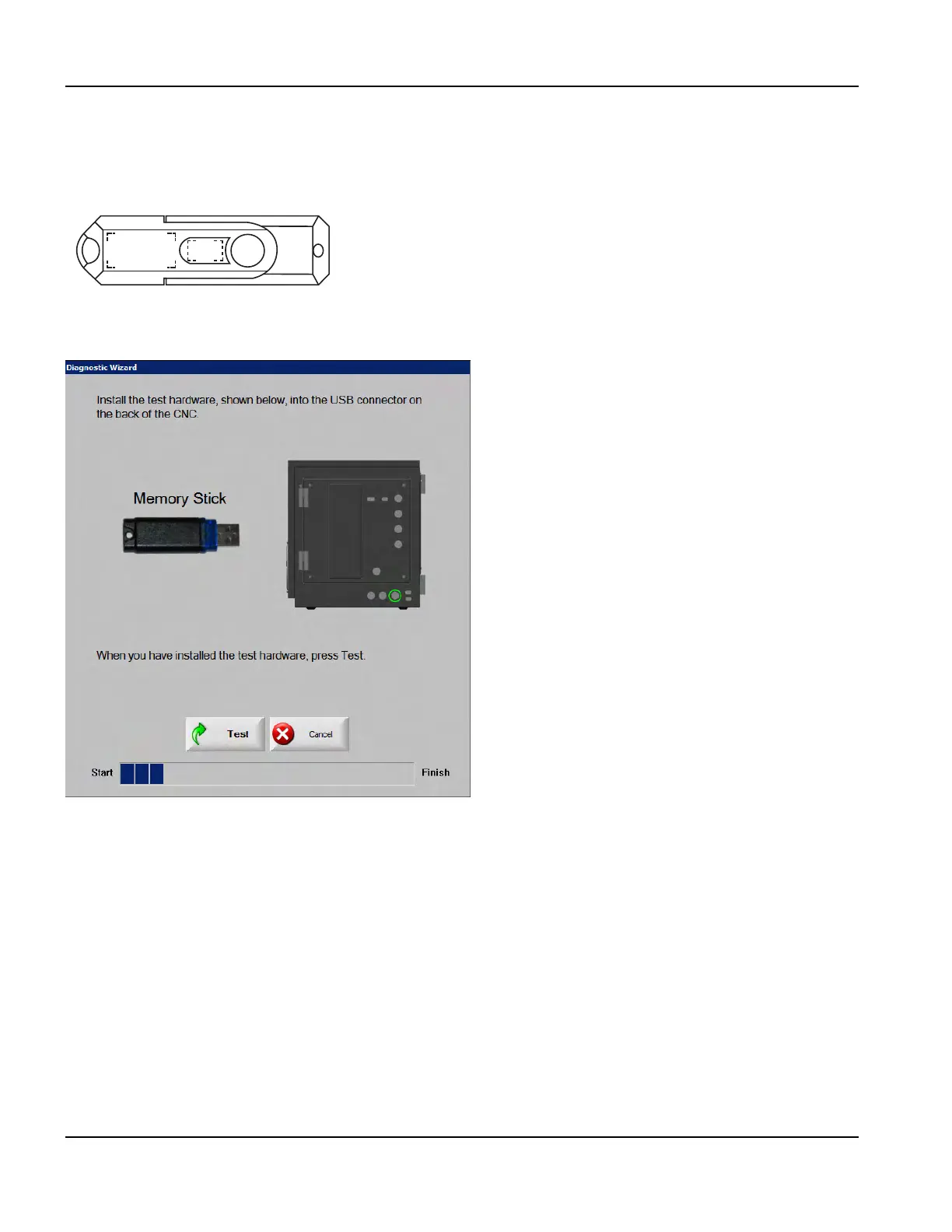

Figure 57 USB tester
Conduct this test if the memory stick is not shown as an option when you try to load part programs or update cut charts,
software, or Help.
To test the USB port on the back of the CNC:
1. Verify that no USB memory device is installed.
2. On the Machine Interface screen, choose the USB port on the back of the CNC.
3. Follow the instructions on the screen to insert the memory stick in the USB port on the back of the CNC.
4. Press Test. A message informs you if the test is successful.
To repeat this test for the USB port on the front of the CNC:
1. Verify that no USB memory device is installed.
2. On the Machine Interface screen, choose the USB port on the back of the CNC.
3. Follow the instructions on the screen to insert the memory stick in the USB port on the front of the CNC.
4. Press Test. A message informs you if the test is successful.
If the test fails on both USB ports, contact your table manufacturer to replace the motherboard (141110).
