EDGE Pro Ti CNC Instruction Manual 807660 49
Installation
Configuration diagrams
Configuration diagrams

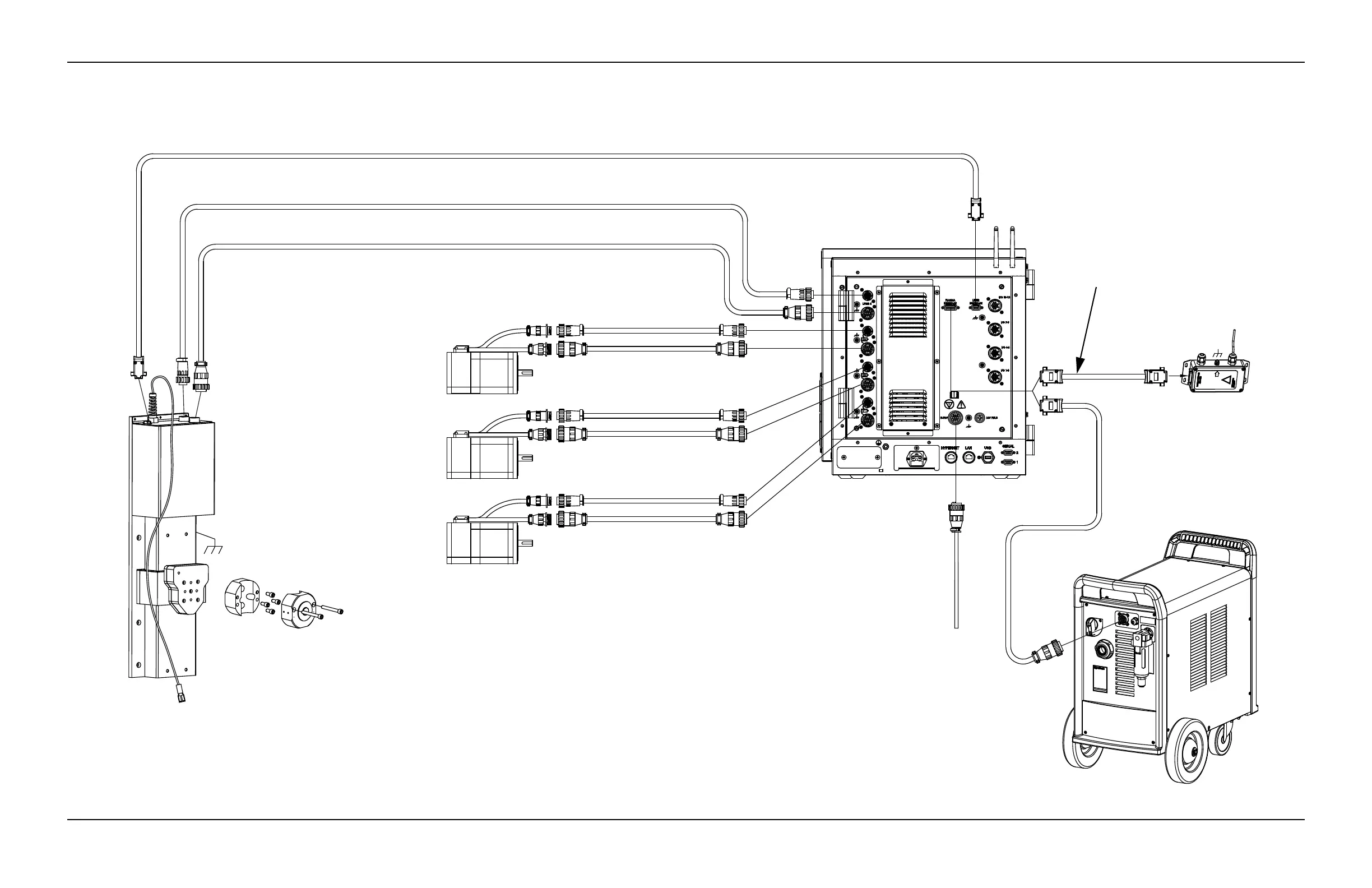

Figure 12 Example of a configuration with an EDGE PRO Ti CNC and an integrated Sensor Ti lifter
Lifter interface cable
Motor cable
Encoder cable
Encoder cable
Encoder cable
Encoder cable
Motor cable
Motor cable
Motor cable
Integrated Sensor Ti lifter with motor,
encoder and magnetic breakaway
(228119)
Torch mounting block
Ohmic contact wire, connect to torch shield
Motor (031143)
Motor (031143)
Motor
(031143)
EDGE Pro Ti CNC
Plasma interface cable for connection to
plasma interface assembly 228256
Plasma interface cable for connection to
plasma systems with a compatible, built-in
voltage divider
OR
E-stop cable
