EDGE Pro Ti CNC Instruction Manual 807660 39
Installation
Mounting the CNC
Mounting the CNC
Before you connect the EDGE Pro Ti CNC to other system components, mount all the components using the appropriate
instructions.
Do not allow the system components to lie unsecured on top of cabinets or on the floor.

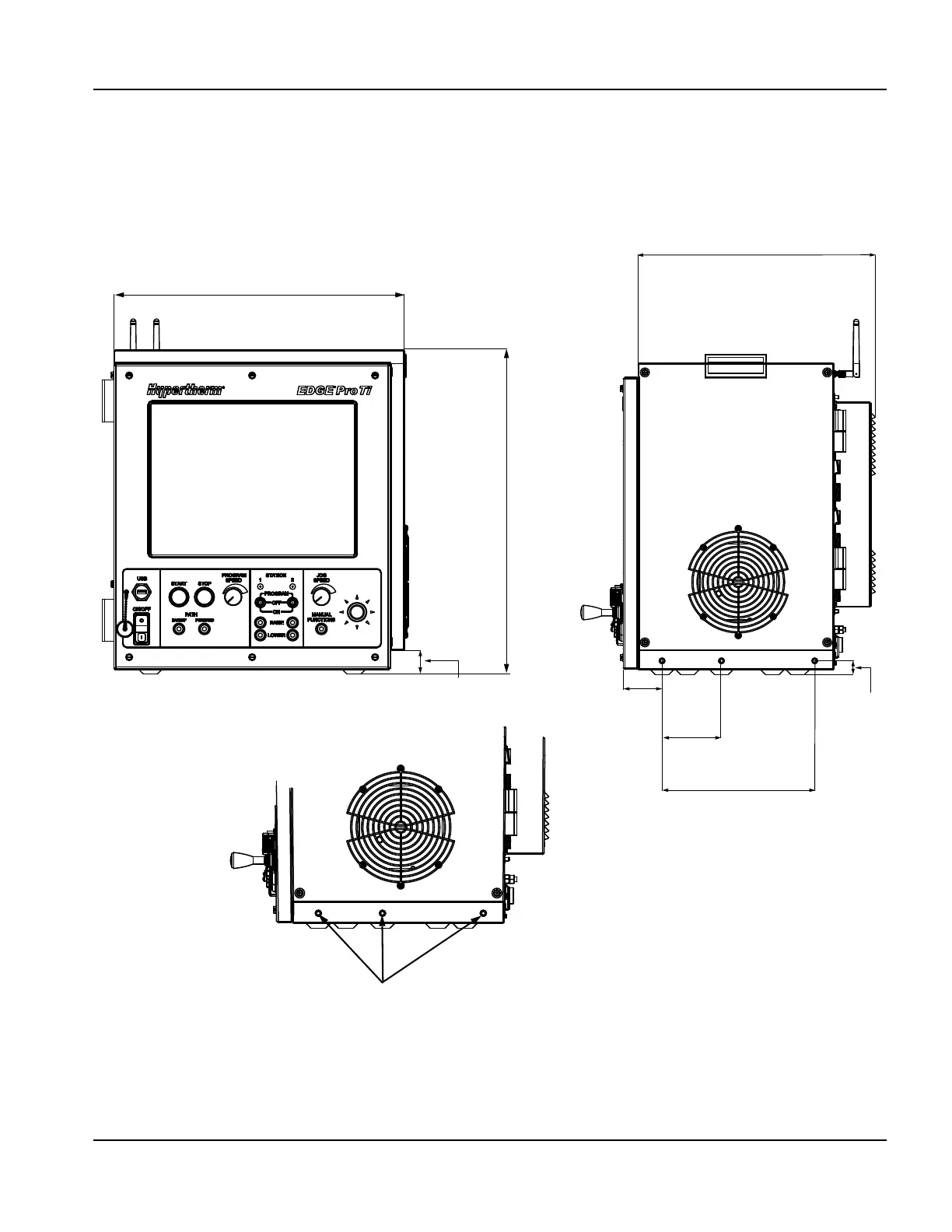

Figure 9 Front and side views of the EDGE Pro Ti CNC
435 mm
17.13 in.
491 mm
19.33 in.
Use M6 x 1 hardware for side mounting.
Maximum length inside enclosure must not exceed 7.8 mm (0.31 in.)
58 mm
2.29 in.
21 mm
0.82 in.
228.5 mm
9.00 in.
90 mm
3.50 in.
377.2 mm (14.85 in.)
36 mm
1.42 in.
