EDGE Pro Ti CNC Instruction Manual 807660 41
Installation
Mounting the THC
Mounting the THC
Sensor™ Ti THC
The EDGE Pro Ti CNC supports one Sensor Ti THC. Mount the Sensor Ti lifter assembly (228119) on the cutting table to
take maximum advantage of the vertical travel range. Typically the bottom of the lifter should be between 15.24 and
20.32 cm (6 and 8 in.) above the cutting table.

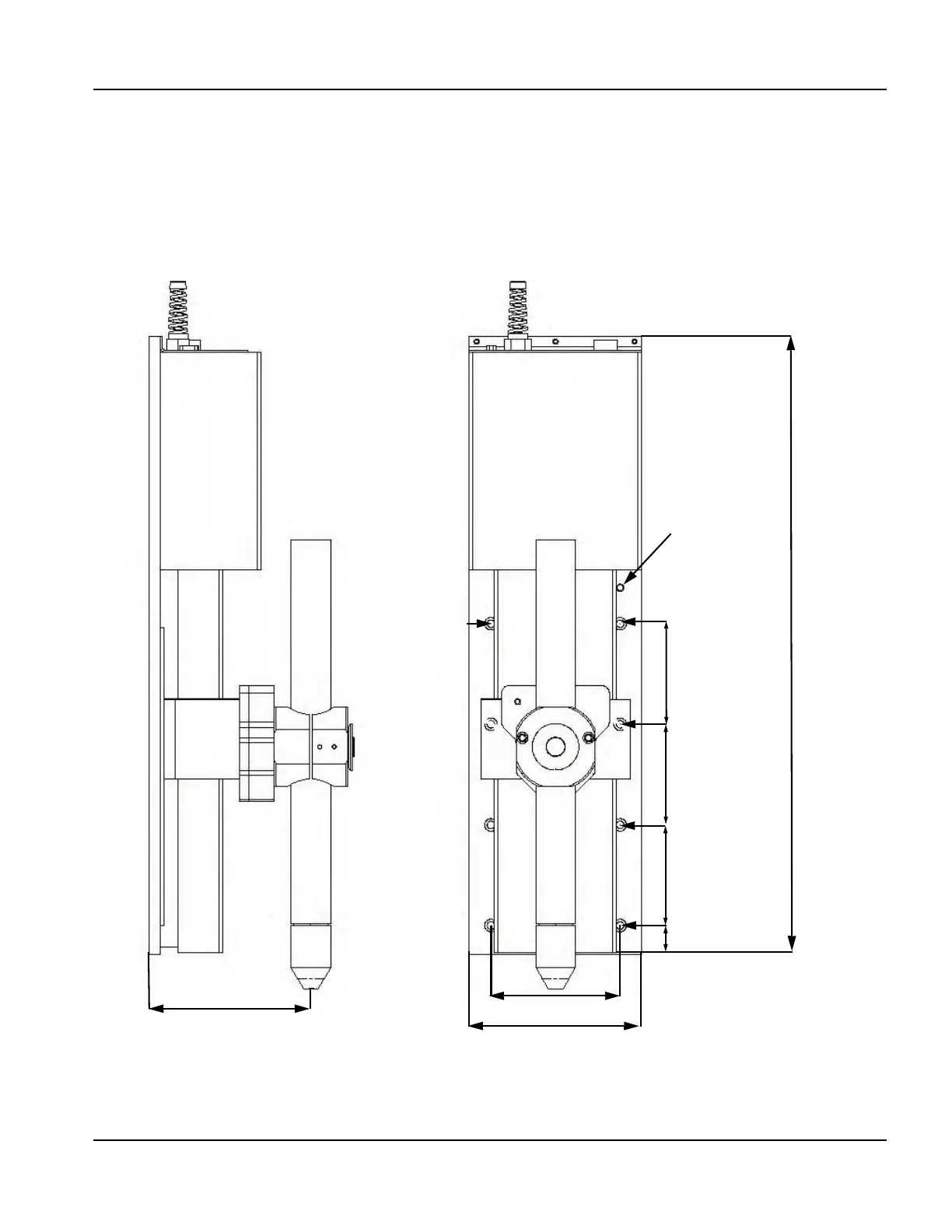

Figure 11 Front and side views of the Sensor Ti
142.75 mm (5.62 in.)
152.4 mm (6.00 in.)
88.9 mm
(3.50 in.)
88.9 mm
(3.50 in.)
88.9 mm
(3.50 in.)
24.5 mm (1 in.)
546.1 mm
(21.50 in.)
Ground stud —
connect to the star
ground on the
work table
Ø 0.265 in.
countersunk for cap
socket head screws
114.30 mm (4.50 in.)
