EDGE Pro Ti CNC Instruction Manual 807660 87
Installation
Lifter interface
Lifter interface
The lifter interface on the rear door of the EDGE Pro Ti is a 9-pin D-sub connector for the lifter interface cable that
connects the EDGE Pro Ti to the optional, integrated Sensor Ti. The lifter interface is designed for use with the Sensor Ti
lifter only and provides the proper height during cutting. This interface requires:
• Arc Voltage, Start, Transfer, and Hold signals. See Figure 45and Table 16for information on signal
wiring.
• A voltage divider
The connection between the EDGE Pro Ti CNC and the ArcGlide lifter uses a Hypernet cable, as shown in Figure 12 on
page 50 and as described in the ArcGlide THC Instruction Manual.
Install the lifter cable between the lifter interface on the EDGE Pro Ti and the Sensor Ti.

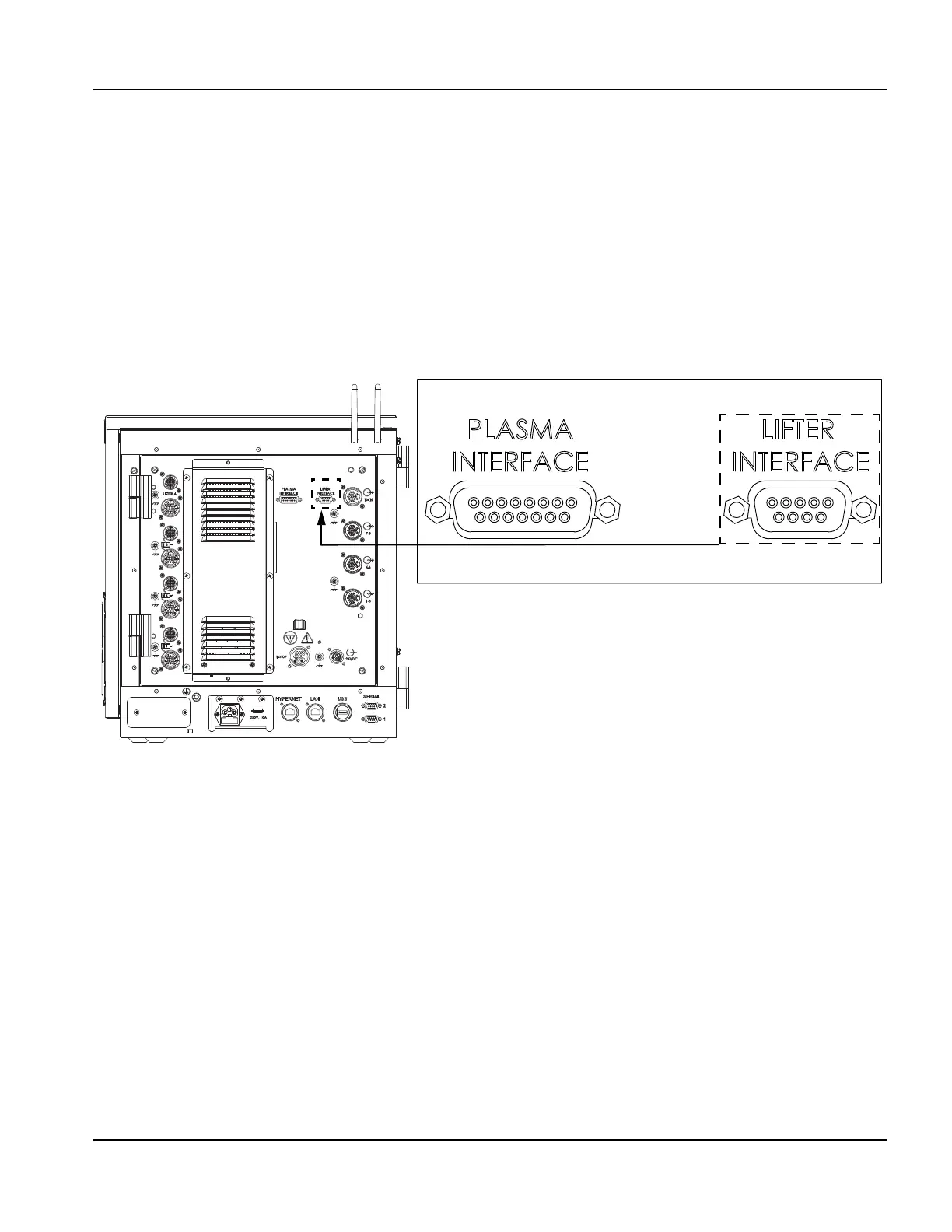

Figure 48 Lifter interface for the Sensor Ti
Note: Lower Limit, Upper Limit, and Breakaway switch inputs are sinking inputs to field common.
For THCs that are not manufactured by Hypertherm, the Upper Limit and Lower Limit switch inputs are shared with
general inputs 11 and 12. For more information, see Shared inputs on page 73.
1
9
