78 EDGE Pro Ti CNC Instruction Manual 807660
Installation
Plasma connection
Plasma connection for Powermax plasma systems
Install plasma interface cable between the plasma interface on the rear of the EDGE Pro Ti and the connector on the rear
of a Powermax plasma system with a built-in voltage divider.

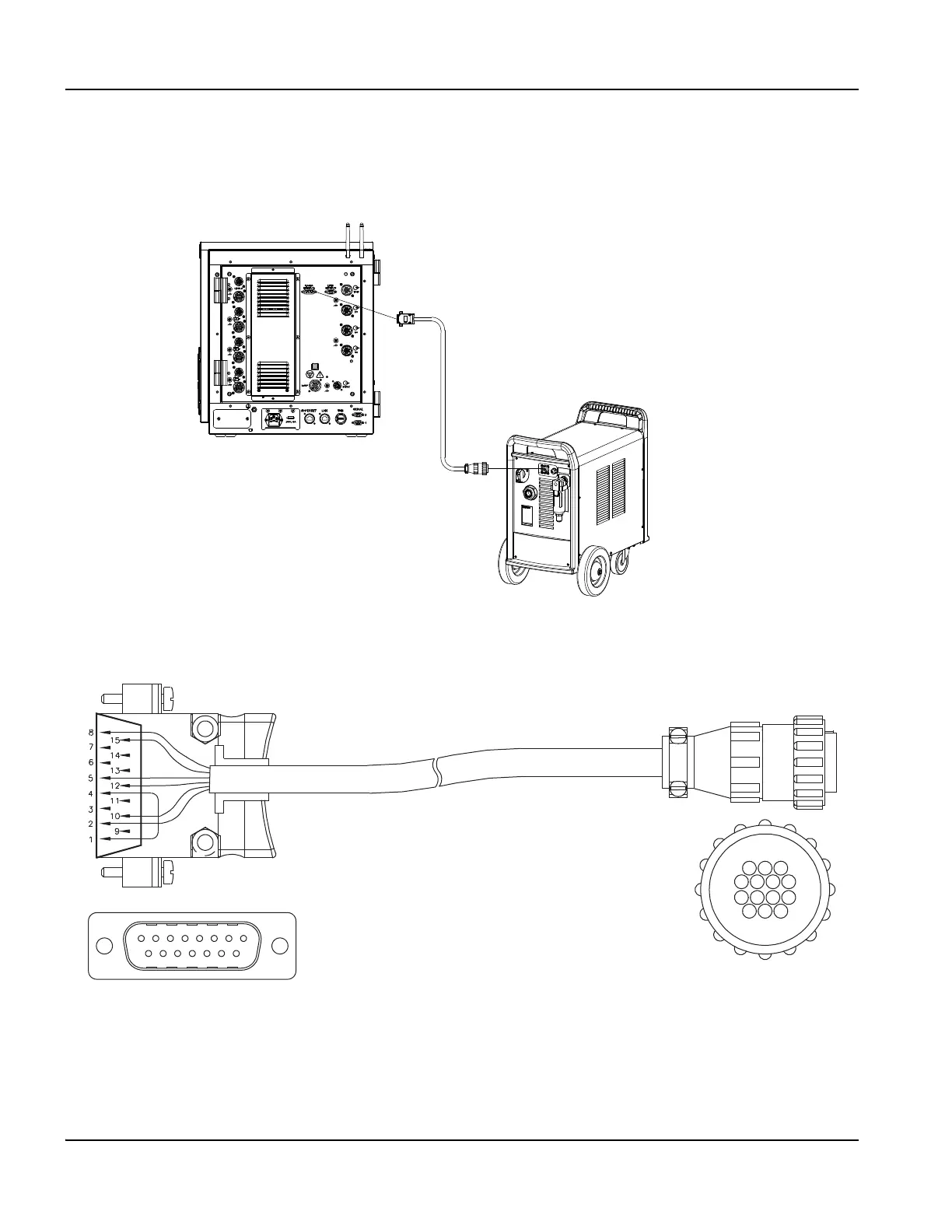

Figure 39 Plasma interface cable to a Powermax system
Figure 40 Plasma interface cable for Powermax systems
Plasma interface cable
Powermax plasma system with a
built-in voltage divider
Diameter = 6.934 mm (0.273 in.)
Bend radius = 150 mm (6 in.)
End B
End A
1
15
14
11
7
31
4
8
12
