36 EDGE Pro Ti CNC Instruction Manual 807660
Specifications
Specifications for the Sensor Ti lifter
Specifications for the Sensor Ti lifter
* With standard, supplied lifter mechanics

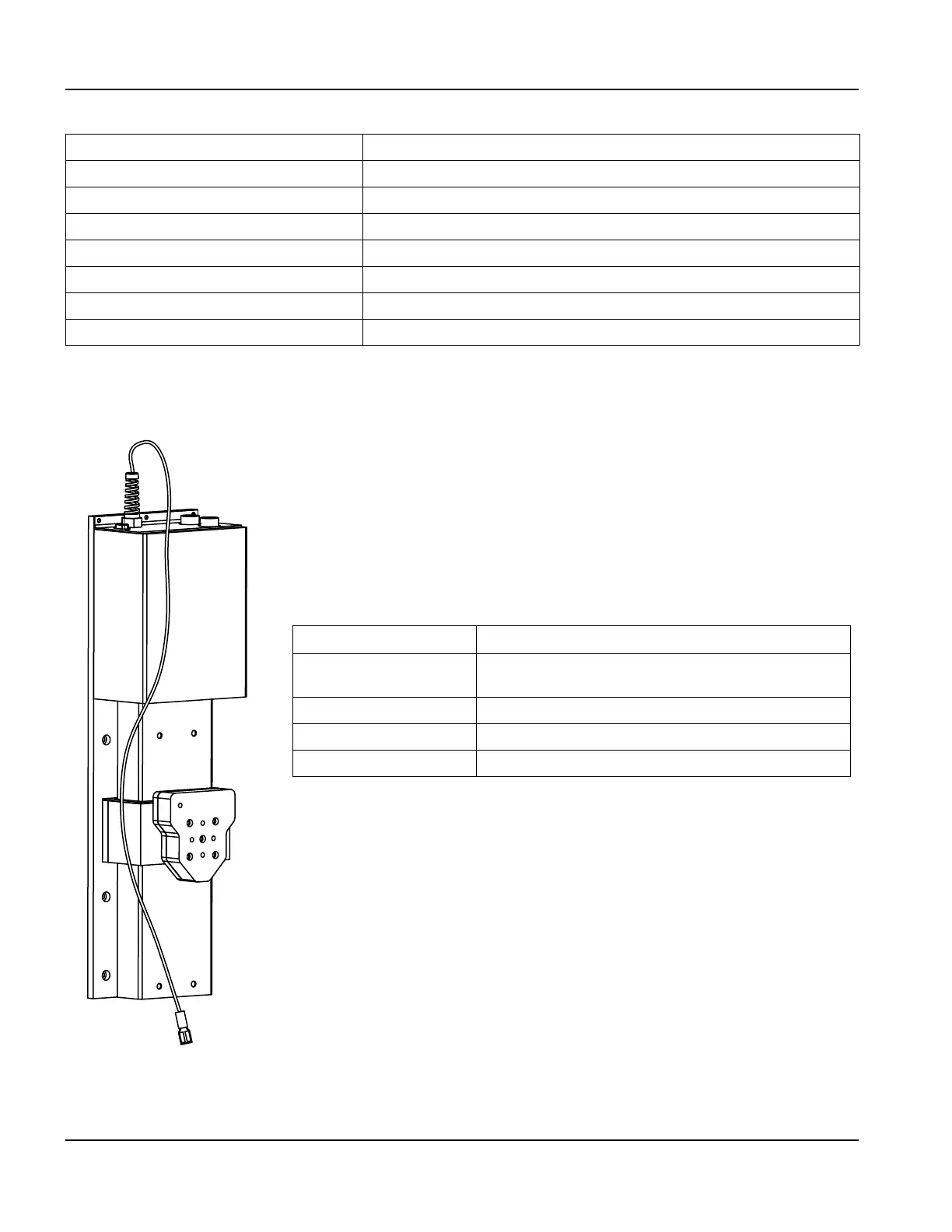

Figure 8 Sensor Ti lifter
Compatible motors DC brush, 60 VDC, 1 A
Maximum power output 60 W
Standard lifter range Linear 152 mm (6 in.)
Accuracy 0.25 mm (0.01in.) or 0.5 V *
Measuring technology Arc voltage feedback and Ohmic contact sensing
Standard lifter dimensions 152 mm (6 in.) W x 80 mm (3.15 in.) D x 546 mm (21.5 in.) H*
Standard lifter weight 8.7 k (19 lb) *
Operating environment 0 to 50 C; 95% maximum relative humidity (non-condensing)
Table 3 Sensor Ti lifter part numbers
Part number
Description
228119 Sensor Ti lifter, motor, encoder, 4.53 k (10 lb) magnetic
breakaway
128277 35 mm (1-3/8 in.) torch mounting block
128278 44 mm (1-3/4 in.) torch mounting block
128279 50 mm (2 in.) torch mounting block
