EDGE Pro Ti CNC Instruction Manual 807660 103
Maintenance and Diagnostics
Diagnostic tests
Serial test
The EDGE Pro is equipped with two serial ports. Serial 1 and 2 support RS-422 or RS-232 communications, depending
on the jumper configuration. For more information, see Utility and serial isolation board (141307) on page 126.

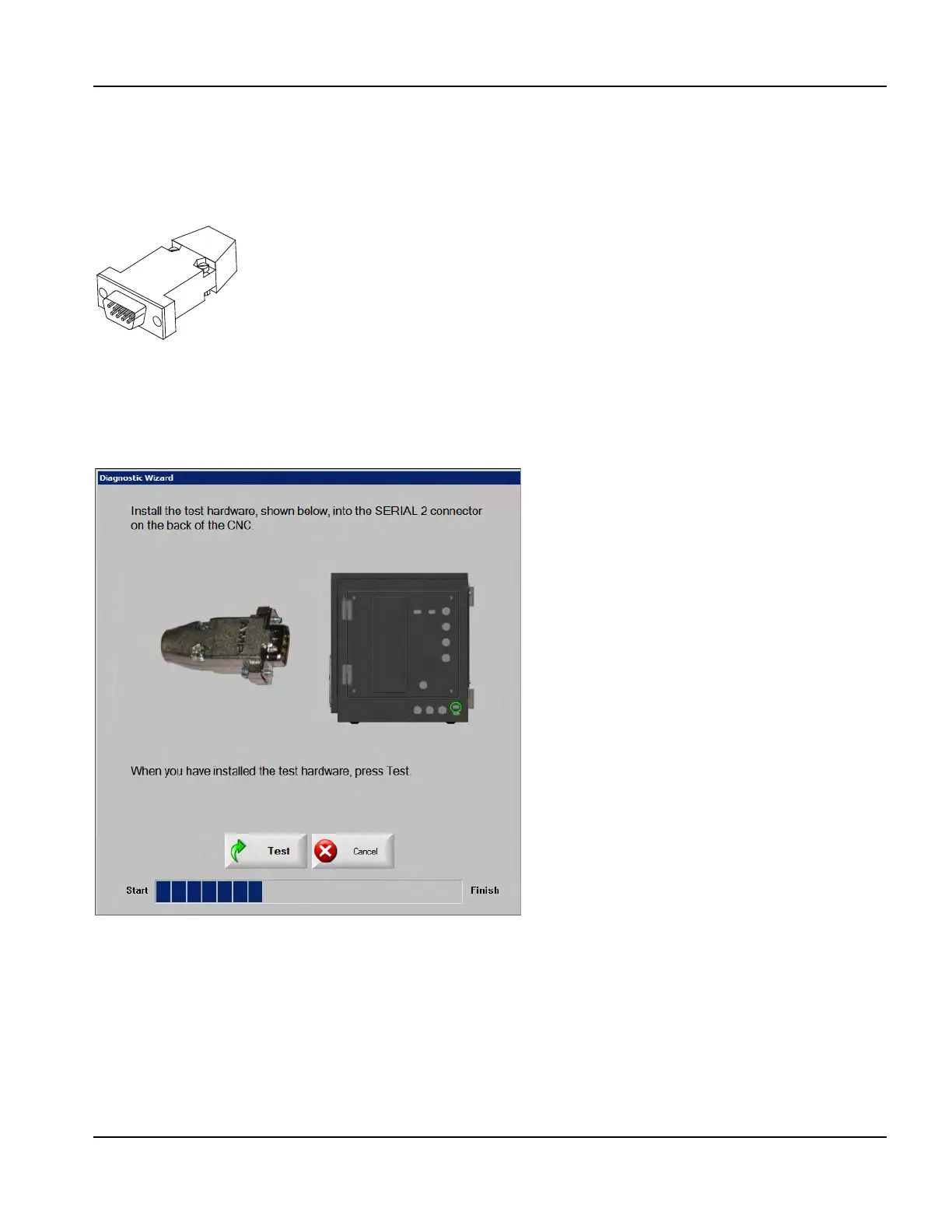

Figure 56 Serial tester
Conduct this test if:
• Processes or information communicated through the serial port are not operating properly.
• The CNC is unable to download files through the serial port.
• The serial link to the plasma supply fails.
To test serial communications:
1. On the Machine Interface screen, choose the serial port you want to test.
2. On the CNC, plug the serial test hardware into the port you selected.
3. Choose Test on the serial test screen. A message informs you if the test is successful.
If the test fails, contact your table manufacturer to replace the utility and serial isolation board (141307).
