32 EDGE Pro Ti CNC Instruction Manual 807660
Specifications
Features of the EDGE Pro Ti CNC
Rear panel
The rear panel of the EDGE Pro Ti CNC has cable connectors for power, motion control, I/O, and communication ports.
These connectors are clearly labeled with their function.

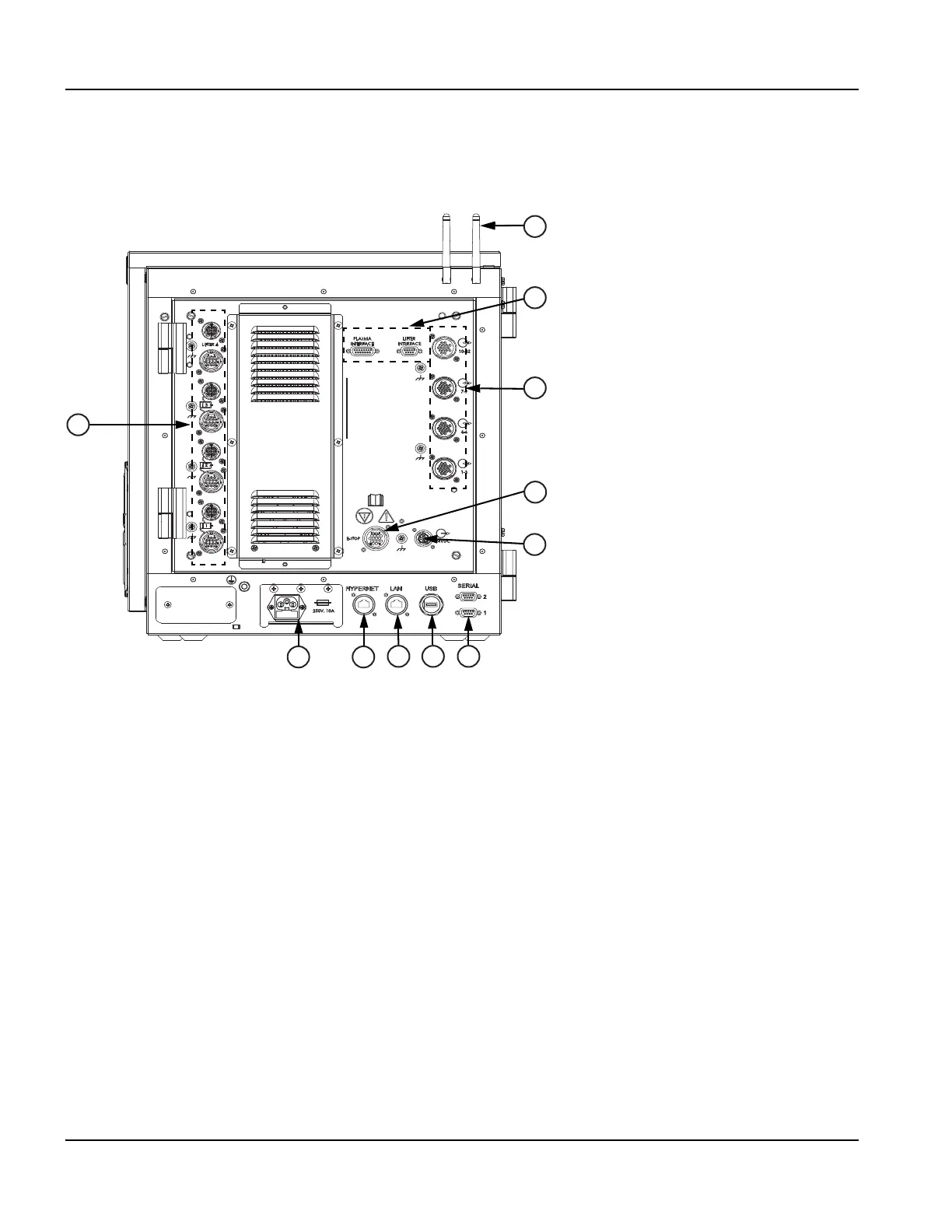

Figure 6 Rear panel of the EDGE Pro Ti CNC
For more information about the electrical installation of the EDGE Pro Ti CNC, See Installation on page 37..
1
9
8
7
6
5
4
3
2
1
Drive/encoder connectors
2
Wireless antennas
3
Plasma and lifter (Sensor Ti) connectors
4
I/O connectors
5
E-stop connector
6
24 V auxiliary power output
7
Serial ports
8
USB port
9
LAN port
10
Hypernet port
11
AC power input
10
11
