EDGE Pro Ti CNC Instruction Manual 807660 81
Installation
Plasma connection

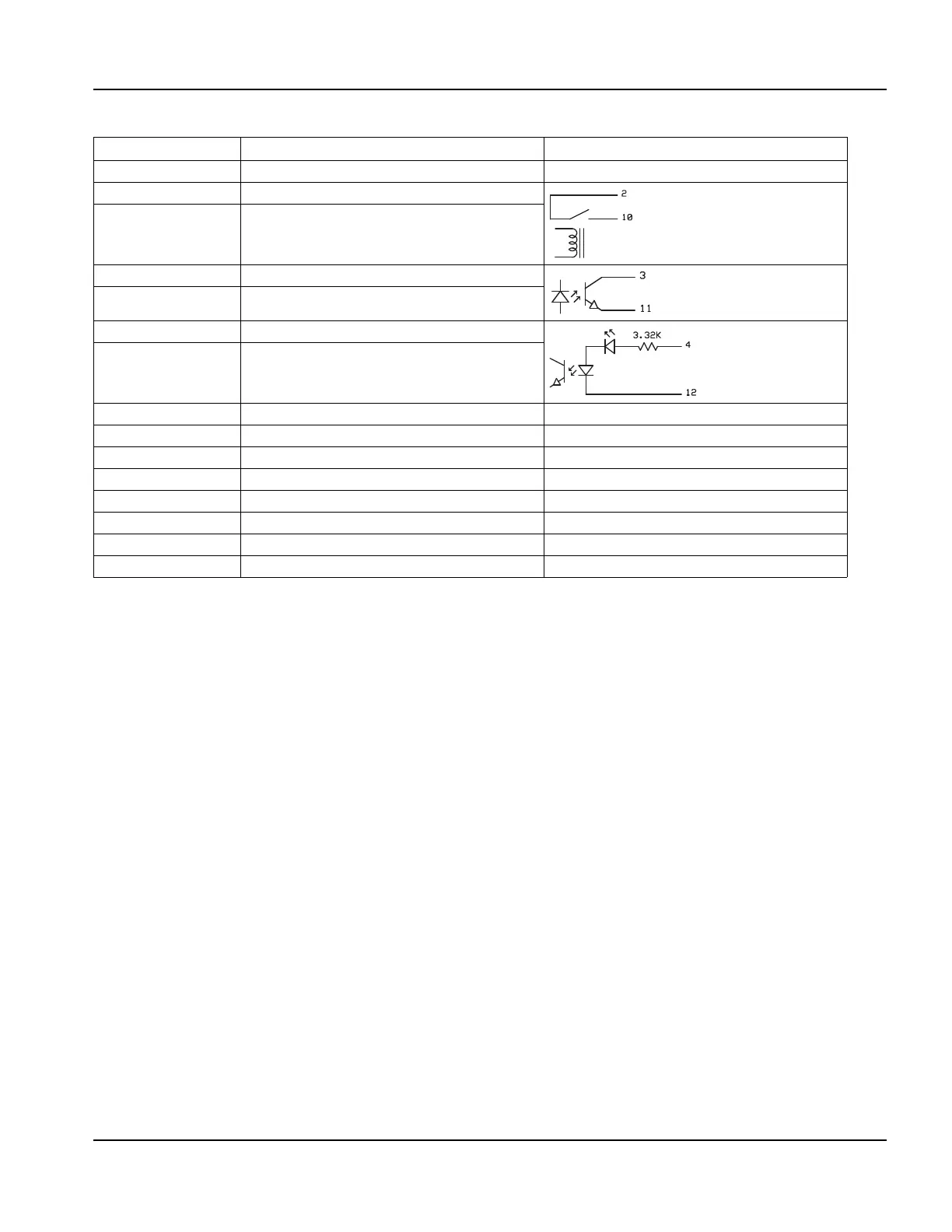

Table 18 Pinouts for the generic plasma interface cable
Use the following information to order this plasma interface cable.
Pin number Signal Dry contact circuit
1 +12 VDC
2 Plasma Start Output (Cut Control) Normally open
10 Plasma Start Output (Cut Control; Output 13 in
Phoenix)
3 Hold Ignition Output +
11 Hold Ignition Output - (Output 14 in Phoenix)
4 Transfer Input + (Cut Sense)
12 Transfer Input - (Cut Sense; Input 13 in Phoenix)
5Common
6Common
7Common
8Arc Voltage + (Work)
9 +12 VDC
13 Common
14 Common
15 Arc Voltage - (Electrode)
Part Number Length
223358 3.05 m (10 ft)
223359 6.08 m (20 ft)
223360 7.62 m (25 ft)
223361 10.66 m (35 ft)
223362 15.25 m (50 ft)
223363 22.86 m (75 ft)
