234 Powermax125 Service Manual 808070
9 Power Supply Component Replacement

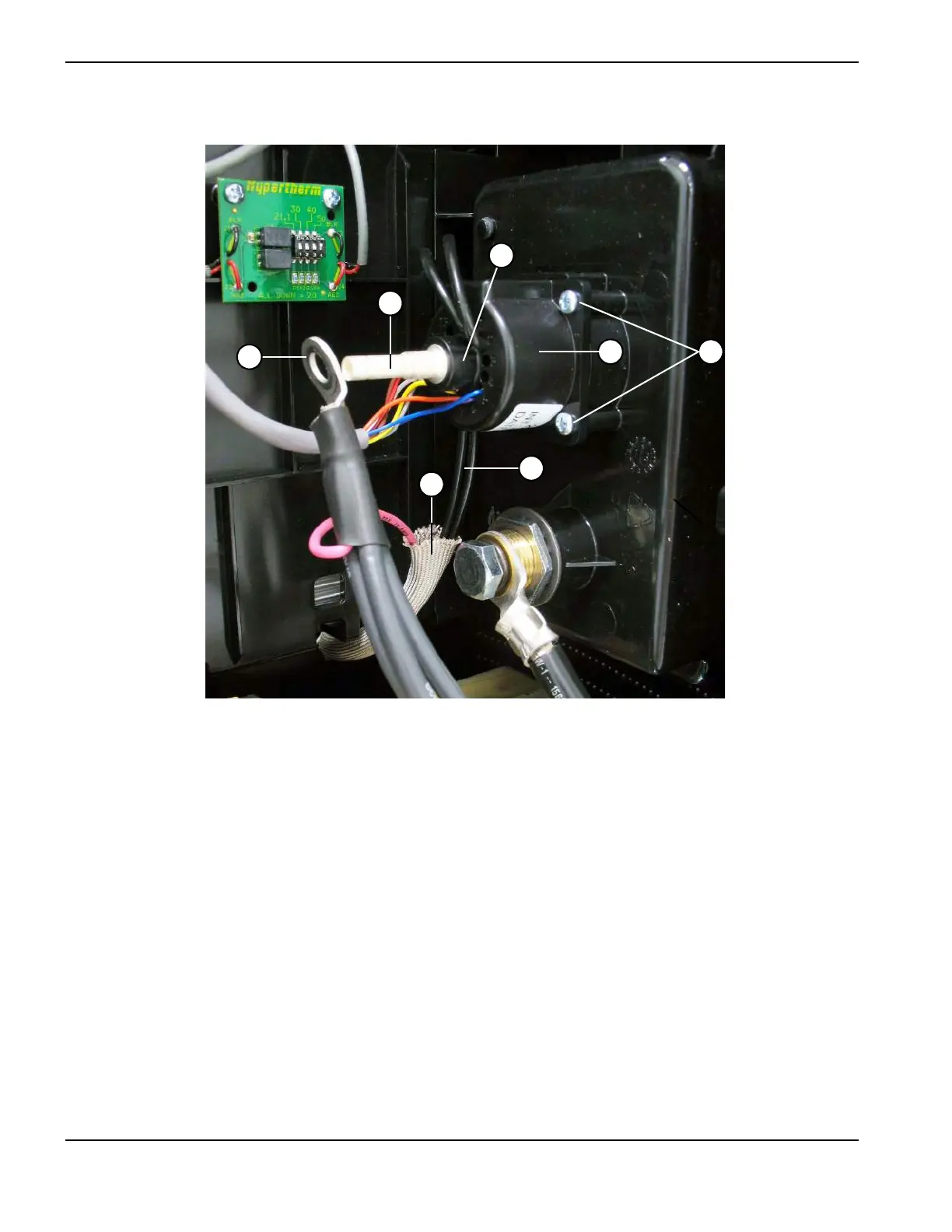

Figure 91
1
2
5 6
7
4
3
1 Silver-plated fitting
2 Ring terminal
3 Protective sheathing
4 Nozzle wires (2)
5 Quick disconnect receptacle
6 Mounting screws (4)
7 Plastic hub
