Hypertherm Powermax 125 Service Manual

240 Powermax125 Service Manual 808070
9 – Power Supply Component Replacement

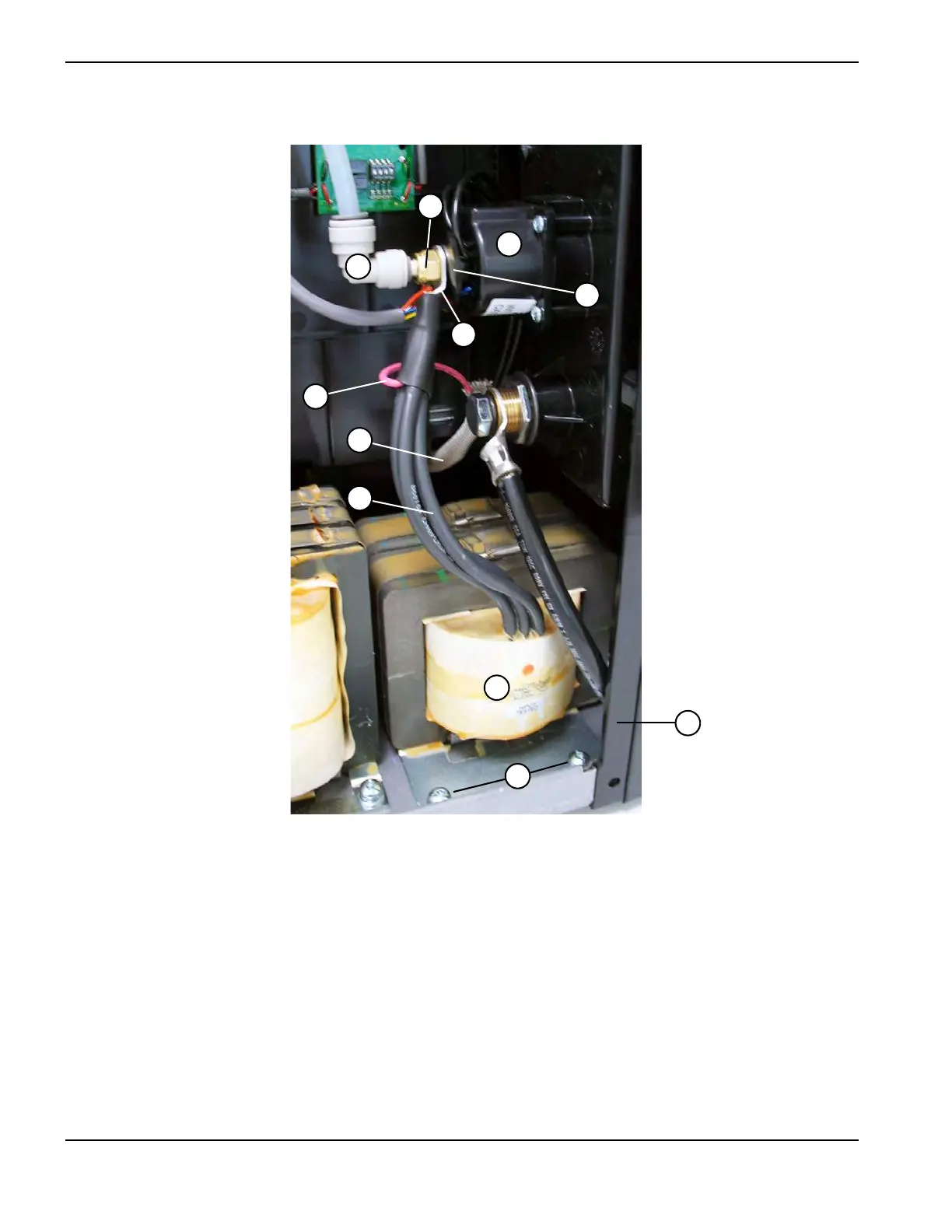

Figure 96
1
5
6
7
8
10
3
9
2
4
11
1 90° push-to-connect fitting
2 Electrode wire (red)
3 Protective sheathing
4 Short inductor wires (3)
5 Output inductor
6 Mounting screws (2)
7 Front panel
8 Ring terminal
9 Plastic washer
10 Quick disconnect housing
11 Brass nut

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
