Hypertherm Powermax 125 Service Manual

246 Powermax125 Service Manual 808070
9 – Power Supply Component Replacement
7. Lift the transformer out of the power supply while carefully guiding the transformer wires through the opening in the
bottom of the center panel.

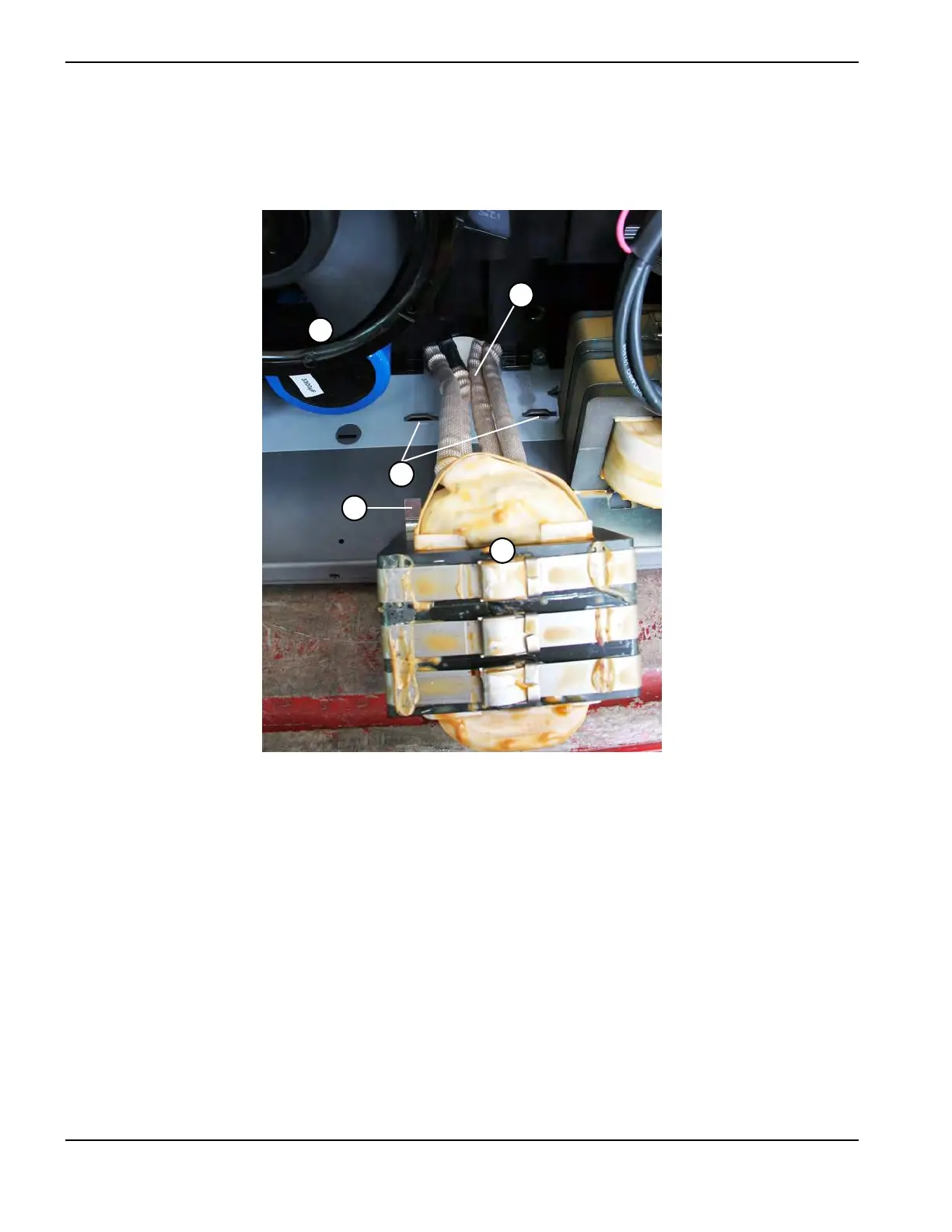

Figure 101
1
4
3
5
2
1 Bottom of fan
2 Slots in base
3 Transformer tab
4 Transformer
5 Transformer wires (4)

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
