Chapter 3. Systems management 97

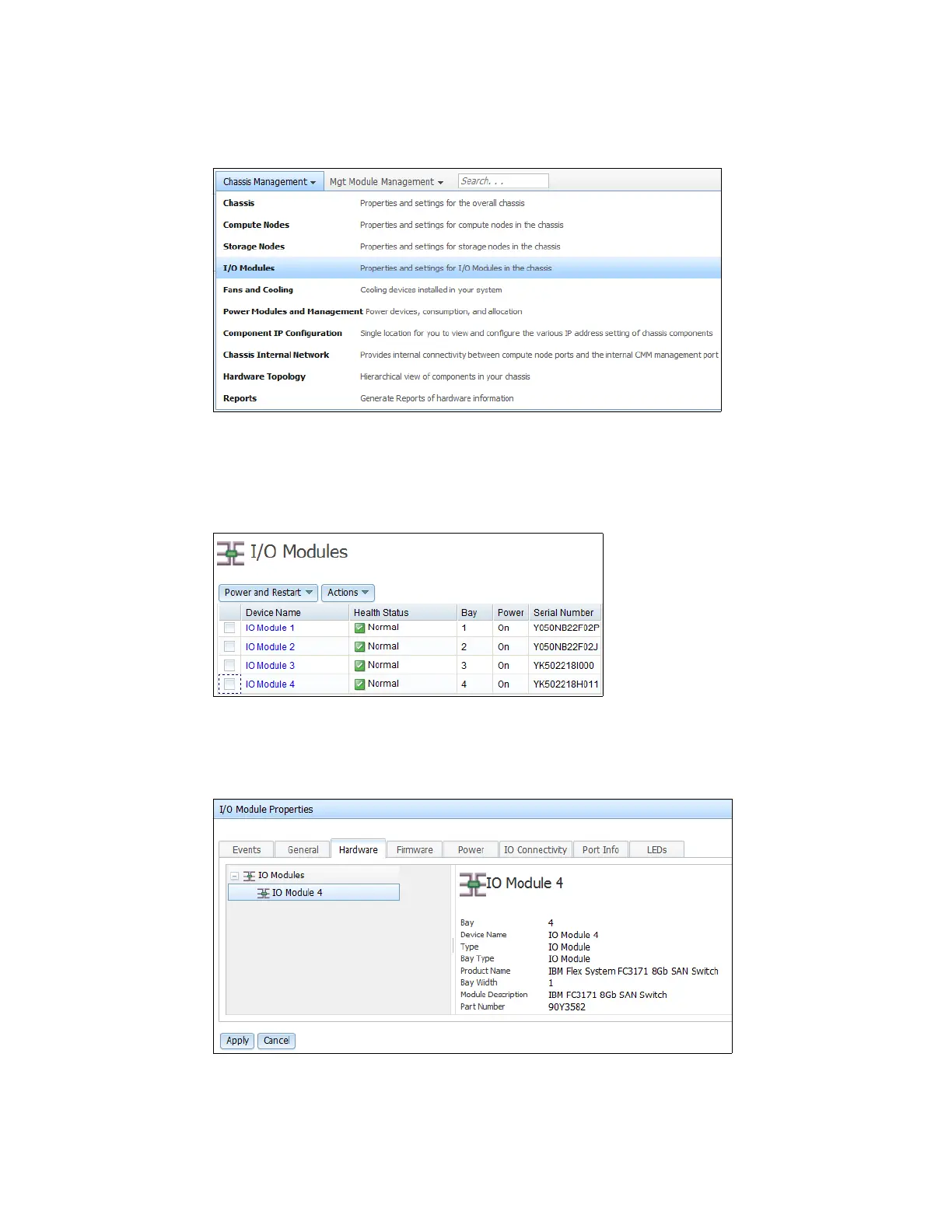

To access the properties and configuration of I/O modules through IBM Flex System Chassis
Management Module, click Chassis Management
I/O Modules, as shown in Figure 3-10.
Figure 3-10 CMM - Accessing I/O modules
The next view shows the available I/O modules in IBM Flex System. It also gives options to
Power and Restart the modules as well as the Actions that can be performed on them, as
shown in Figure 3-11.
Figure 3-11 Viewing I/O modules in CMM
Clicking an I/O module (Device Name) opens up a window showing its properties, click on
hardware Tab to see this properties as you can see in Figure 3-12.
Figure 3-12 Properties of an I/O module device
