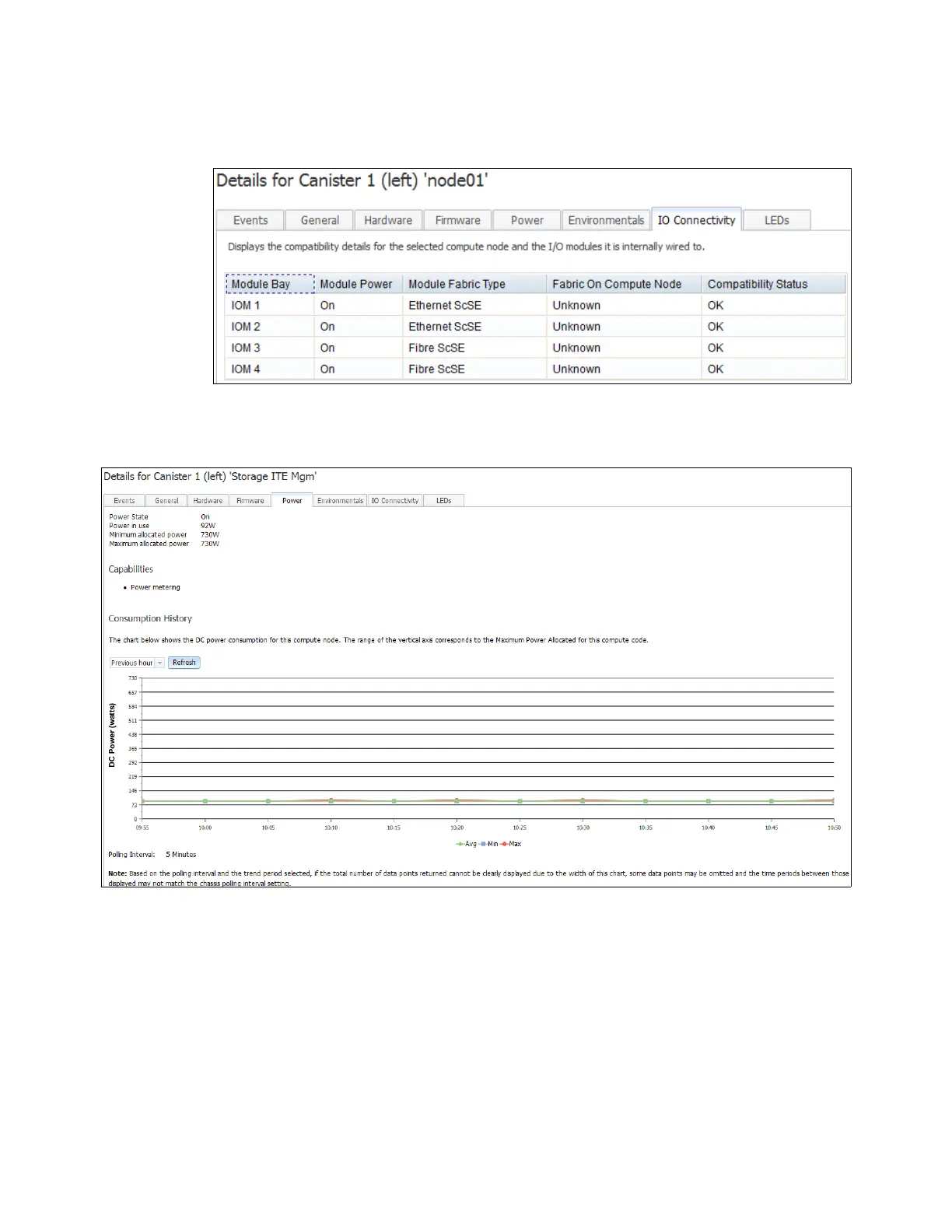

An important view for the storage canister is the I/O Connectivity tab, which shows the fabric
information related to the I/O modules in the chassis, as shown in Figure 3-23.
Figure 3-23 IO Connectivity
Figure 3-24 shows the DC Power consumption for the component.
Figure 3-24 Power consumption of selected chassis component
The IBM Flex System Chassis Management Module web interface has a menu structure at
the top of each page that gives easy access to most management functions. One of the most
frequently used menu items, Chassis Management, shows properties, settings, and various
views and reports regarding the nodes, modules, and other components in the chassis.
