IBM V7000 User Manual

140 IBM Flex System V7000 Storage Node Introduction and Implementation Guide

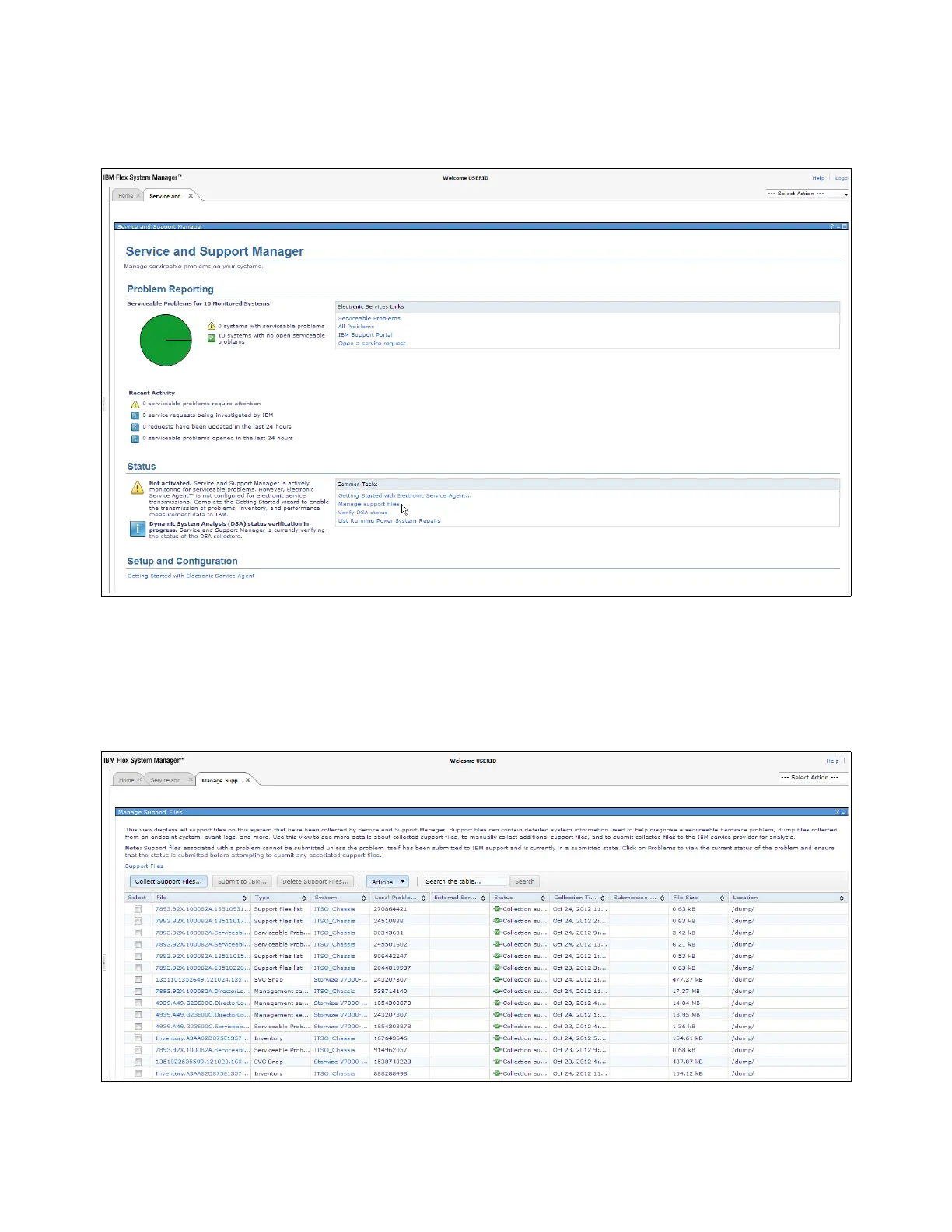

The SSM interface displays, which includes a comprehensive set of Service Management
tools in one tabular view, as shown in Figure 3-78.
Figure 3-78 SSM default view
To collect logs from IBM Flex System V7000 Storage Node using IBM Flex System Manager,
click Manage support files as shown in Figure 3-78.
The “Manage support files” page displays, and by choosing Collect support files, a new
window appears, where you can see logs already collected. as shown in Figure 3-79 .
Figure 3-79 IBM FSM - Manage support files

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
