Chapter 4. IBM Flex System V7000 Storage Node initial configuration 179

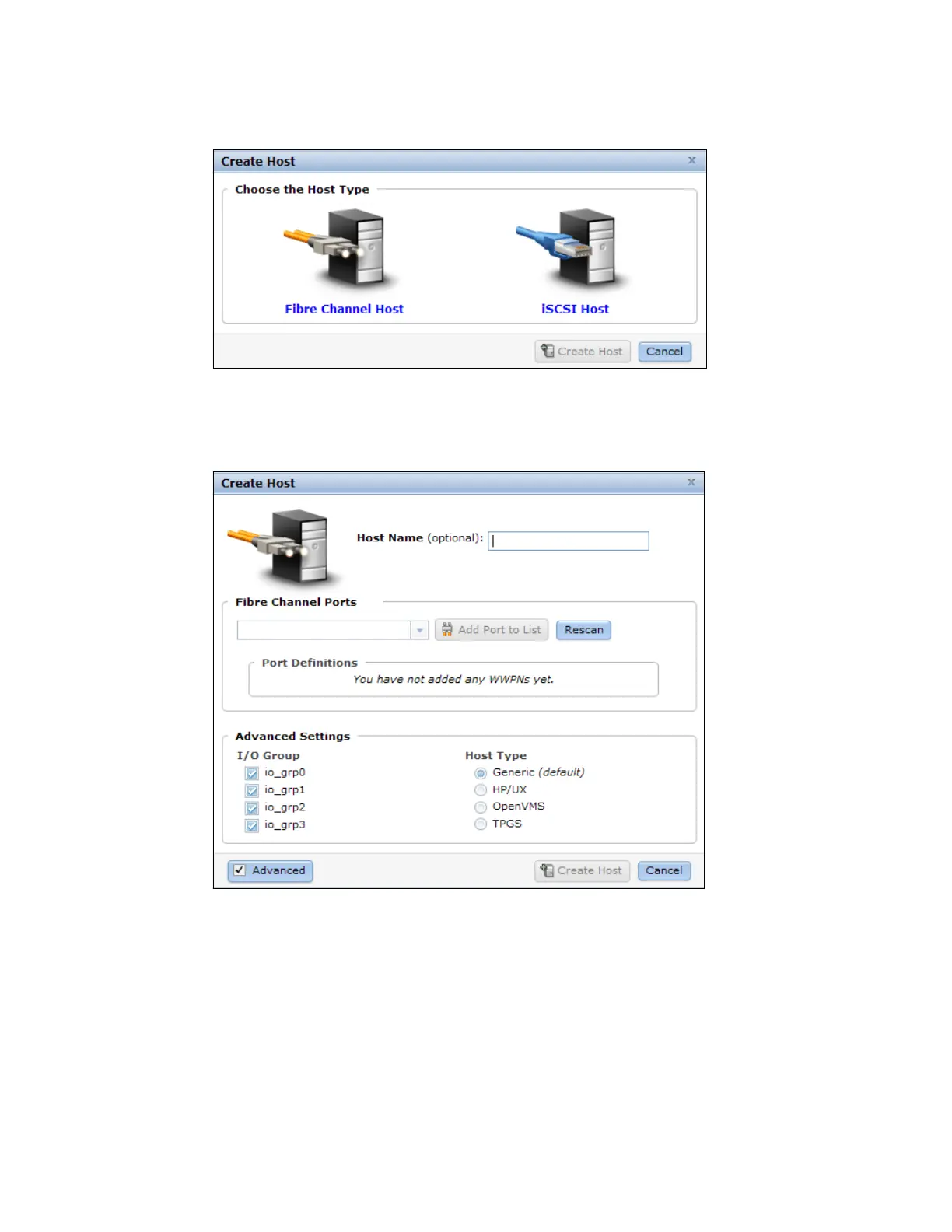

Select the Host type you want and click Create Host as shown in Figure 4-29.
Figure 4-29 Select the Host Type
Configure an optional Host Name, Fibre Channel ports, and other advanced settings if
host type Fibre Channel Host is selected, as shown in Figure 4-30.
Figure 4-30 Configure Fibre Channel Host Type

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
