278 IBM Flex System V7000 Storage Node Introduction and Implementation Guide

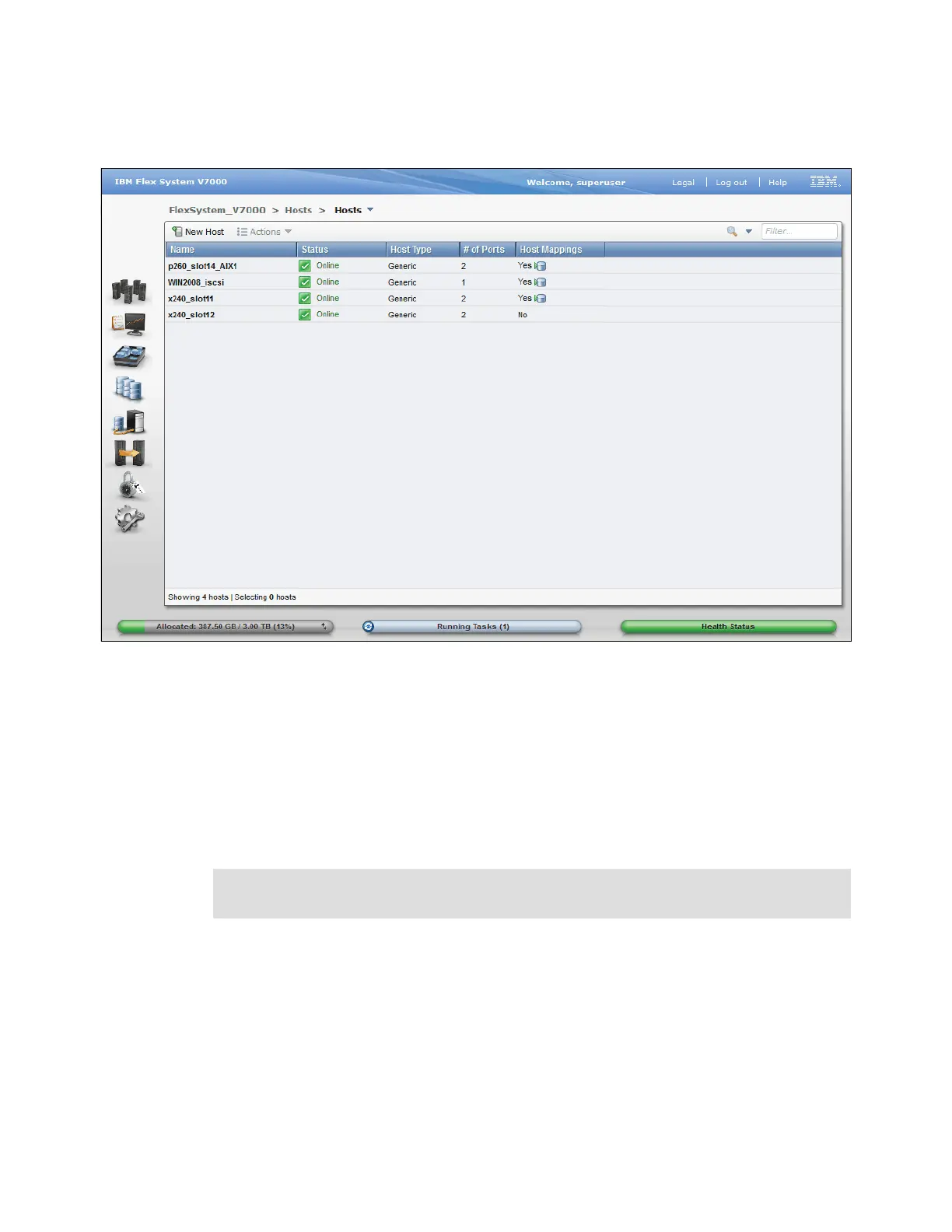

Figure 6-30 shows that we now have two configured hosts in our IBM Flex System V7000
Storage Node GUI.
Figure 6-30 The Hosts menu - two additional hosts created
We have now finished creating the Fibre Channel attached host as well as the iSCSI attached
host. The newly created iSCSI host might show Status with the color red and Offline. This
indicates that no traffic has yet travelled over the connection. To make it green and online, you
have to connect to the iSCSI attached host and from there discover the IBM Flex System
V7000 Storage Node portal.
A single host can contain both FC-ports as well as iSCSI ports, but in our example we created
two different hosts in the host section of the IBM Flex System V7000 Storage Node GUI
representing the same physical server.
Tip: The iSCSI host will not show online ports before the connection has been discovered
from the host which makes the connection active.

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
