320 IBM Flex System V7000 Storage Node Introduction and Implementation Guide

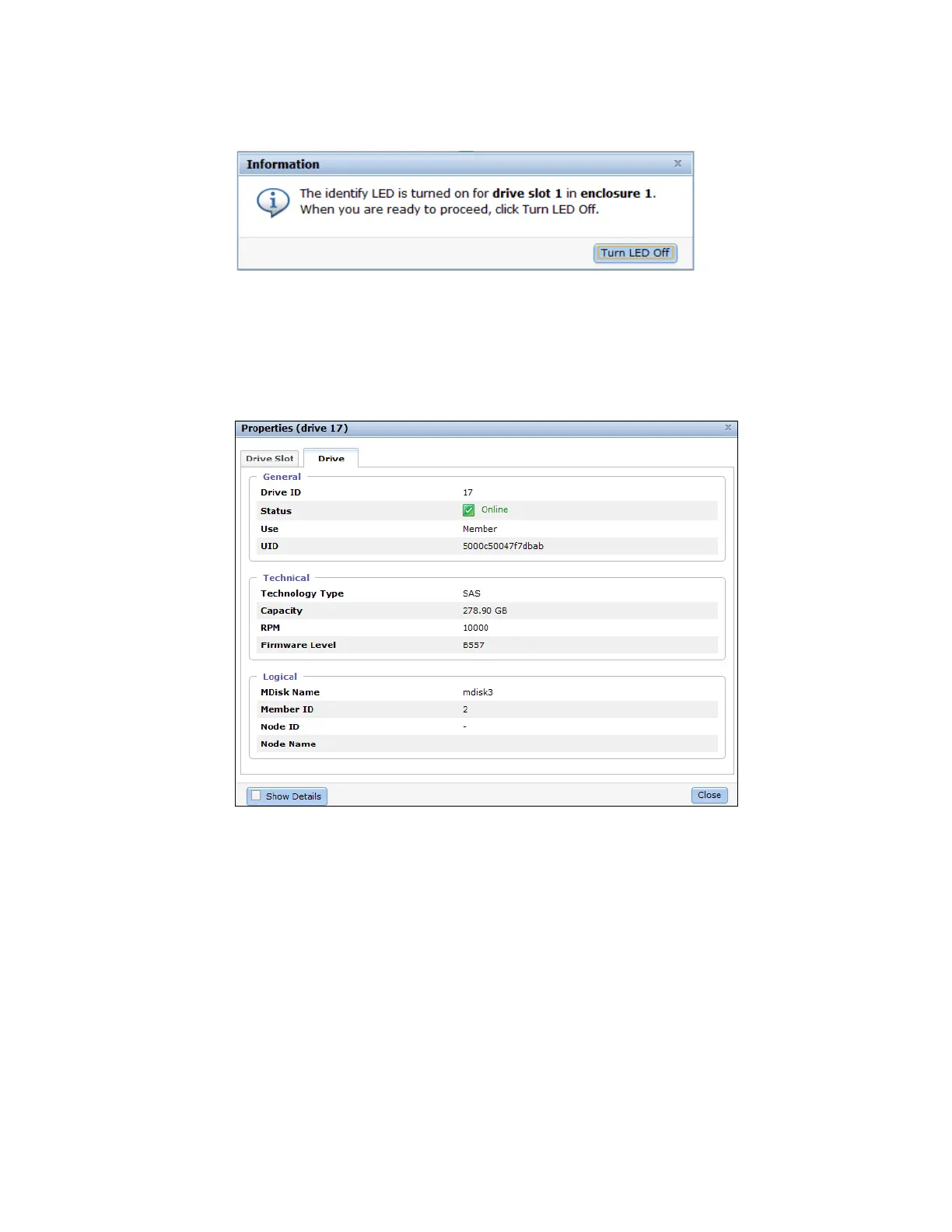

Figure 8-8 shows the information that is displayed when you click the Identify action.
Figure 8-8 Drive identification LED feature
Click Turn LED Off when finished working with it.
Clicking Show Dependent Volumes shows you the volumes that are dependent on the
drives. Clicking Properties in the Actions drop-down menu, or double-clicking the drive,
provides more information about the drives (Figure 8-9).
Figure 8-9 Properties tab with default format
