334 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
The width goals for the array can not be accomplished as too little drives are available.
Instead the system provisions the available drives in even sized MDisks. In our case we
get two MDisks with six disks and one with only five.
In the Capacity Optimized setup, all available Candidate disk drives are used, no
“unconfigured drives” remain, unlike in the Performance Optimized setup. Figure 8-22
shows an example of the capacity optimized setup.

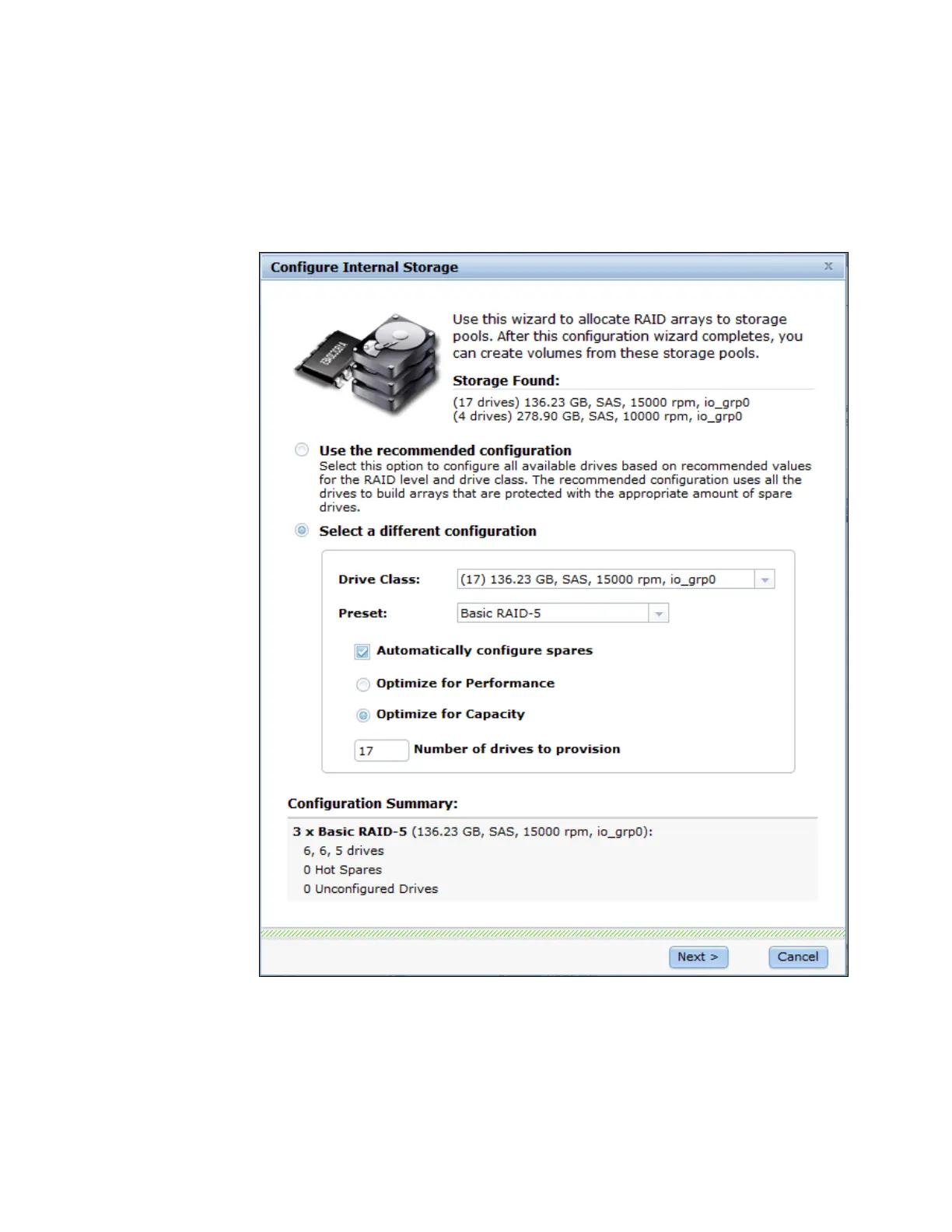

Figure 8-22 Capacity optimized setup
