IBM V7000

382 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
Creating FlashCopy mappings
You can create FlashCopy mappings through the FlashCopy window. Select the volume you
want to be the source volume for the FlashCopy mapping and click Advanced FlashCopy...
from the Actions drop-down menu (Figure 9-14).

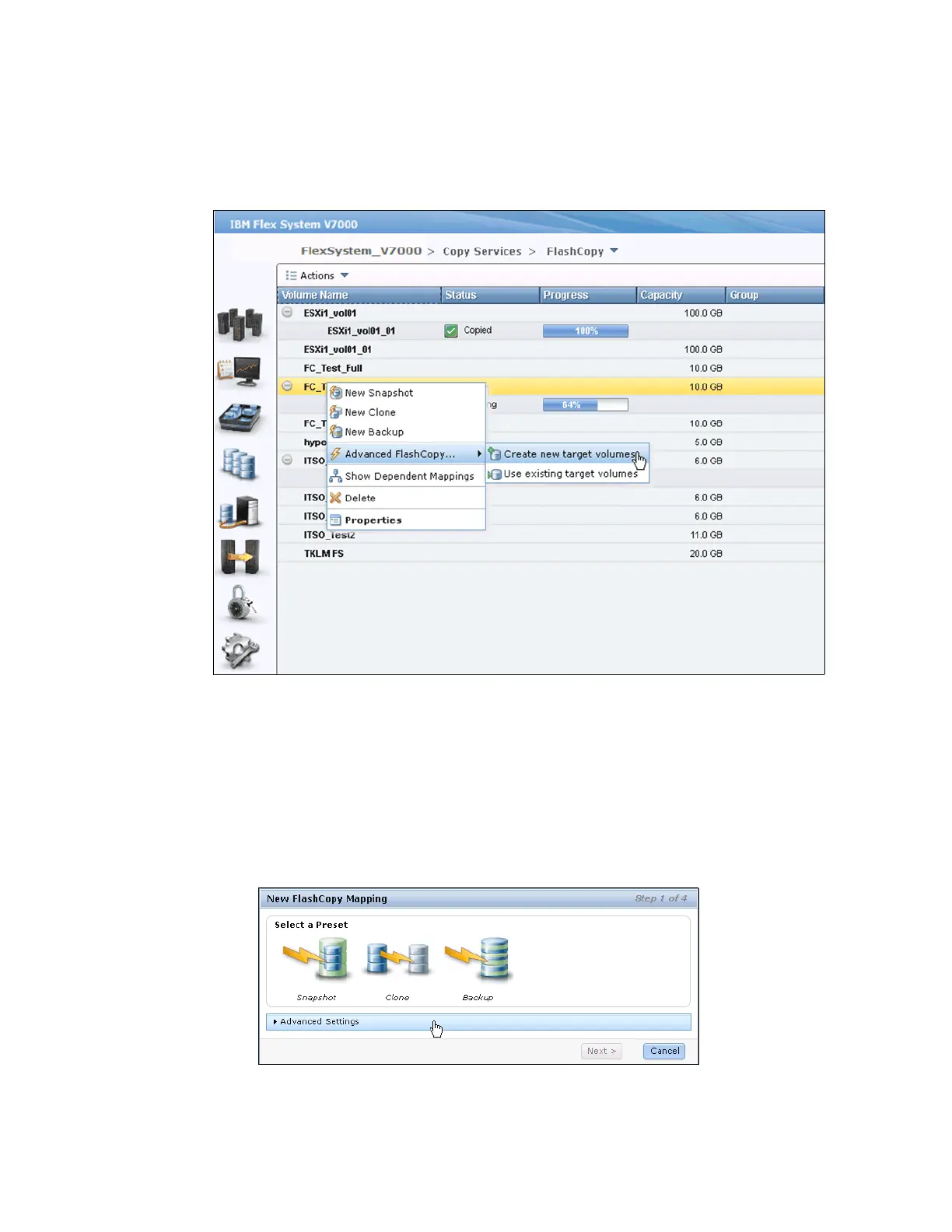

Figure 9-14 Create advanced FlashCopy
You have two options:
򐂰 Click Create new target volumes, if you have not created the target volume yet.
a. After you click Create new target volumes, the wizard lets you choose the preset, but
no matter which preset you choose, you can modify the setting of the FlashCopy
mapping. Choose one preset that has the most similar configuration to the one
required, and click Advanced Settings to make any appropriate adjustments on the
properties (Figure 9-15).
Figure 9-15 Choose a preset most similar to your requirement
Figure 9-16 shows the default setting.
