398 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
Adding FlashCopy mappings to a consistency group
Click Not in a Group to list all the FlashCopy mappings with no consistency group. You can
add FlashCopy mappings to a consistency group by selecting them and clicking the Move to
Consistency Group option from the Actions drop-down menu (Figure 9-47). Selections of a
range are performed by highlighting a mapping, pressing and holding the Shift key, and
clicking the last item in the range. Multiple selections can be made by pressing and holding
the Ctrl key and clicking each mapping individually.

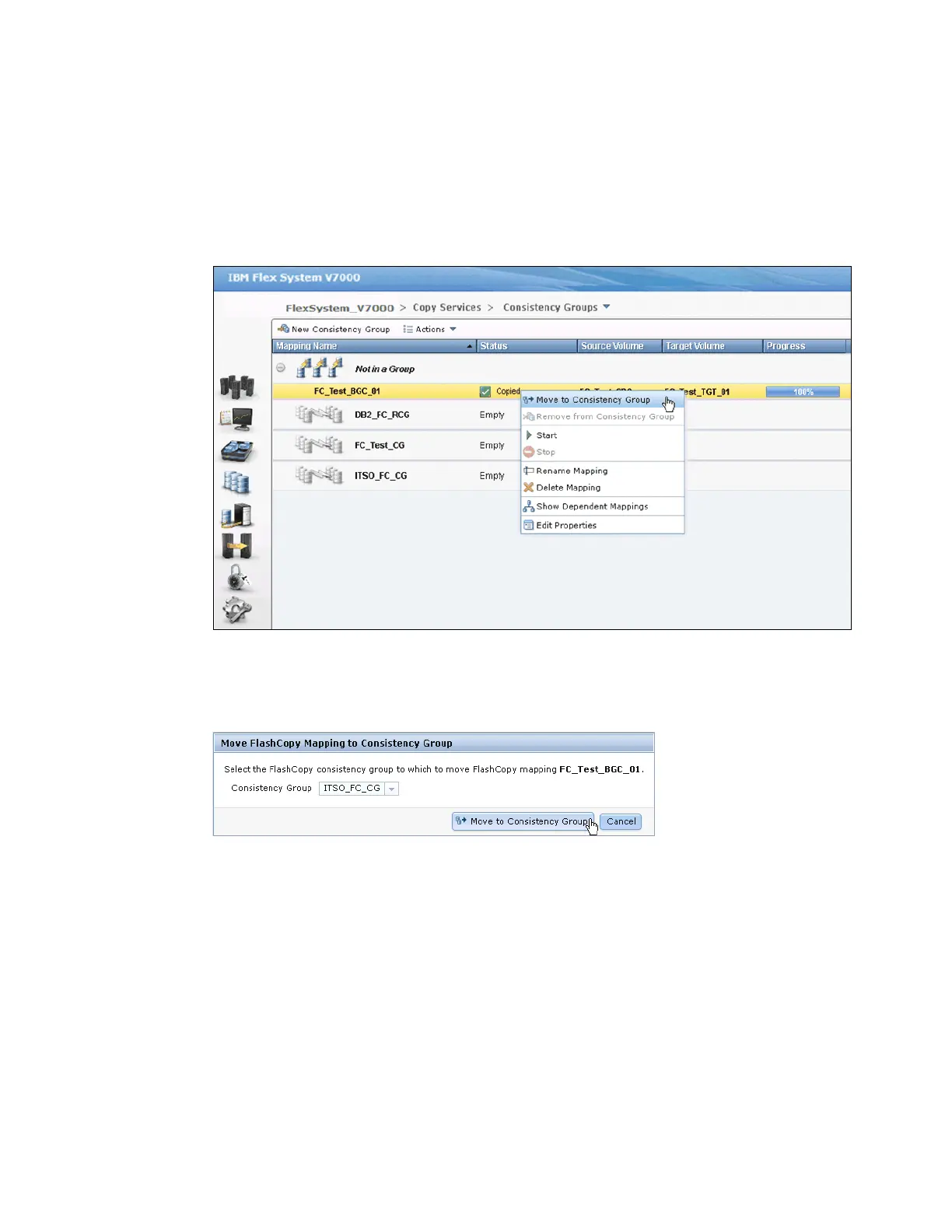

Figure 9-47 Select the FlashCopy mappings to add to a consistency group
You are prompted to specify which consistency group you want to move the FlashCopy
mapping into (Figure 9-48). Click Move to Consistency Group to continue.
Figure 9-48 Select consistency group
After the action completes, you find that the FlashCopy mappings you selected have been
removed from the Not In a Group list of the consistency group you chose.

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
