Chapter 11. SAN connections and configuration 477
Oct 26 14:26:04 fd8c:215d:178e:c0de:3640:b5ff:fe5c:f5ef NOTICE fcoe: FCOE
connection between VN_PORT 0e:fc:00:01:0d:00 and FCF 34:40:b5:5c:ee:03 has been
established.
Oct 26 14:26:04 fd8c:215d:178e:c0de:3640:b5ff:fe5c:f5ef NOTICE fcoe: FCOE
connection between VN_PORT 0e:fc:00:01:0c:00 and FCF 34:40:b5:5c:ee:02 has been
established.
The FCF component is now complete. To check our configuration is correct we can look at the
FCoE database where the port world wide names (PWWN) can be seen and so used for
zoning. Example 11-4 shows the output of the ISCLI show fcoe database command where
connections are established between IBM Flex System V7000 Storage Node on ports
INTA3+4 and the Compute Node 11 in bay 11 has FCoE configured and also established a
connection from port INTA11.
Example 11-4 Checking the FCoE database
Router(config)#show fcoe database
-----------------------------------------------------------------------
VLAN FCID WWN MAC Port
-----------------------------------------------------------------------
1002 010c00 50:05:07:68:05:04:02:50 0e:fc:00:01:0c:00 INTA3
1002 010d00 50:05:07:68:05:04:02:51 0e:fc:00:01:0d:00 INTA4
1002 010c01 10:00:5c:f3:fc:6e:30:01 0e:fc:00:01:0c:01 INTA11
Total number of entries = 3
-----------------------------------------------------------------------
Router(config)#
We can also confirm connectivity from IBM Flex System V7000 Storage Node by reviewing
the “System Details” option from the administration GUI. Figure 11-13 shows Canister 1
where the 10 Gb Ethernet port is active, detailing the Port World Wide Name (PWWN) or
WWPN in the screen captures shown next.

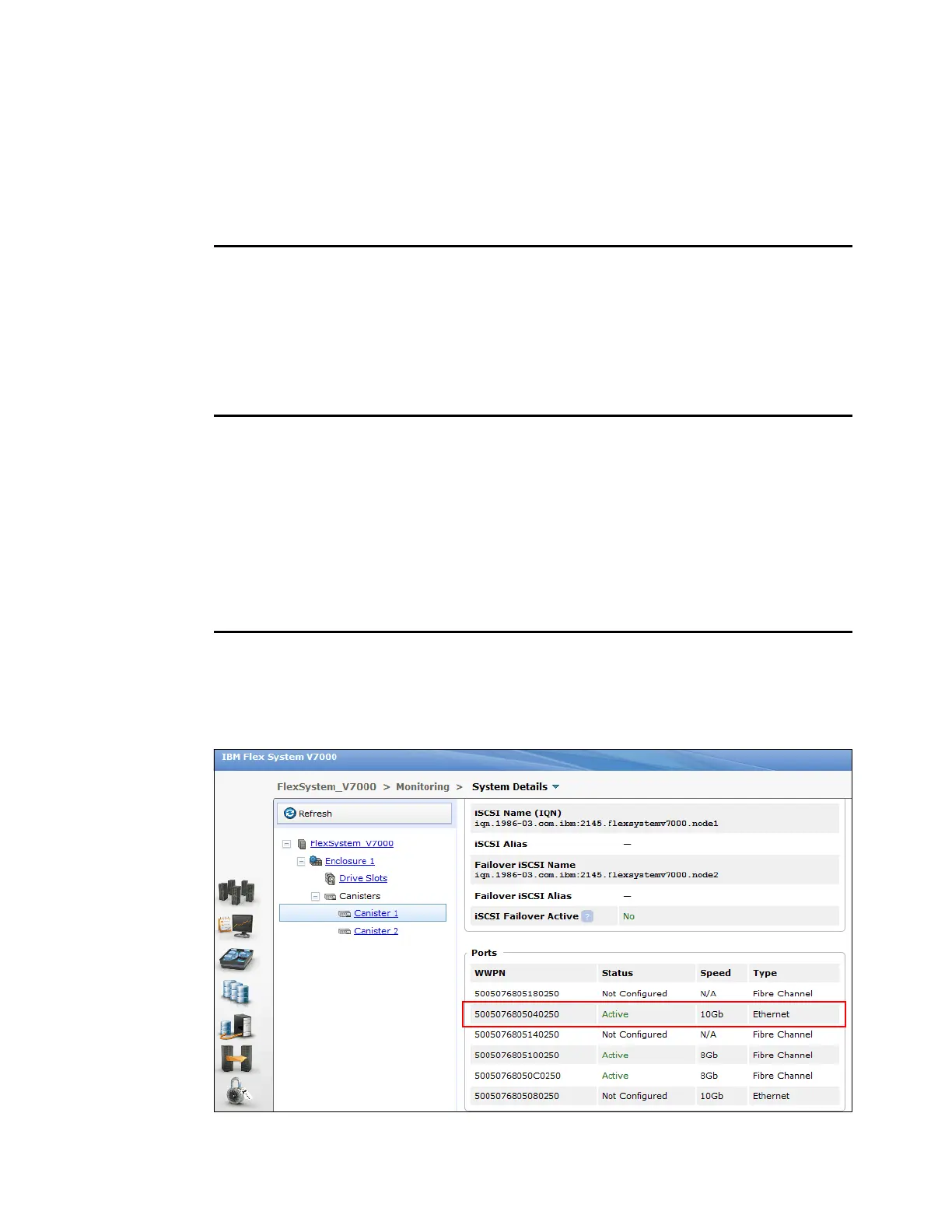

Figure 11-13 Active 10 Gb Ethernet on Canister 1
