478 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
Figure 11-14 shows the active Ethernet port for Canister 2 of IBM Flex System V7000
Storage Node. By comparing the canister PWWNs with Example 11-4 on page 477, you can
see that Canister 1 uses port INTA3 and Canister 2 uses INTA4.

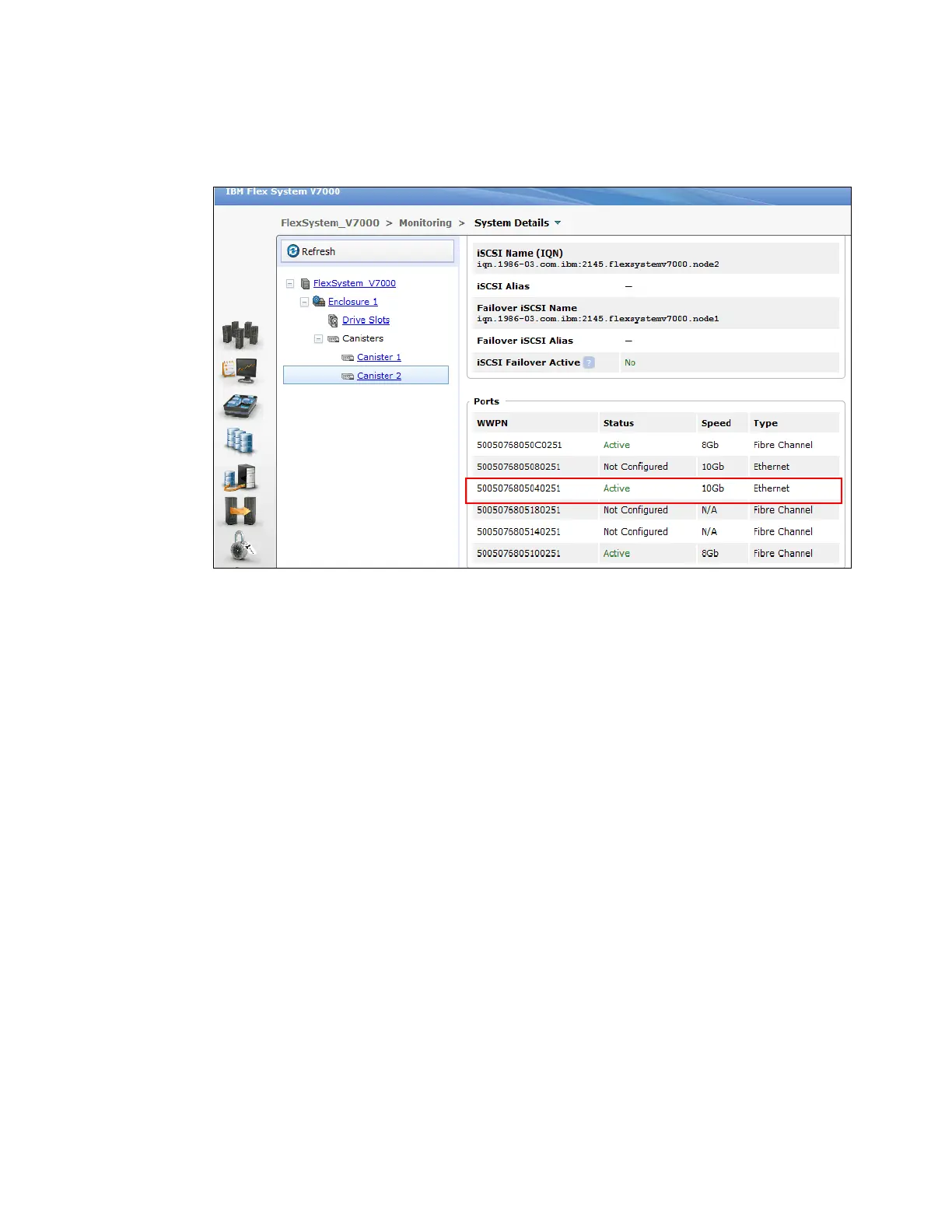

Figure 11-14 Active 10 Gb Ethernet on Canister 2
Creating FCoE zoning with the GUI
Using CN4093 GUI by creating a zone which will include PWWNs of the host - Compute
Node 11 and the storage controller - IBM Flex System V7000 Storage Node the two end
points will be able to connect and storage can be accessed by the O/S platform residing on
Compute Node 11.The following zoning steps are included:
Create Alias
Create Zone
Create Zoneset
Activate Zoneset
