Chapter 11. SAN connections and configuration 485

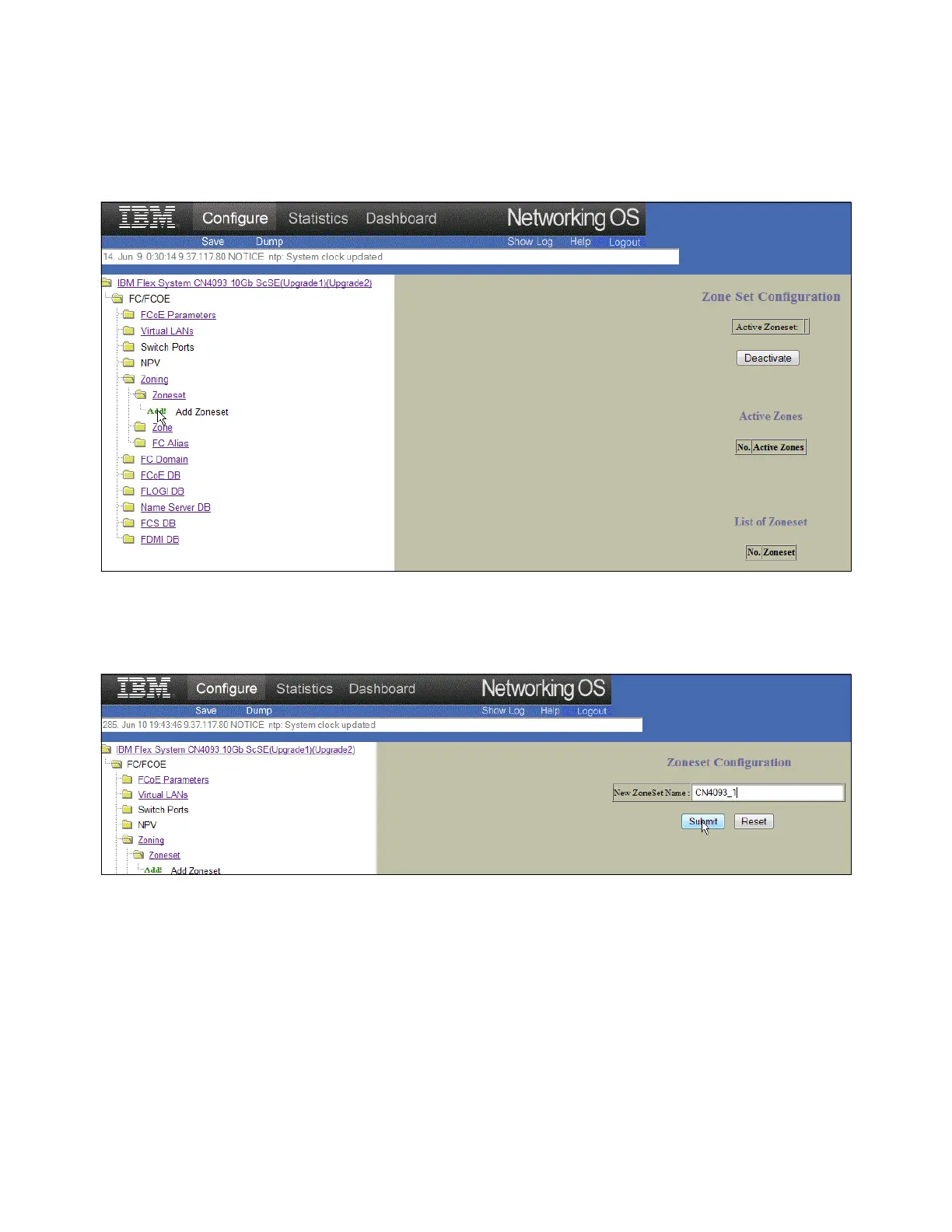

Then go to the Zoneset folder, expand it and click on Add to create a new Zoneset as show in
Figure 11-28 on page 485.
Figure 11-28 Zoneset Configuration
Write the name of the new Zoneset, in our example CN4093_1 and click on Submit as shown
in Figure 11-29.
Figure 11-29 Zoneset name
Click now on the new Zoneset you have just created as shown in Figure 11-30 on page 486.
