IBM V7000 User Manual

Chapter 12. Host configuration 529
The storage disk is available and ready to use for your Windows 2008 R2 server using iSCSI
attachment.
Verifying Microsoft iSCSI SW initiator setup

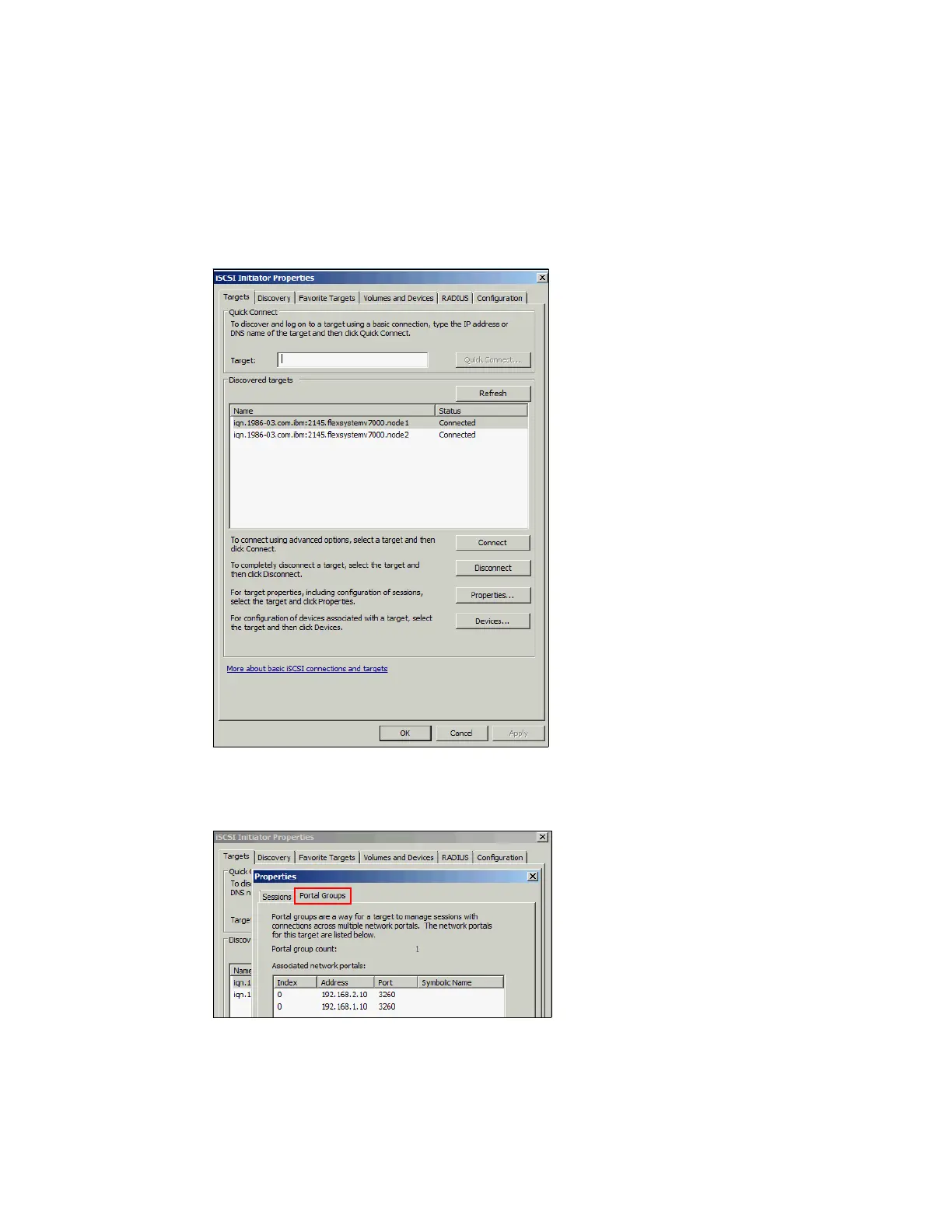

From the Windows server iSCSI Initiator Applet menu, Figure 12-26 shows the IBM Flex
System V7000 Storage Node canister IQNs defined. From this window, click the Properties
box with the mouse for node1.
Figure 12-26 Canister IQN define in iSCSI initiator
Both canister IP addresses for node1 from the Portal Groups tab are shown in Figure 12-27.
Figure 12-27 Portal Groups tab shows both IP addresses of canisters

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
