532 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
On the second iSCSI target, Disk 1 has two more devices, Target 2 and Target 3, confirming
four paths to the mapped LUN from IBM Flex System V7000 Storage Node. After the LUN
was mapped, the Auto Configure box was clicked from the Volumes and Devices tab as
shown in Figure 12-32.

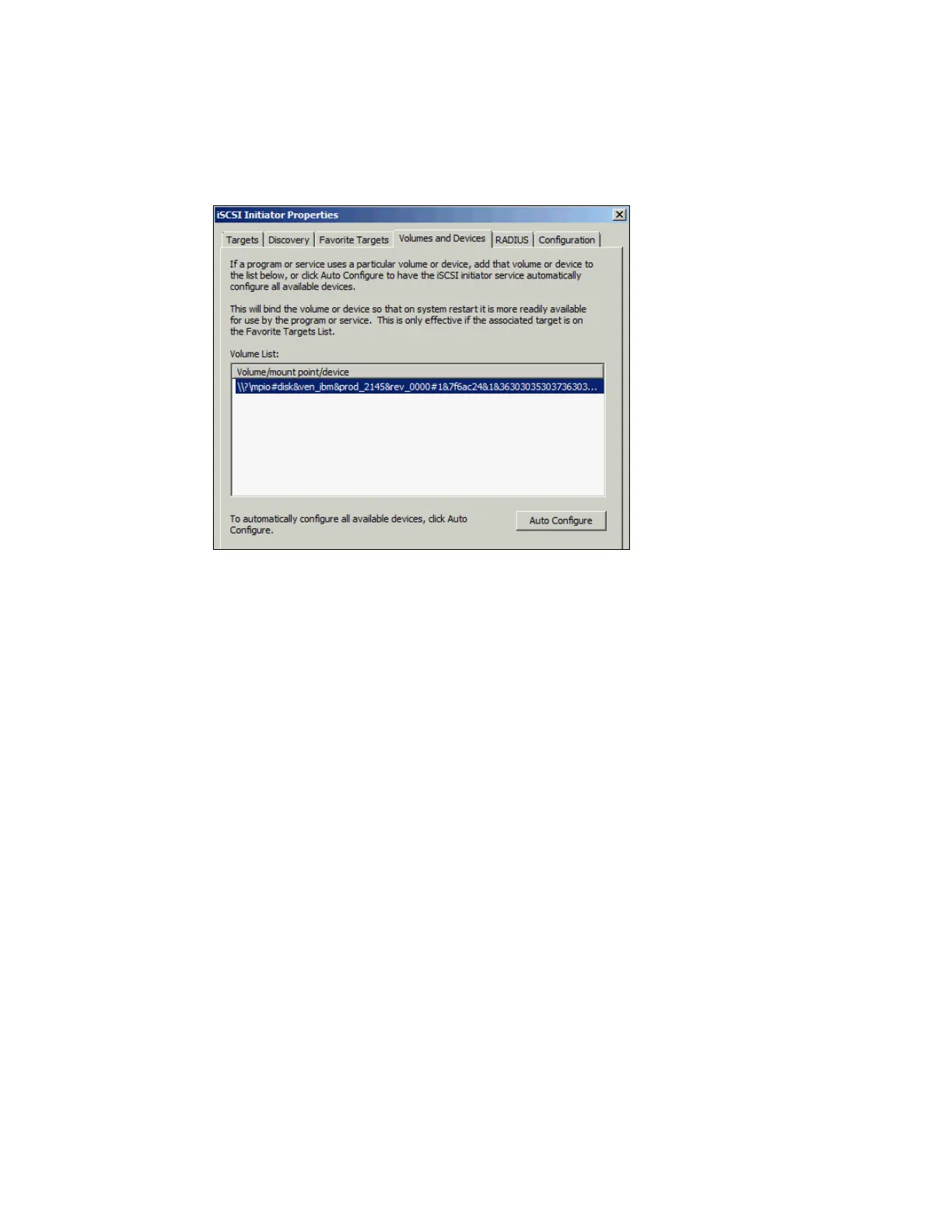

Figure 12-32 Single device identified in tab
The verification of the iSCSI setup is now complete.
iSCSI authentication
Authentication of the host server from the IBM Flex System V7000 Storage Node system is
optional and is disabled by default.
The user can choose to enable Challenge Handshake Authentication Protocol (CHAP)
authentication, which involves sharing a CHAP secret between the IBM Flex System V7000
Storage Node system and the host.
IBM Flex System V7000 Storage Node, as authenticator, sends a challenge message to the
specific server (peer). The server responds with a value that is checked by IBM Flex System
V7000 Storage Node. If there is a match, IBM Flex System V7000 Storage Node
acknowledges the authentication. If not, IBM Flex System V7000 Storage Node will terminate
the connection and will not allow any I/O to volumes.
A CHAP secret can be assigned to each IBM Flex System V7000 Storage Node host object.
The host must then use CHAP authentication to begin a communications session with a node
in the system. A CHAP secret can also be assigned to the system.
Because iSCSI can be used in networks where data security is a concern, the specification
allows for separate security methods. You can set up security, for example, through a method
such as IPSec, which is transparent for higher levels such as iSCSI because it is implemented
at the IP level. Details regarding securing iSCSI can be found in RFC3723, Securing Block
Storage Protocols over IP, which is available at this website:
http://tools.ietf.org/html/rfc3723
