3 FTP Client Function
28-34 WindO/I-NV4 User’s Manual

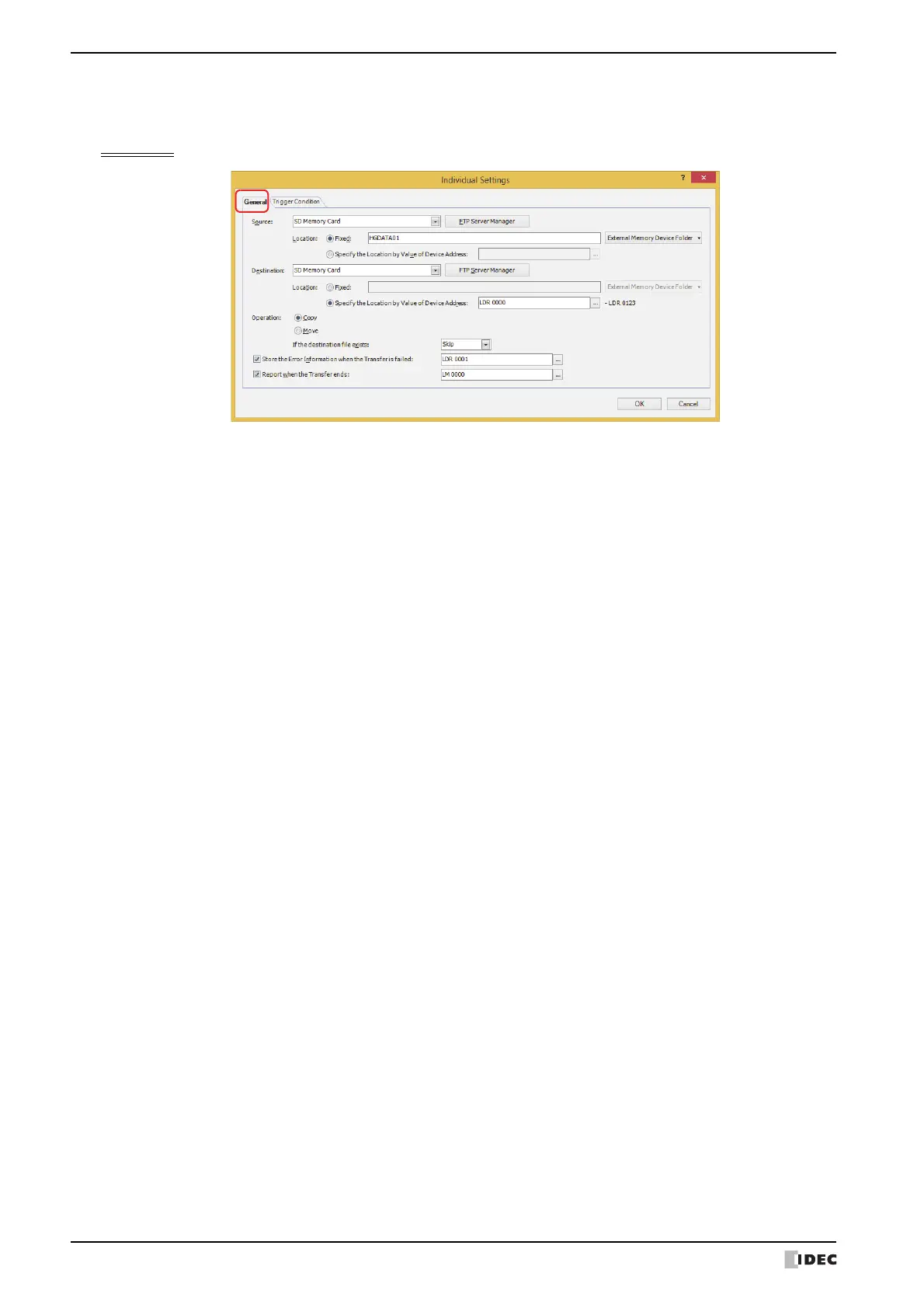

Individual Settings Dialog Box
Registers or changes the settings for the selected number.
General Tab
Source
Select the source external memory device or the FTP server where the files to be copied or moved are stored from the
following items.
SD Memory Card
*1
, USB Flash Drive, (FTP server)
The No.+.(period)+Server Name of the FTP server specified in the FTP Server Manager is displayed.
Example: No. is 1 and Server Name is TestServer1
1.TestServer1
*1 HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F only
FTP Server Manager: The settings of FTP server can be added or changed. Click this button to display the FTP
Server Manager. For details, refer to “FTP Server Manager” on page 28-29.
Location: Selects the method to specify the save location of source files to copy or move.
Fixed: Specify the save location of the target folder or file path as a string. The maximum number is 247
characters.
Example: Copy or move files to the “ALARMLOG” folder under “HGDATA01” folder on the external
memory device
HGDATA01\ALARMLOG
External Memory Device Folder: Click this button to enter the configured content of the External
Memory Device Folder in the External Memory Device tab
on the Project Settings dialog box.
Click on to the right on the External Memory Device
Folder button, and then select the item on the list to enter the
subfolder.
